Sensors > Temperature and Humidity Sensors

TC622VAT - Microchip

Single Trip Point Switch/Digital Sensor, 5Cel, Rectangular, 5 Pin, Through Hole Mount

Technical Details

Projected EOL Date	2034-01-01
Accuracy	1%
Case/Package	TO-220
Country of Assembly	China
Country of Fabrication	United States of America
Country of Origin	China
Export Control Classification Number (ECCN) Code	EAR99
Height	9.02mm
Harmonized Tariff Schedule (HTS) Code	8542.39.0060
Introduction Date	2002-01-01
Lead Free	Lead Free
Length	10.67mm
Lifecycle Status	Production
Manufacturer Lifecycle Status	REL
Max Operating Temperature	125°C
Max Supply Voltage	18V
Max Supply Voltage (DC)	18V
Min Operating Temperature	-40°C
Min Supply Voltage	4.5V
Min Supply Voltage (DC)	4.5V
Mount	Surface Mount, Through Hole
Number of Pins	5
Operating Supply Current	600µA
Output Current	600µA
Output Type	ANALOG, Digital, Voltage
Packaging	Bulk
Radiation Hardening	No
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000, 8542390000\|8542390000\|8542390000, 8542390000\|8542390000\|8542390000\|8542390000
Sensor Type	Temperature
Termination	Through Hole
Width	4.83mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

Images

Microchip TC622VAT | RS

RS

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

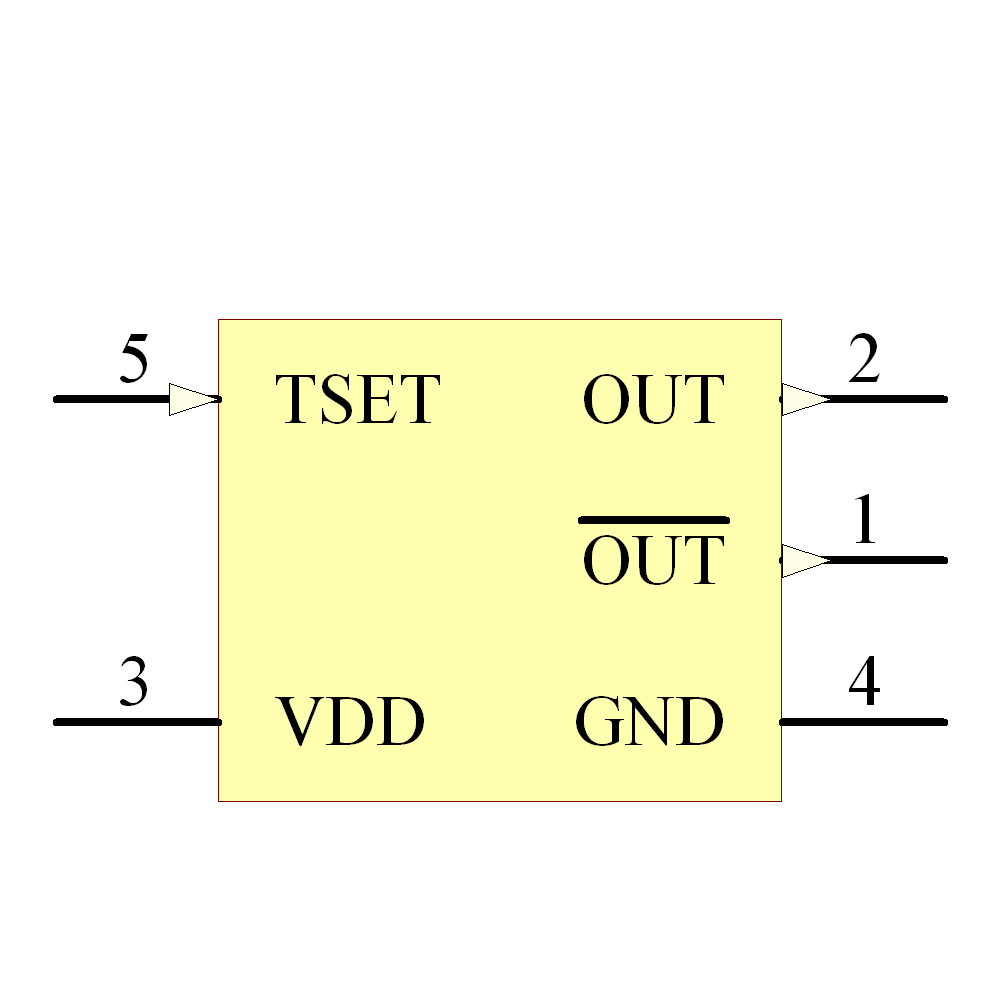

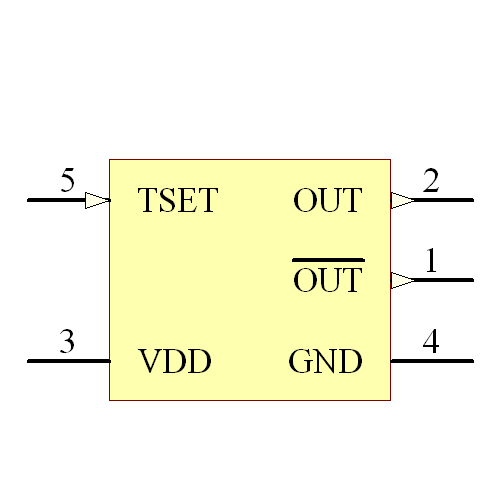

TC622VAT Symbol - Microchip

TC622VAT Symbol - Microchip

TC622VAT Symbol - Microchip

TC622VAT Symbol - Microchip

‹ ›

Footprint

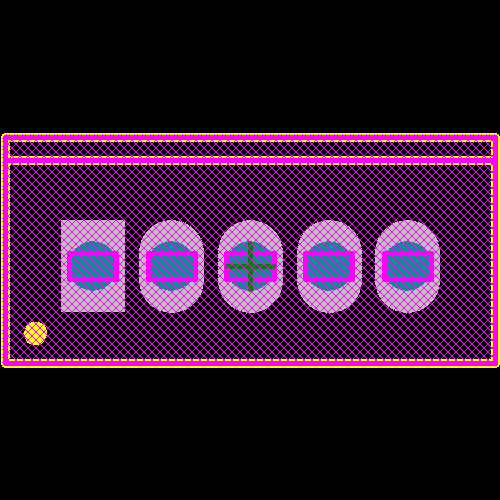

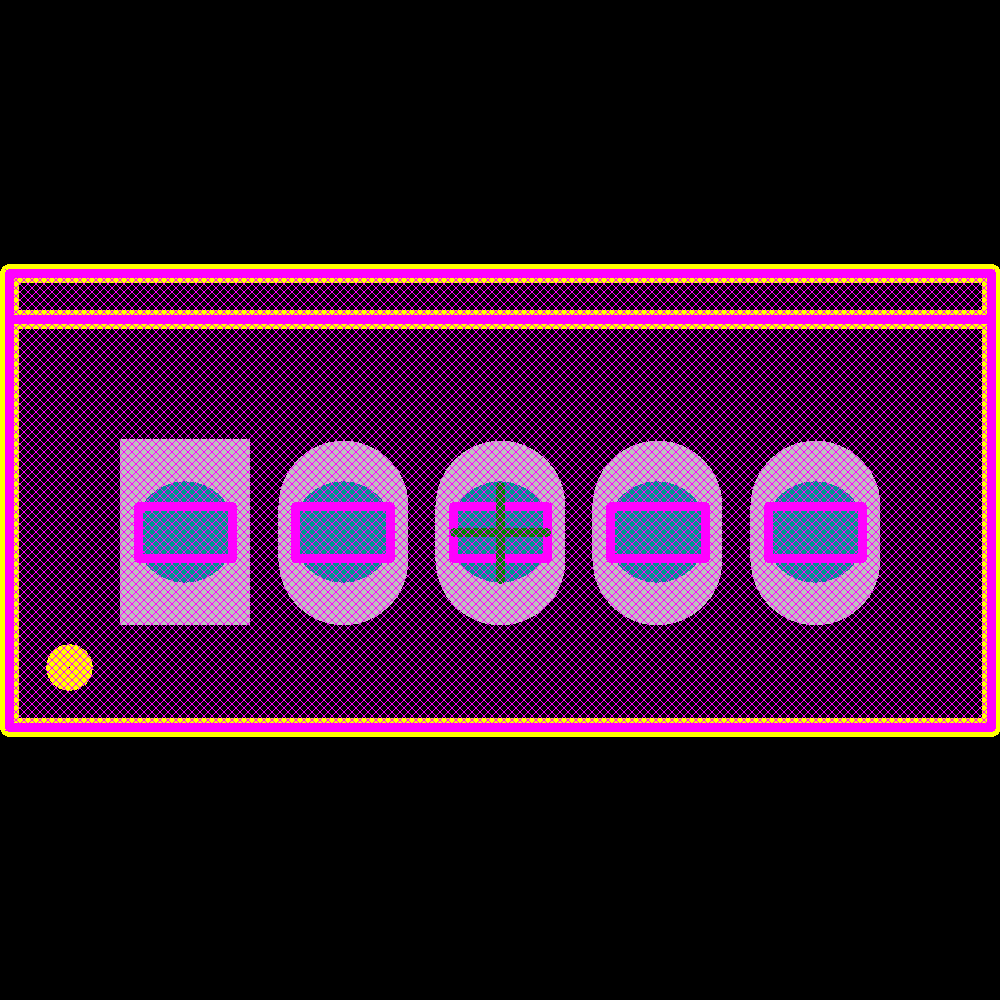

TC622VAT Footprint - Microchip

TC622VAT Footprint - Microchip

TC622VAT Footprint - Microchip

TC622VAT Footprint - Microchip

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Microchip	TC622EAT	Production
Microchip	TC622COA	Production
Microchip	TC622COA713	Production
Microchip	TC622VOA	Production
Microchip	TC622EPA	Production
Microchip	TC622VPA	Production
Microchip	TC622EOA	Production
Microchip	TC622EOA713	Production
Microchip	TC622VOA713	Production
onsemi	NCT22DR2	Obsolete

See more alternatives See less alternatives
