MPXV5004DP - NXP Semiconductors
NXP MPXV5004DP.. Pressure Sensor, Differential, 1 V/kPa, 0 kPa, 3.92 kPa, 4.75 V, 5.25 V
Technical Details
| Accuracy | 6.25% |
| Ambient Temperature Range High | 85°C |
| Case/Package | SMD/SMT |
| China RoHS | Compliant |
| Current Rating | 10mA |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Halogen Free | Not Halogen Free |
| Height | 9.65mm |
| Harmonized Tariff Schedule (HTS) Code | 8542.39.00.01 |
| Introduction Date | 2000-07-24 |
| Lead Free | Lead Free |
| Length | 12.07mm |
| Lifecycle Status | Production |
| Linearity | 2.5% |
| Max Operating Temperature | 85°C |
| Max Pressure | 2.32PSI |
| Max Supply Voltage | 5.25V |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Nominal Supply Current | 10mA |
| Number of Pins | 8 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 5V |
| Output Type | ANALOG, Analog Voltage |
| Output Voltage | 4.9V |
| Port Style | Barbed |
| Pressure Type | Differential |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| RoHS | Compliant |
| Schedule B | 8542390000|8542390000|8542390000|8542390000|8542390000 |
| Termination | PCB |
| Weight | 2.222886g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

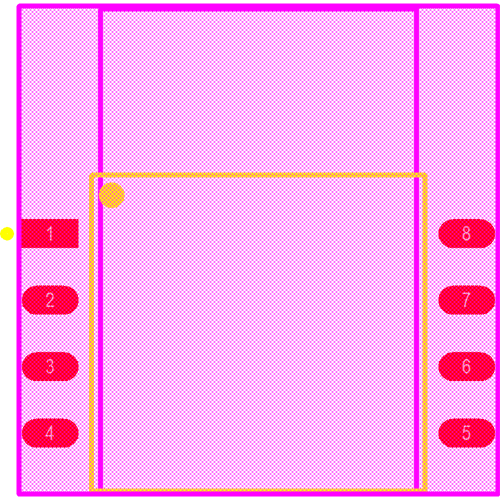

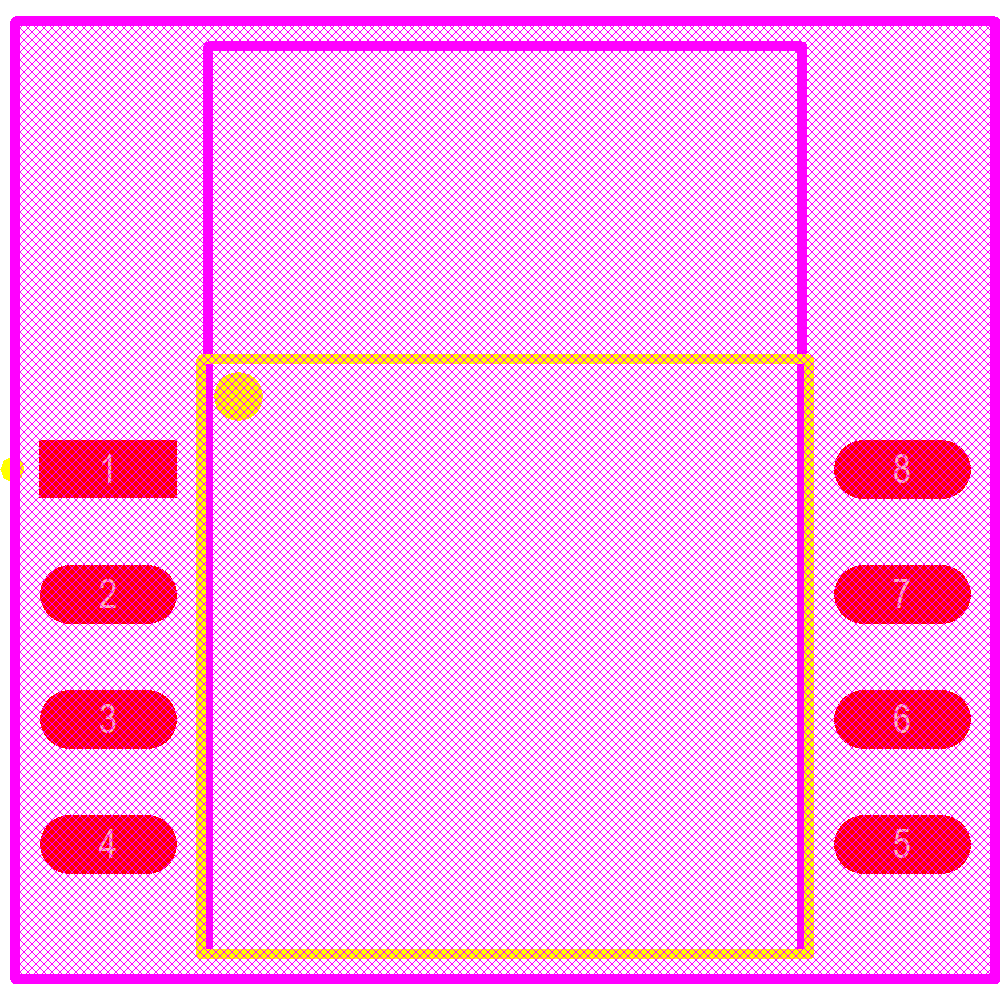

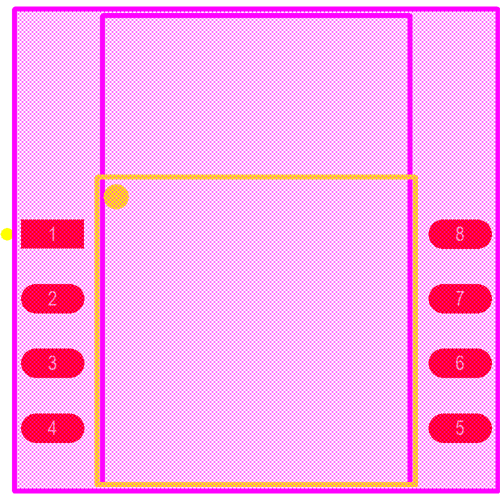

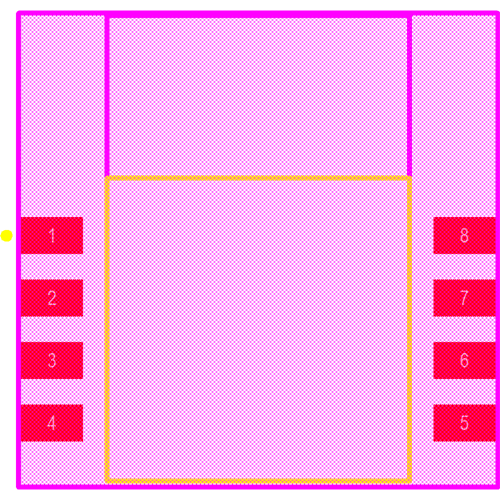

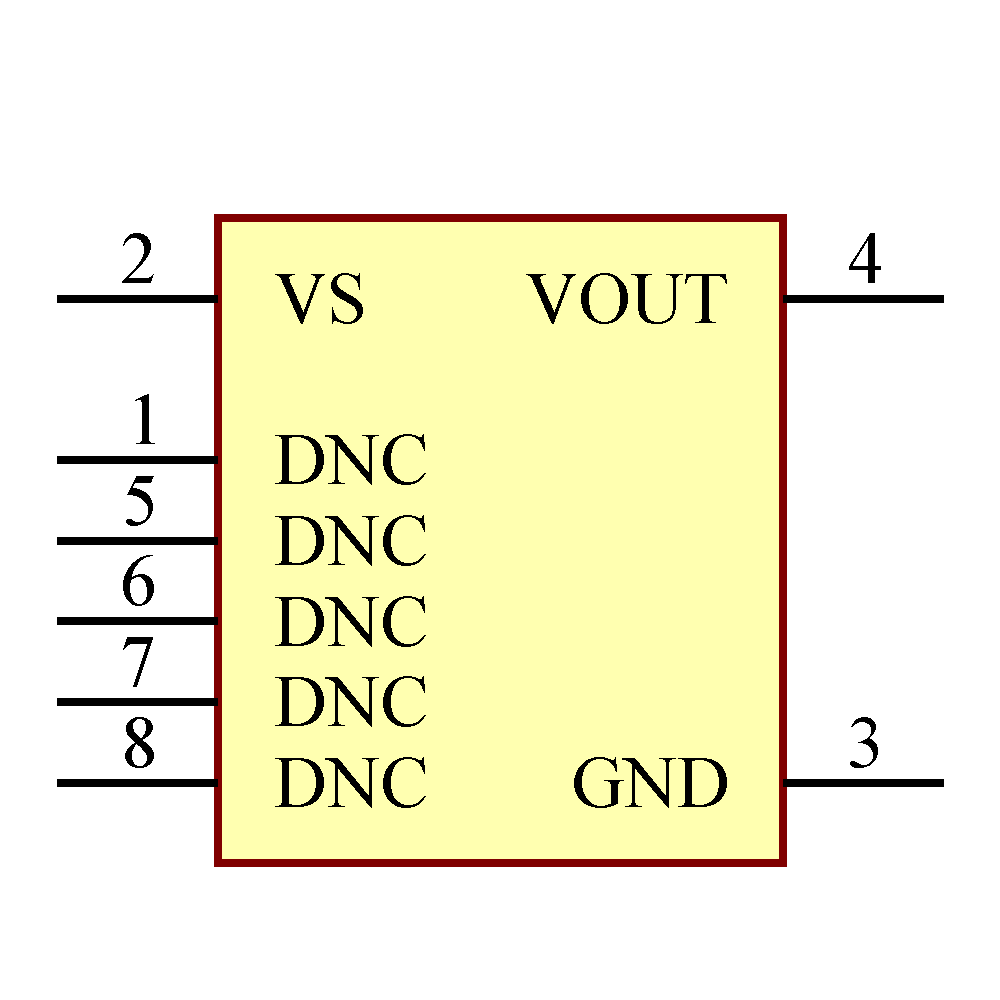

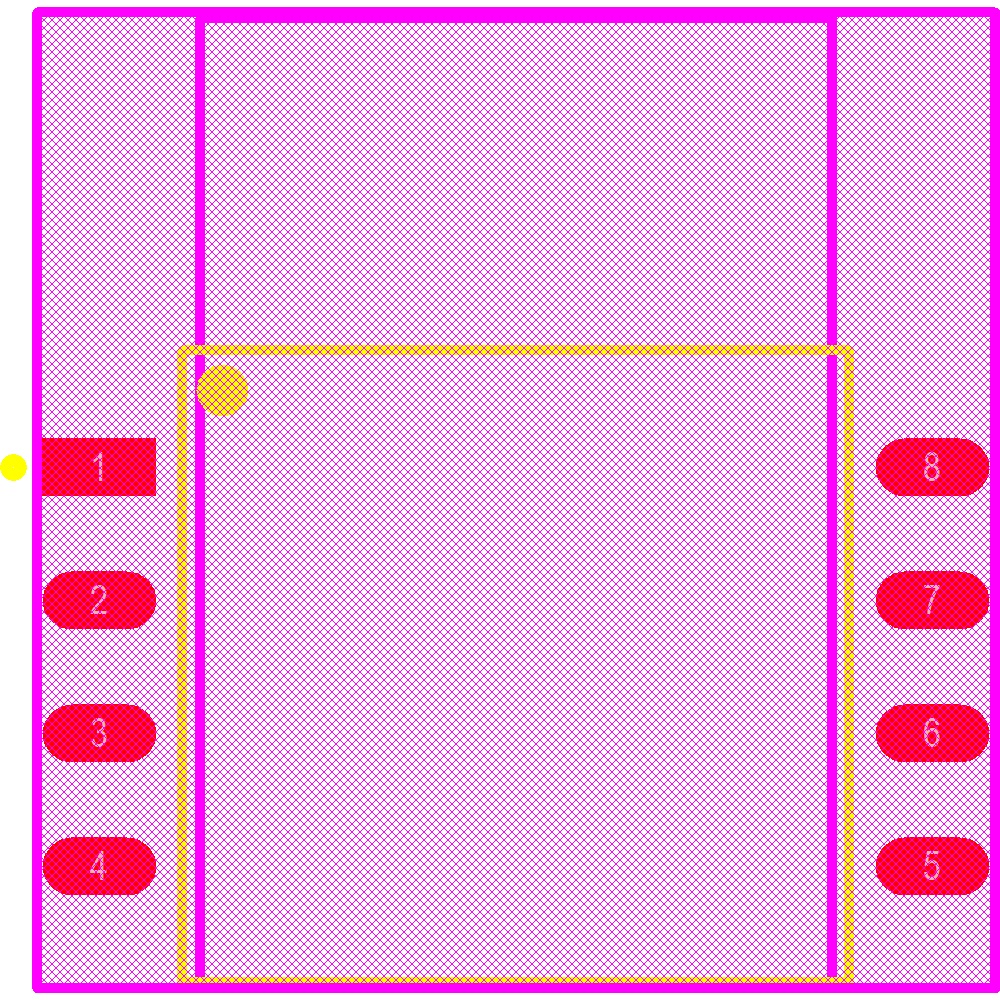

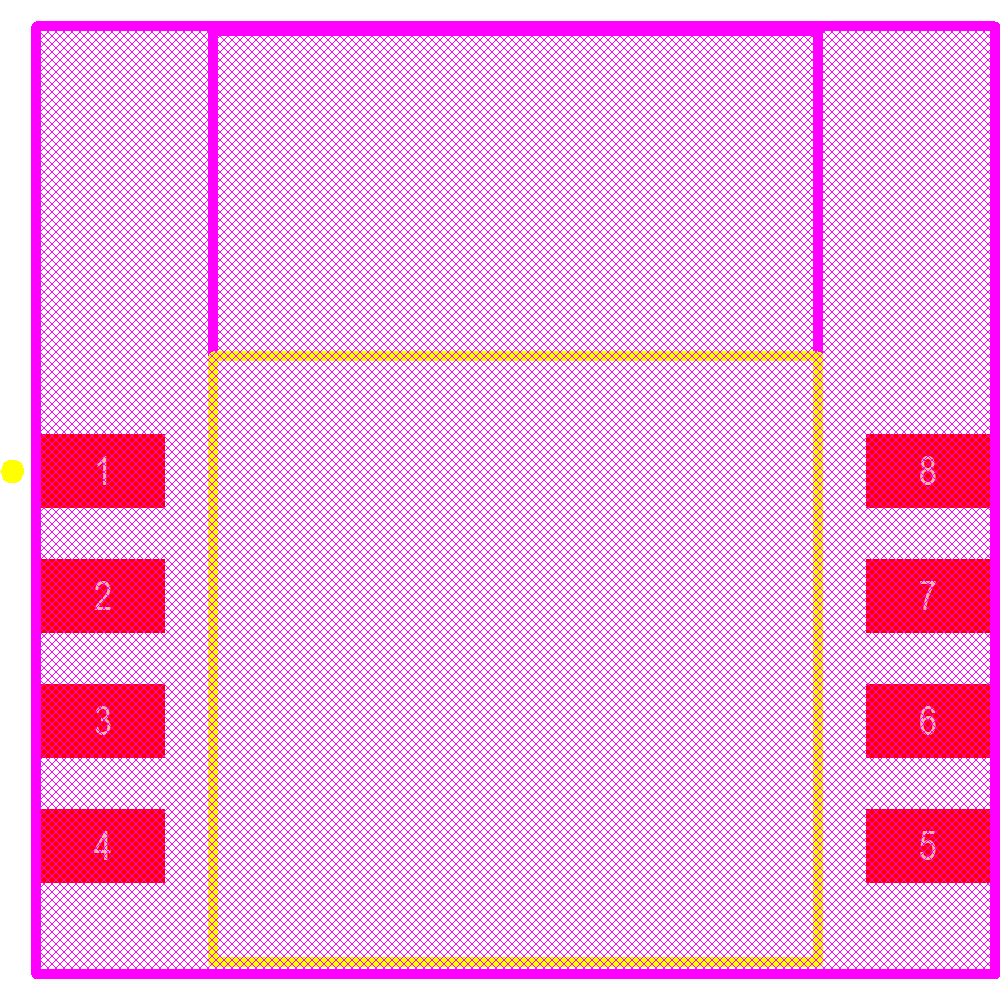

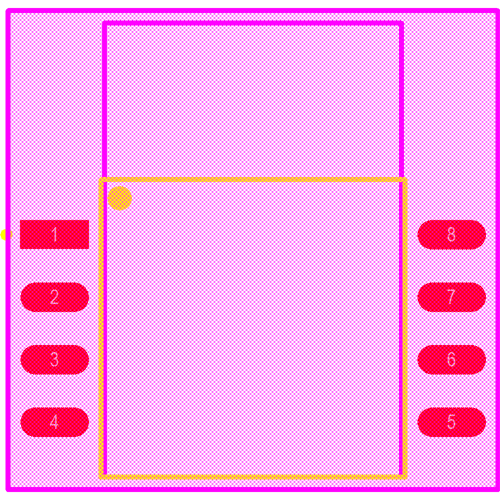

Images
