Sensors > Pressure Sensors

2SMPP-03 - Omron

Board Mount Pressure Sensor -50kPa to 50kPa Gage 6-Pin SOP Module

Technical Details

Accuracy	0.5%
Ambient Temperature Range High	100°C
Case/Package	SMD/SMT
Height	2mm
Introduction Date	2021-01-19
Lead Free	Lead Free
Length	6.15mm
Lifecycle Status	Production
Max Operating Temperature	100°C
Max Pressure	17.4PSI
Max Supply Current	100µA
Min Operating Temperature	-20°C
Mount	Surface Mount
Nominal Supply Current	100µA
Number of Pins	6
Operating Supply Current	100µA
Output Type	ANALOG, Analog Voltage
Port Style	Barbed
Pressure Type	Compound
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	9026200000, 9026200000\|9026200000\|9026200000\|9026200000\|9026200000
Termination	SMD/SMT
Width	4.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Unknown

Images

Omron 2SMPP-03 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

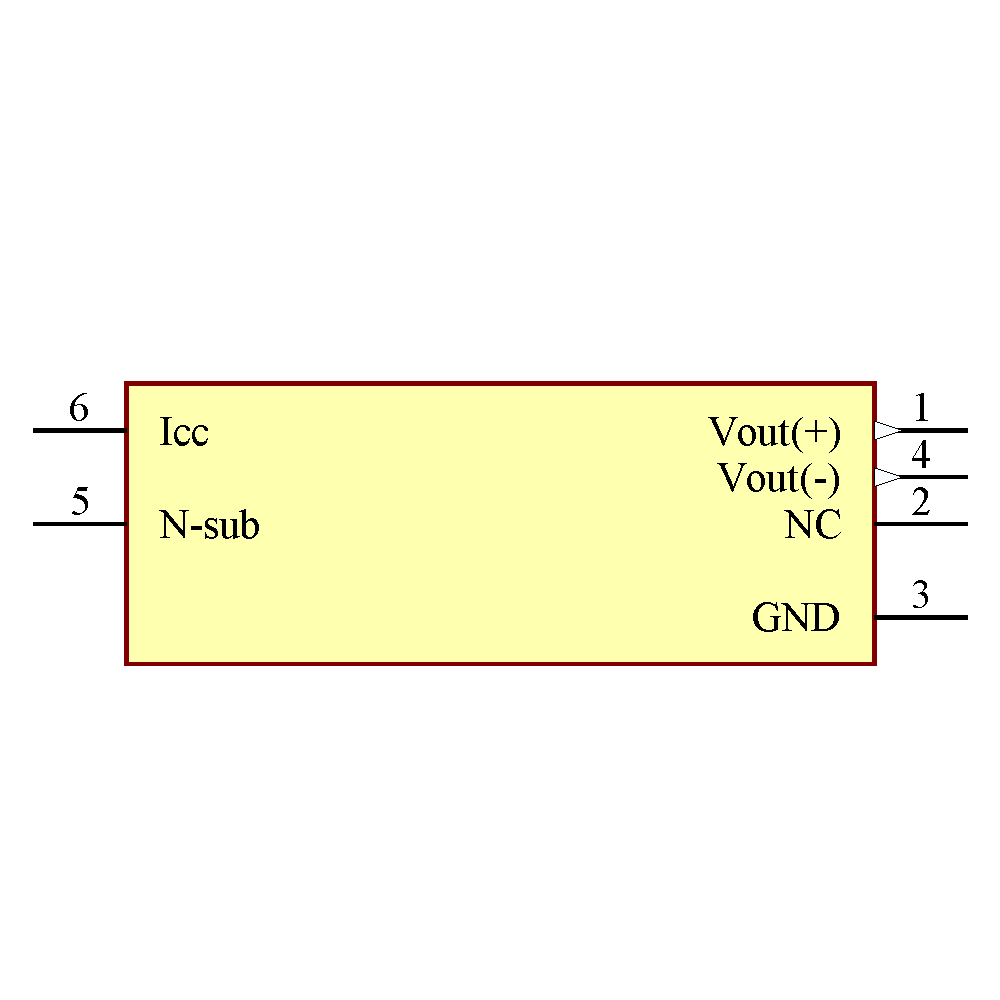

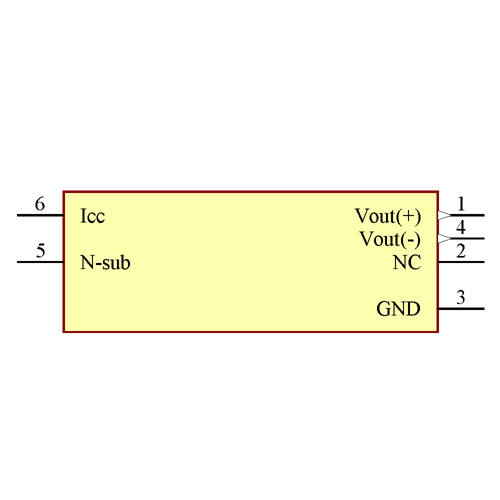

Symbol

2SMPP-03 Symbol - Omron

2SMPP-03 Symbol - Omron

2SMPP-03 Symbol - Omron

2SMPP-03 Symbol - Omron

‹ ›

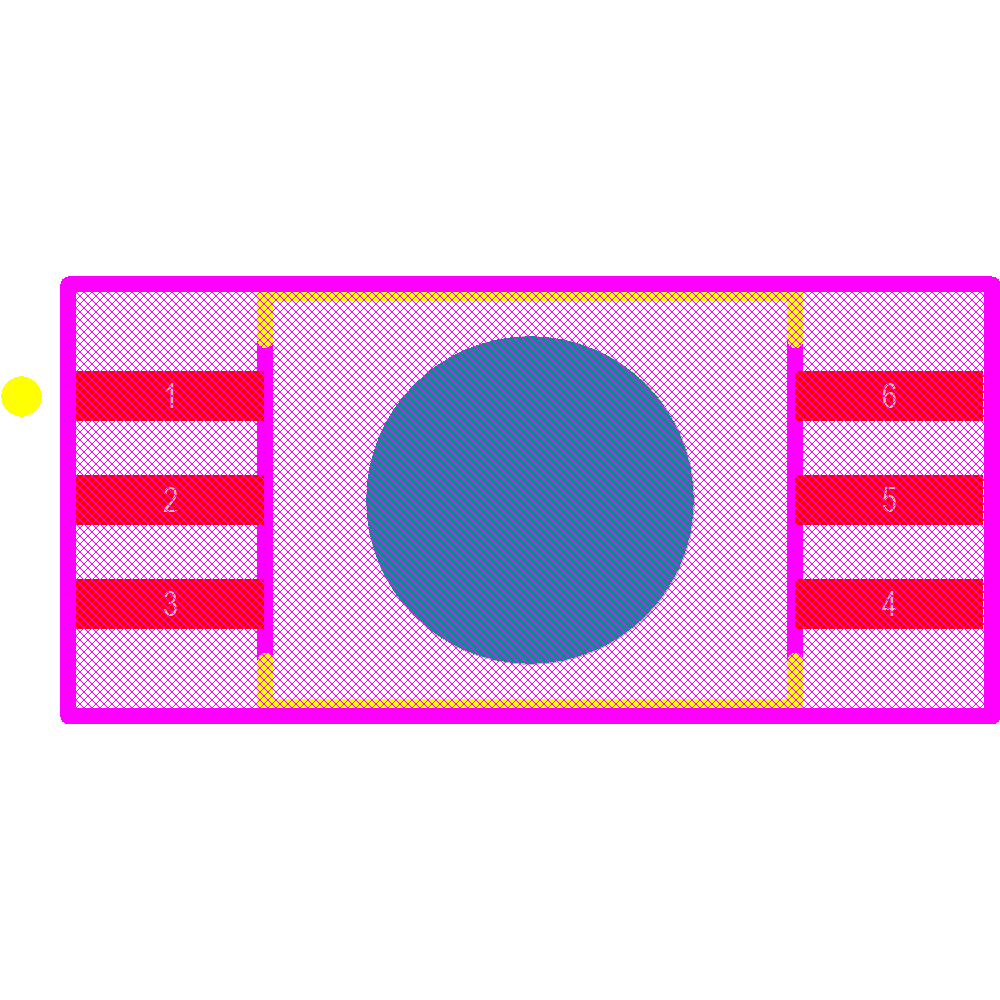

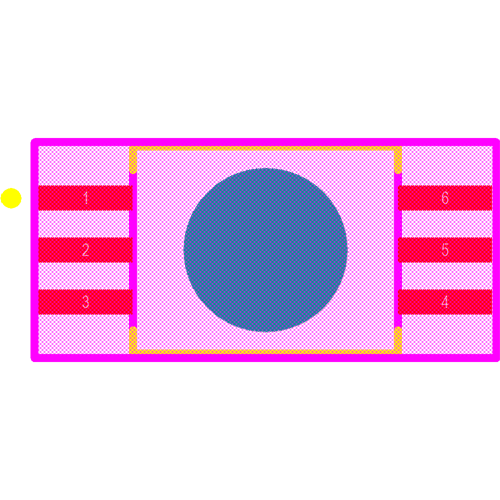

Footprint

2SMPP-03 Footprint - Omron

2SMPP-03 Footprint - Omron

2SMPP-03 Footprint - Omron

2SMPP-03 Footprint - Omron

‹ ›
