G2RL-1A-E DC5 - Omron

Electromechanical Relay 5VDC 62.5Ohm 16A SPST-NO (29x12.7x15.7)mm THT Power Relay

Technical Details

Ambient Temperature Range High	85°C
Case/Package	DIP
Coil Current	80mA
Coil Power	400mW
Coil Resistance	62.5Ω
Coil Type	Non-Latching
Coil Voltage (DC)	3.5V
Contact Current Rating	16A
Contact Material	Cadmium, Silver, Tin
Contact Voltage Rating (AC)	440V
Current Rating	16A
Depth	12.7mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	150kcycles
Height	15.7mm
Harmonized Tariff Schedule (HTS) Code	8536.49.00.75
Introduction Date	2003-05-01
Length	29mm
Lifecycle Status	Production
Max Current Rating	16A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	440V
Max Voltage Rating (DC)	300V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	6
Operate Time	15ms
Power Consumption	400mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	5ms
Response Time	15ms
RoHS	Compliant
Switching Current	16A
Termination	PC Pin
Throw Configuration	SPST
Voltage Rating (AC)	440V
Weight	12g
Width	12.7mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron G2RL-1A-E DC5 | RS

RS

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

Symbol

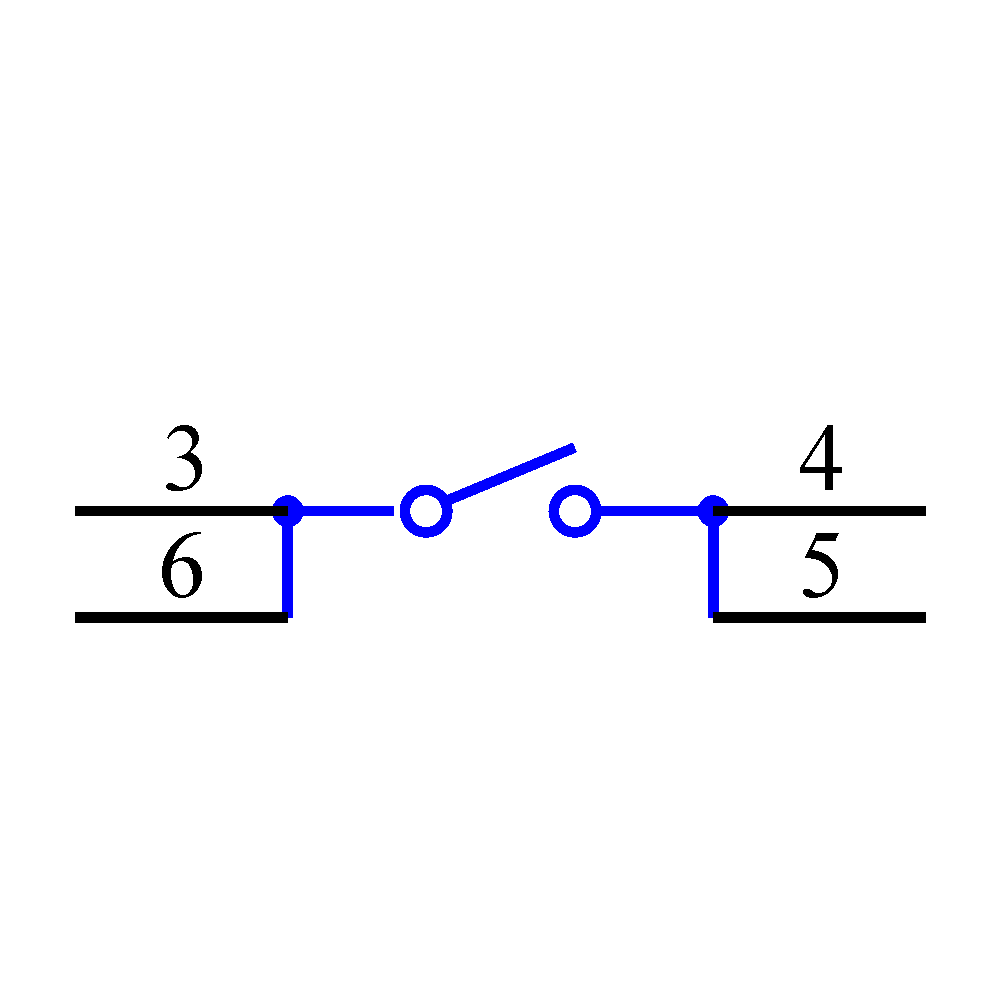

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

G2RL-1A-E DC5 Symbol - Omron

‹ ›

Footprint

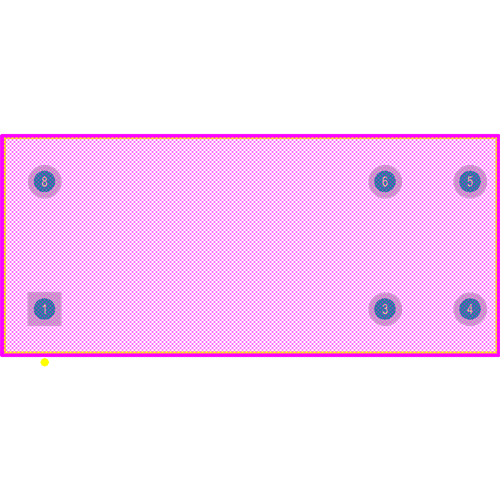

G2RL-1A-E DC5 Footprint - Omron

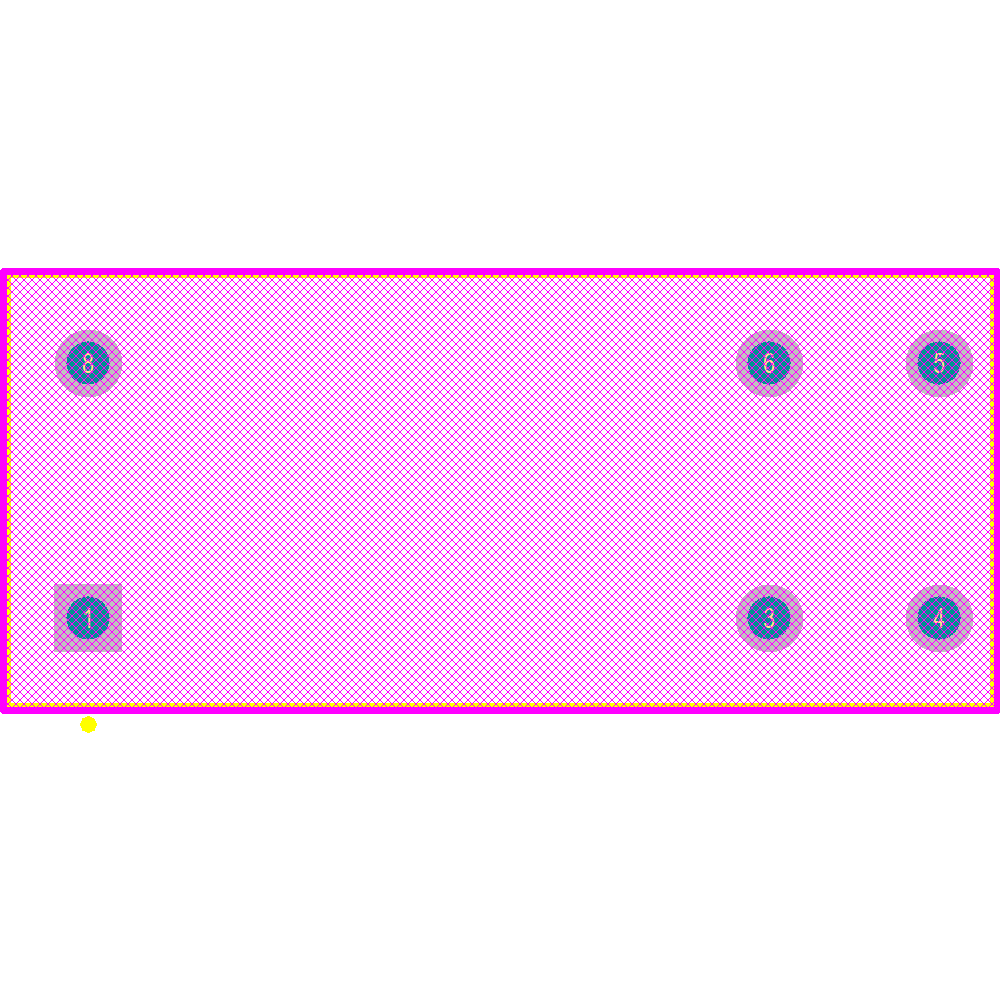

G2RL-1A-E DC5 Footprint - Omron
