Electromechanical > Relays > Power Relays

G2RL-2 DC12 - Omron

Omron G2RL-2-DC12 Power Relay 12V DC 8A DPDT 2 change-overs.

Technical Details

Ambient Temperature Range High	85°C
Case/Package	DIP
Coil Current	33mA
Coil Power	400mW
Coil Resistance	360Ω
Coil Type	Non-Latching
Coil Voltage (DC)	8.4V
Contact Current Rating	8A
Contact Material	Cadmium, Silver
Contact Voltage Rating (AC)	440V
Current Rating	8A
Depth	12.7mm
Electrical Life	30kcycles
Height	15.7mm
Lead Free	Lead Free
Length	29mm
Lifecycle Status	Production
Max Current Rating	8A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	440V
Max Voltage Rating (DC)	300V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	2
Number of Pins	8
Operate Time	15ms
Power Consumption	400mW
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	5ms
Response Time	15ms
RoHS	Compliant
Switching Current	8A
Termination	PC Pin
Throw Configuration	DPDT
Voltage Rating (AC)	440V
Weight	12g
Width	12.7mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Omron G2RL-2 DC12 | RS

RS

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

Symbol

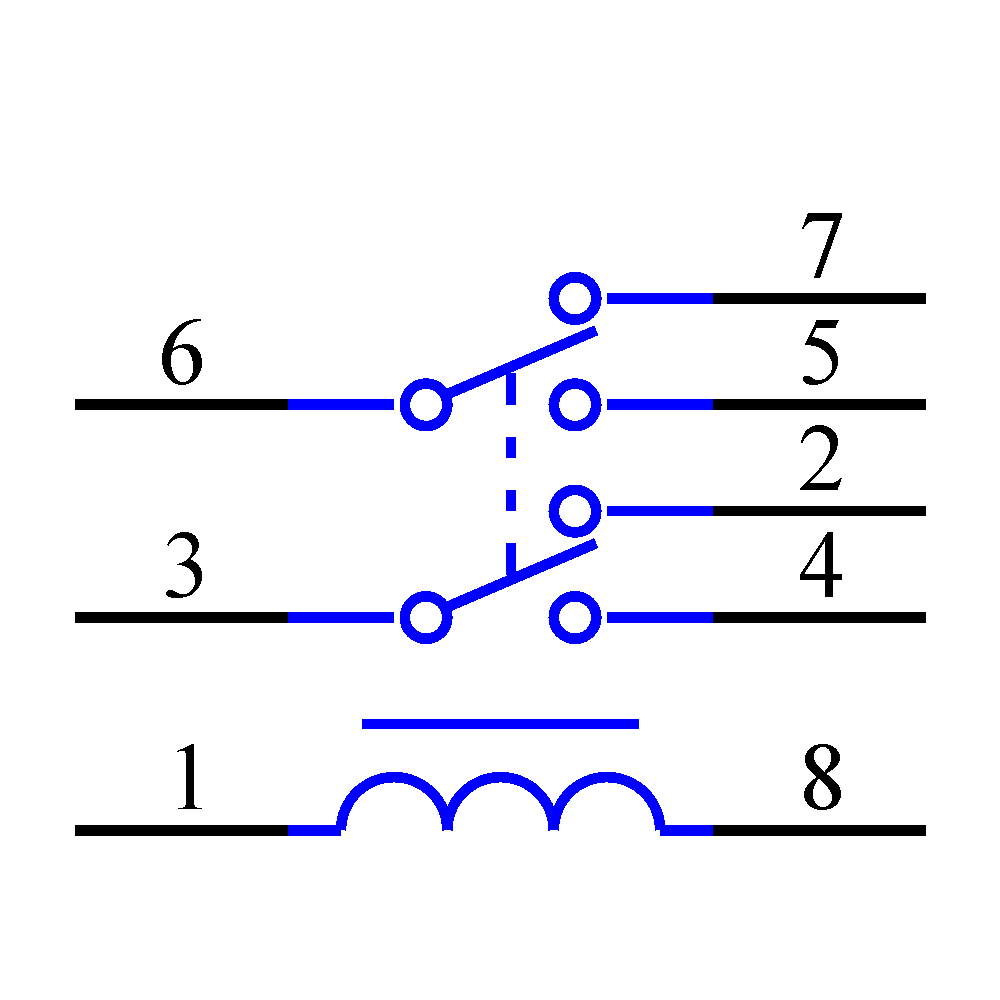

G2RL-2 DC12 Symbol - Omron

G2RL-2 DC12 Symbol - Omron

G2RL-2 DC12 Symbol - Omron

G2RL-2 DC12 Symbol - Omron

‹ ›

Footprint

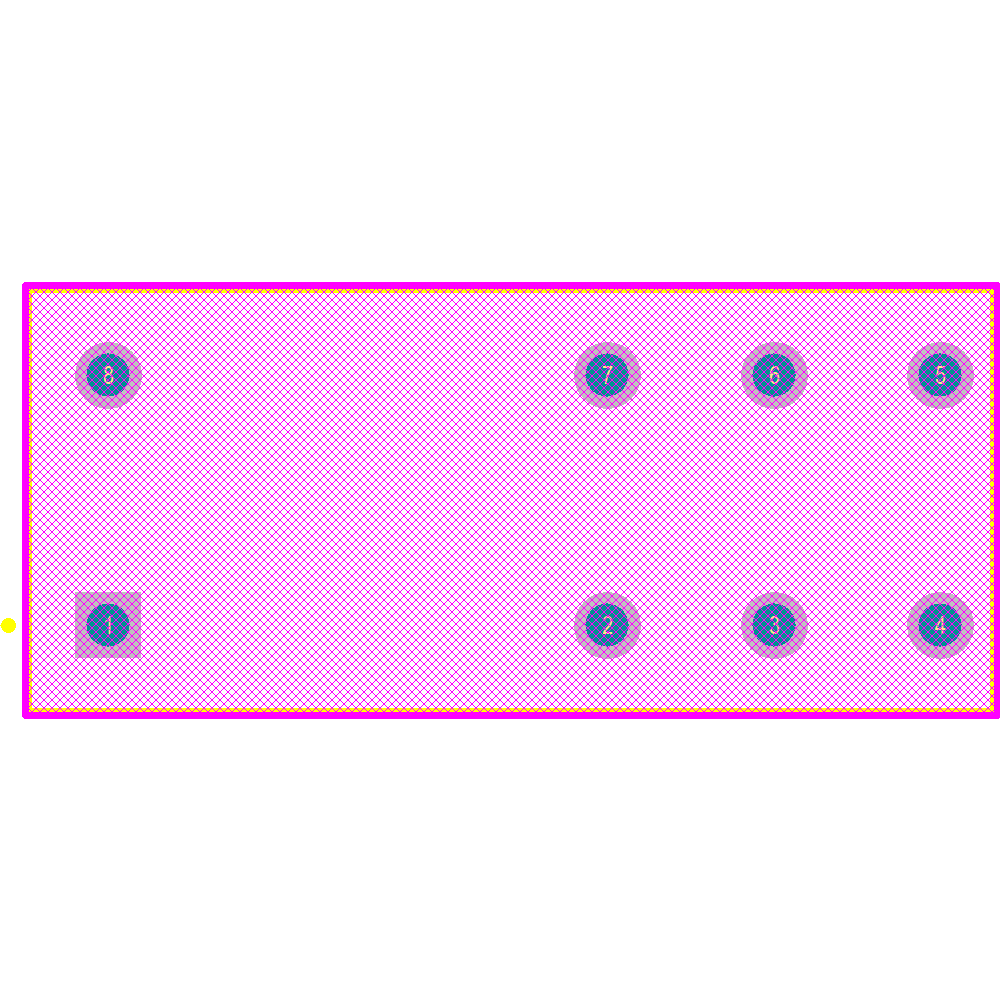

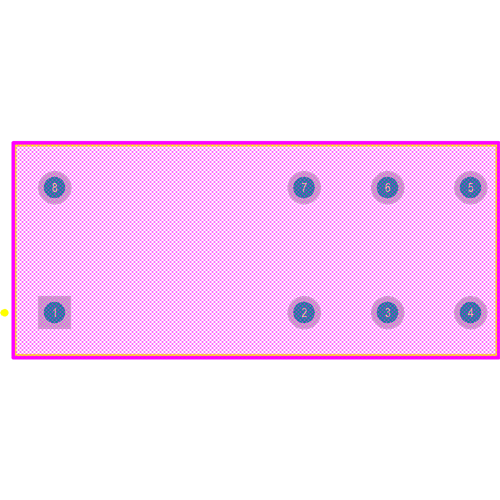

G2RL-2 DC12 Footprint - Omron

G2RL-2 DC12 Footprint - Omron

G2RL-2 DC12 Footprint - Omron

G2RL-2 DC12 Footprint - Omron

‹ ›
