Technical Details
| Ambient Temperature Range High | 65°C |
| Capacitance | 800fF |
| Case/Package | SOP |
| Height | 2.1mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 2mA |
| Introduction Date | 2010-12-14 |
| Isolation Voltage | 1500Vrms |
| Lifecycle Status | Production |
| Load Current | 90mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.3V |
| Max Junction Temperature (Tj) | 125°C |
| Max Operating Temperature | 65°C |
| Max Output Current | 90mA |
| Max Output Voltage | 600V |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| On-State Resistance | 45Ω |
| Output Current | 70mA |
| Output Voltage | 480V |
| Radiation Hardening | No |
| Relay Type | Relay |
| Resistance | 45Ω |
| RoHS | Compliant |
| Schedule B | 8536410020 |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

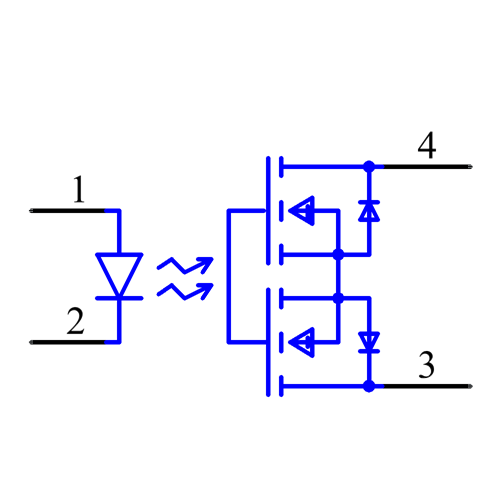

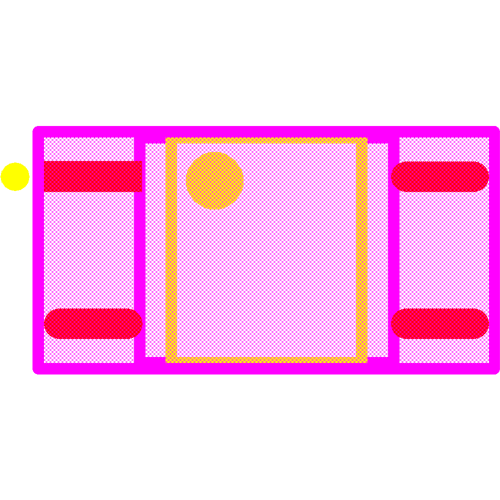

Images
