Technical Details
| Ambient Temperature Range High | 65°C |
| Case/Package | SMD/SMT |
| Data Polarity | DC |
| Forward Current | 30mA |
| Height | 1.3mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 7.5mA |
| Introduction Date | 2014-08-27 |
| Isolation Voltage | 500Vrms |
| Lifecycle Status | Production |
| Load Current | 400mA |
| Max Input Current | 20mA |
| Max Input Voltage | 1.4V |
| Max Junction Temperature (Tj) | 125°C |
| Max Length | 2.45mm |
| Max Operating Temperature | 110°C |
| Max Output Current | 400mA |
| Max Output Voltage | 48V |
| Manufacturer Package Identifier | G3VM-61UR(TR05) |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Pins | 4 |
| On-State Resistance | 1.5Ω |
| Output Current | 400mA |
| Output Voltage | 48V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Resistance | 1.5Ω |
| RoHS | Compliant |
| Termination | SMD/SMT |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

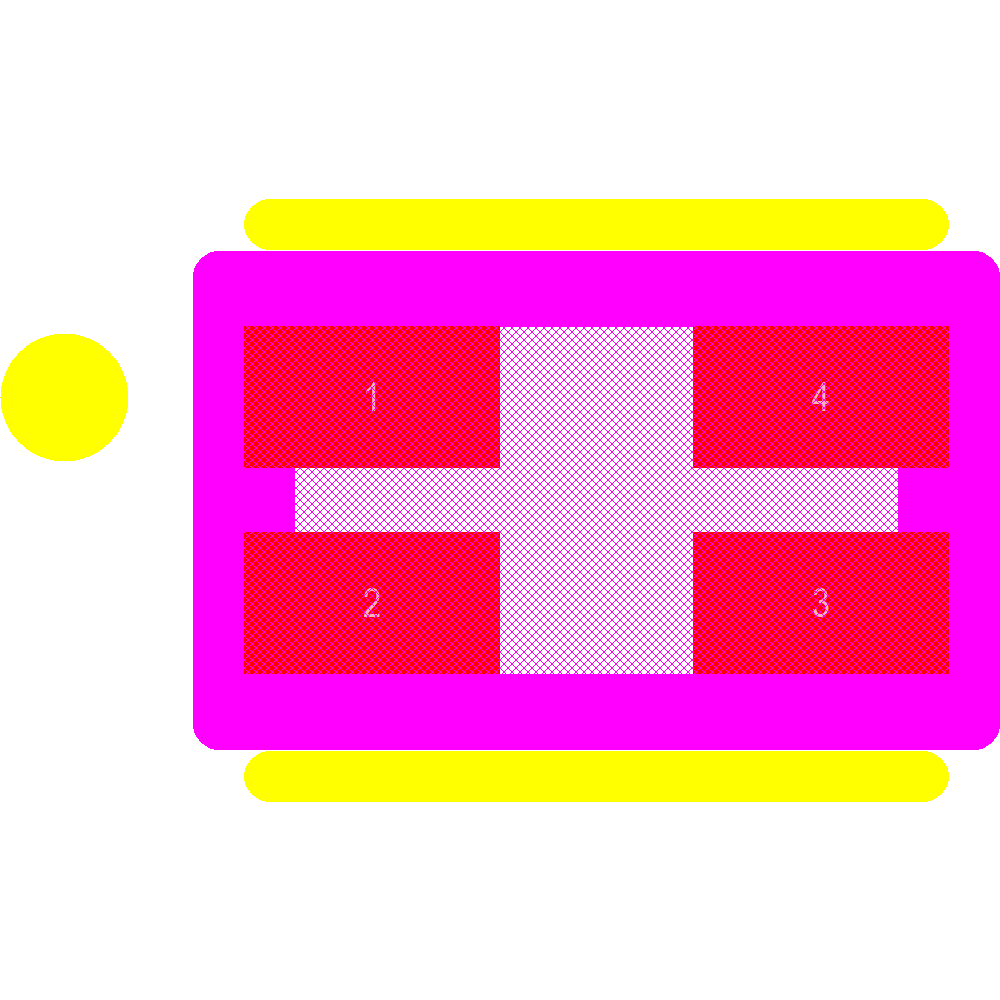

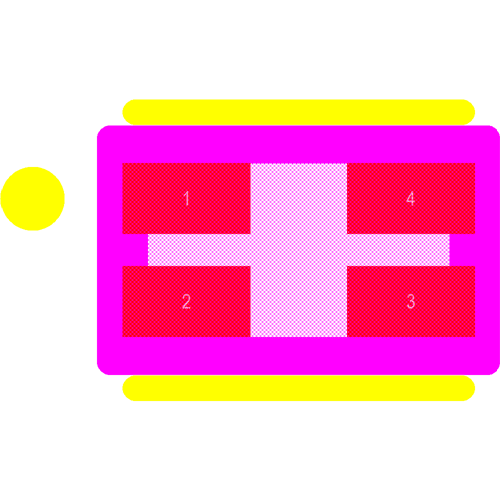

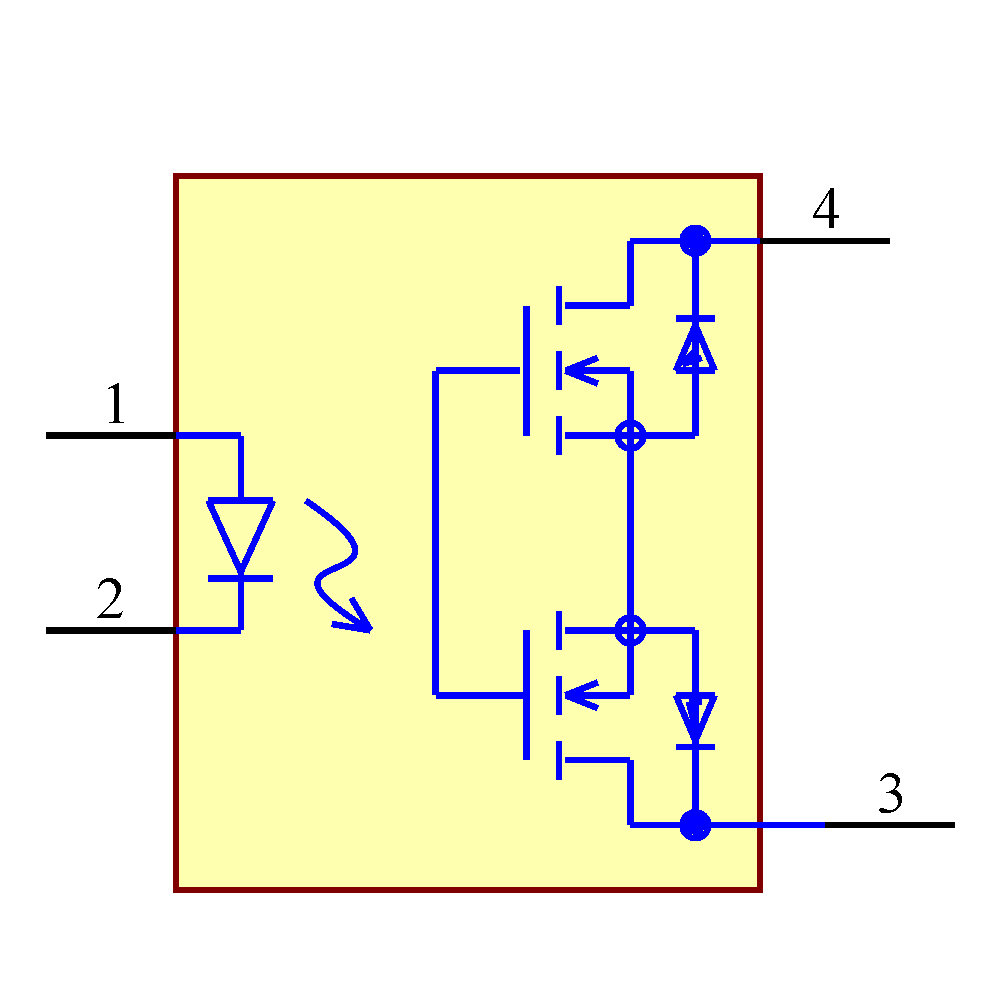

Images
