Electromechanical > Relays > Power Relays

G5CA-1A-E DC24 - Omron

G5CA Power Relay High-Capacity Flux Protection SPST-NO 15A 24VDC Through Hole Tube

Technical Details

Ambient Temperature Range High	70°C
Approvals	CSA, UL
Coil Current	8.3mA
Coil Power	200mW
Coil Resistance	2.88kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	24V
Contact Current Rating	15A
Contact Material	Silver
Current Rating	15A
Depth	16mm
Export Control Classification Number (ECCN) Code	EAR99
Height	11mm
Introduction Date	2007-02-14
Lead Free	Lead Free
Length	22mm
Lifecycle Status	Production
Max Current Rating	15A
Max Operating Temperature	70°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	125V
Min Operating Temperature	-25°C
Mount	PCB, Through Hole
Number of Contacts	1
Number of Pins	4
Operate Time	10ms
Relay Type	General Purpose
Release Time	10ms
RoHS	Compliant
Switching Current	15A
Termination	PC Pin, Through Hole
Throw Configuration	SPST
Voltage Rating (AC)	250V
Weight	8g
Width	16mm

Compliance

RoHS : Unconfirmed

Images

Omron G5CA-1A-E DC24 | RS

RS

Datasheets

Lifecycle Status Indicator

Production

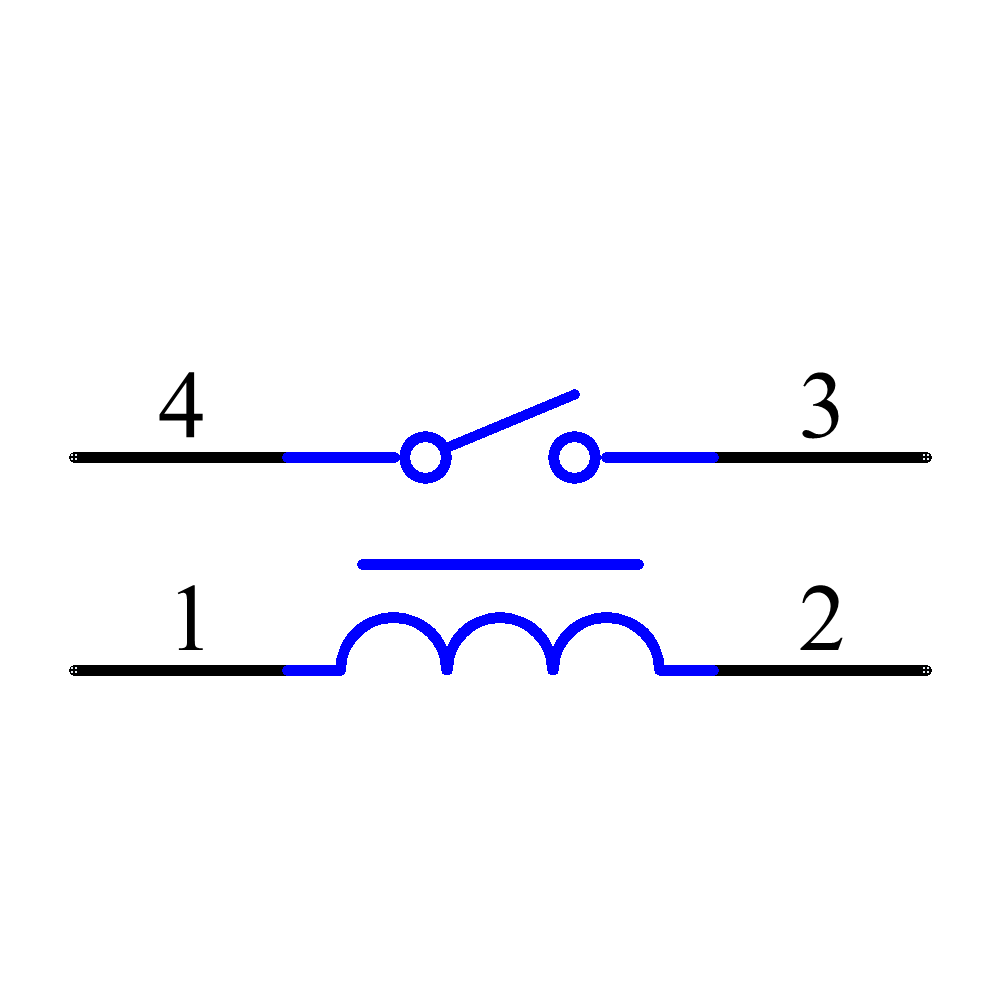

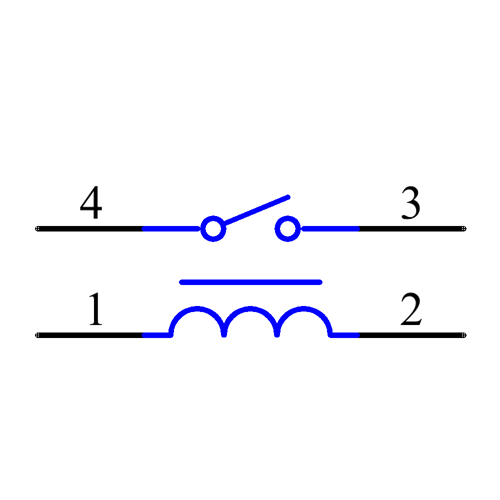

Symbol

G5CA-1A-E DC24 Symbol - Omron

G5CA-1A-E DC24 Symbol - Omron

G5CA-1A-E DC24 Symbol - Omron

G5CA-1A-E DC24 Symbol - Omron

‹ ›

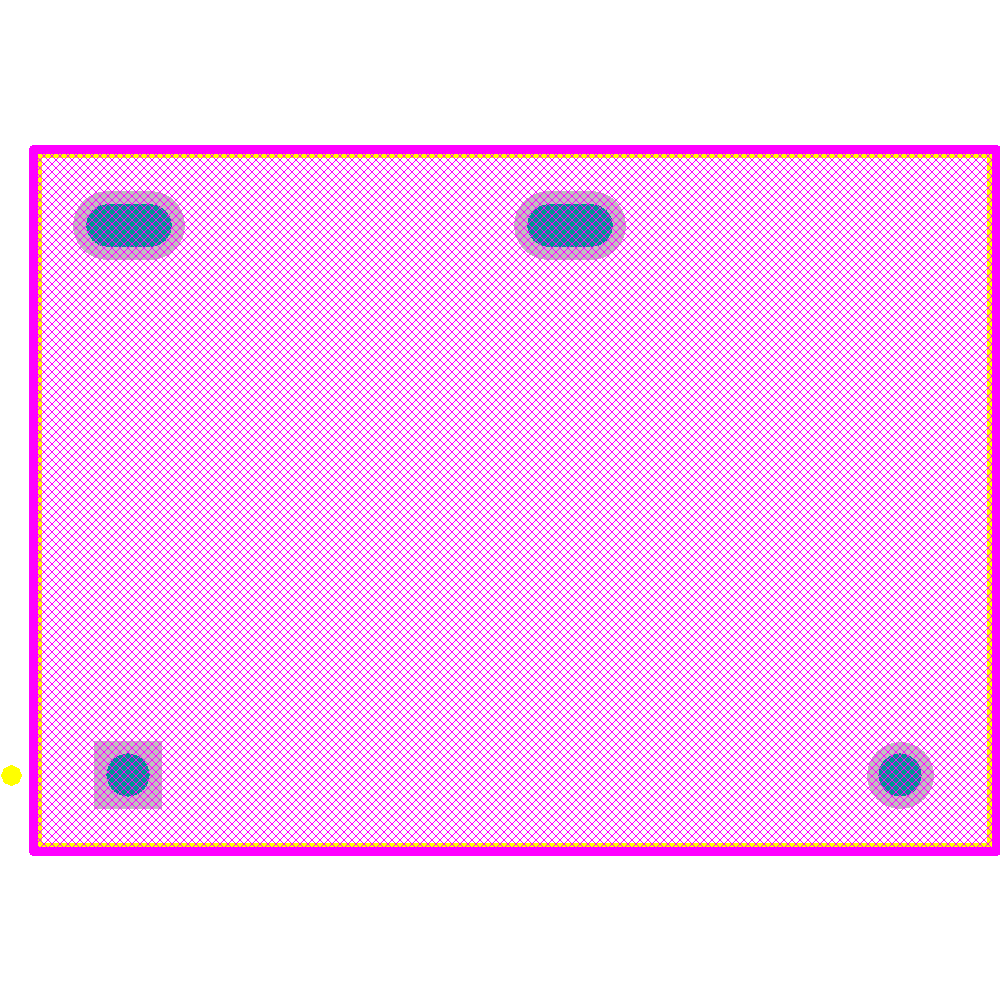

Footprint

G5CA-1A-E DC24 Footprint - Omron

G5CA-1A-E DC24 Footprint - Omron

G5CA-1A-E DC24 Footprint - Omron

G5CA-1A-E DC24 Footprint - Omron

‹ ›
