Electromechanical > Relays > Power Relays

G5LE-14 DC48 - Omron

Electromechanical Relay 48VDC 5.76KOhm 8ADC/10AAC SPDT (22.5x16.5x19)mm THT Power Relay

Technical Details

Ambient Temperature Range High	85°C
Coil Current	8mA
Coil Power	400mW
Coil Resistance	5.76kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	36V
Contact Current Rating	10A
Contact Material	Silver, Tin
Contact Voltage Rating (AC)	250V
Current Rating	10A
Depth	16.5mm
Electrical Life	36kcycles
Height	19mm
Lead Free	Lead Free
Length	22.5mm
Lifecycle Status	Production
Max Current Rating	8A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	5
Operate Time	10ms
Power Consumption	400mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	12.2ms
Response Time	10.6ms
RoHS	Compliant
Switching Current	10A
Termination	Solder
Throw Configuration	SPDT
Voltage Rating (AC)	250V
Weight	12g
Width	16.5mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron G5LE-14 DC48 | RS

RS

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

Symbol

G5LE-14 DC48 Symbol - Omron

G5LE-14 DC48 Symbol - Omron

G5LE-14 DC48 Symbol - Omron

G5LE-14 DC48 Symbol - Omron

‹ ›

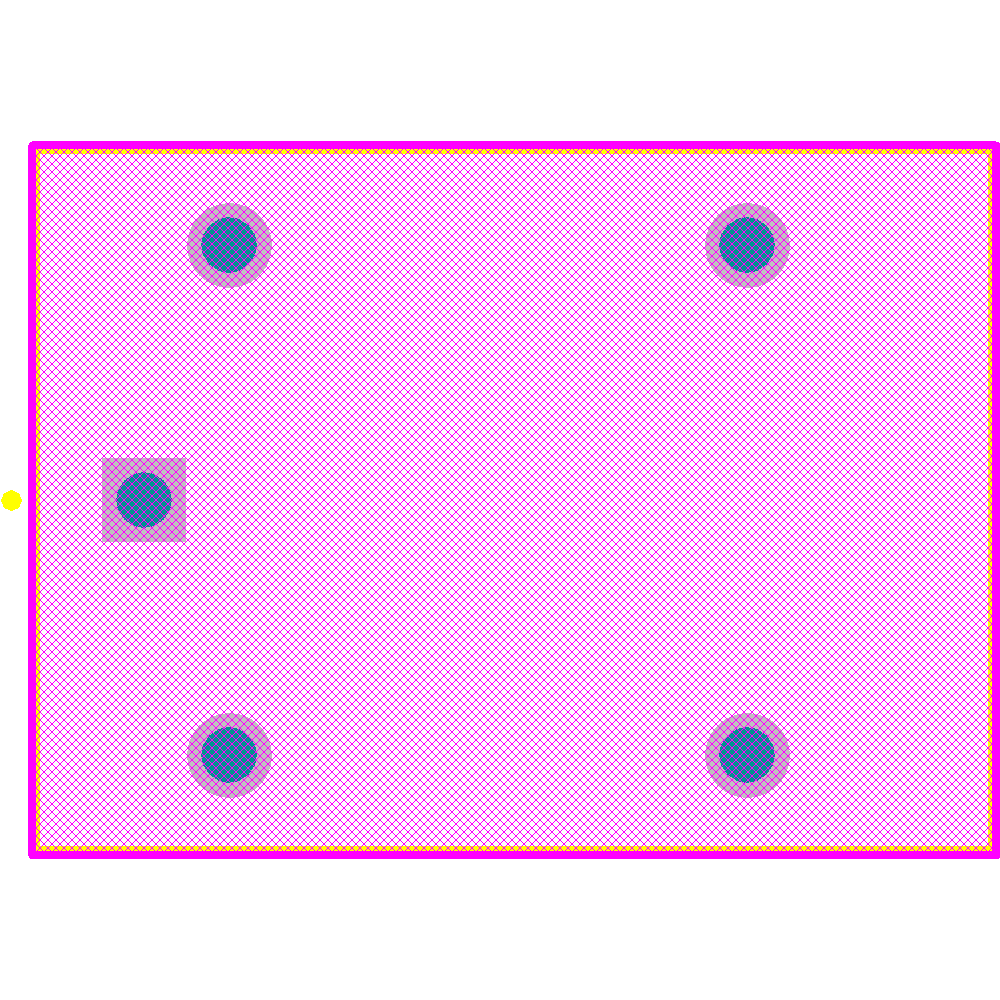

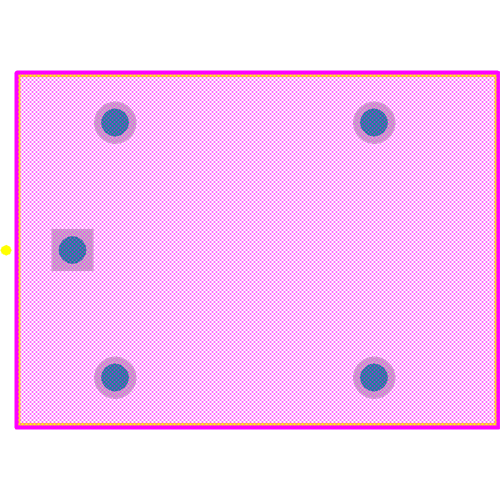

Footprint

G5LE-14 DC48 Footprint - Omron

G5LE-14 DC48 Footprint - Omron

G5LE-14 DC48 Footprint - Omron

G5LE-14 DC48 Footprint - Omron

‹ ›
