G5LE-1A-E-DC5 - Omron
Power/Signal Relay, SPST, Momentary, 0.079A (Coil), 5VDC (Coil), 400mW (Coil), DC Input, AC Output
Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 79mA |
| Coil Power | 400mW |
| Coil Resistance | 63Ω |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 5V |
| Coil Voltage (DC) | 3.75V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 16A |
| Electrical Life | 36kcycles |
| Height | 19mm |
| Lead Free | Lead Free |
| Length | 22.5mm |
| Lifecycle Status | Production |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Operate Time | 10ms |
| Packaging | Bulk |
| Power Consumption | 400mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 12.2ms |
| Response Time | 10.6ms |
| RoHS | Compliant |
| Switching Current | 16A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 12g |
| Width | 16.5mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

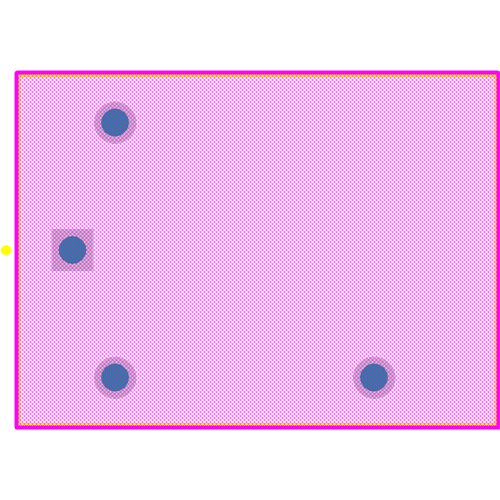

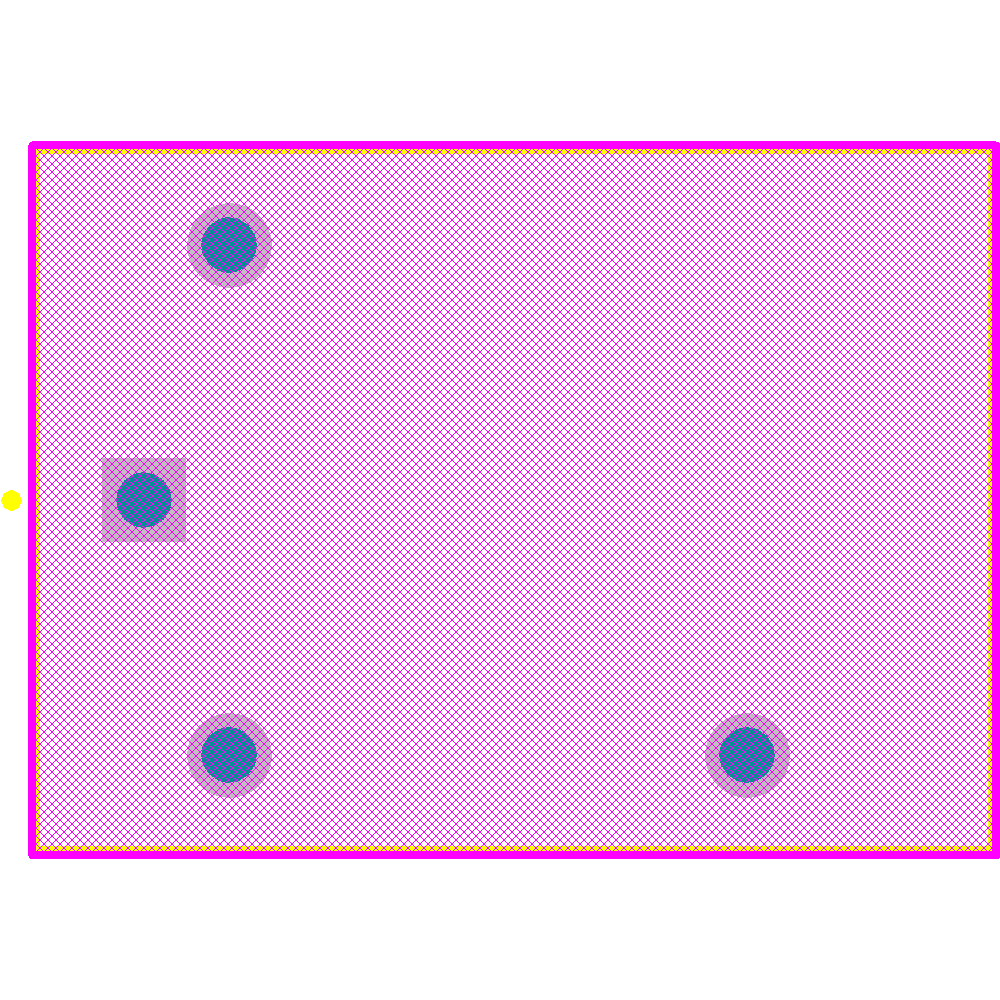

Images
