G5Q-14-DC24 - Omron

Power Relay 24VDC 5(NO)/3(NC)DC/10(NO)/3(NC)AAC SPDT(20.3x10.3x16.2)mm THT

Technical Details

Ambient Temperature Range High	105°C
Approvals	CSA, UL, VDE
Coil Current	17mA
Coil Power	400mW
Coil Resistance	1.44kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	18V
Contact Current Rating	10A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	277V
Current Rating	10A
Depth	10.3mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	50kcycles
Height	16.2mm
Harmonized Tariff Schedule (HTS) Code	8536.41.00.20
Insulation Resistance	1GΩ
Introduction Date	2007-01-22
Lead Free	Lead Free
Length	20.3mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	105°C
Max Voltage Rating (AC)	277V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Mount	PCB, Through Hole
Number of Contacts	1
Number of Pins	5
Number of Terminals	5
Operate Time	10ms
Packaging	Bulk
Power Consumption	400mW
Power Rating	375W
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	5ms
Response Time	10ms
RoHS	Compliant
Schedule B	8536410020, 8536410020\|8536410020, 8536410020\|8536410020\|8536410020, 8536410020\|8536410020\|8536410020\|8536410020
Switching Current	5A
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	277V
Weight	6.5g

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron G5Q-14-DC24 | Sager Electronics

Sager Electronics

Datasheets

Sager Electronics

Master Electronics

Master Electronics

Lifecycle Status Indicator

Production

Symbol

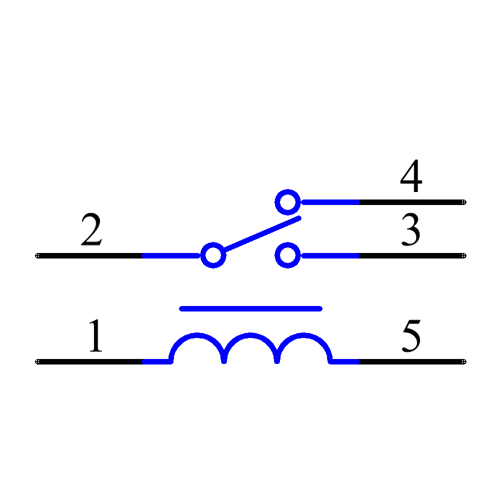

G5Q-14-DC24 Symbol - Omron

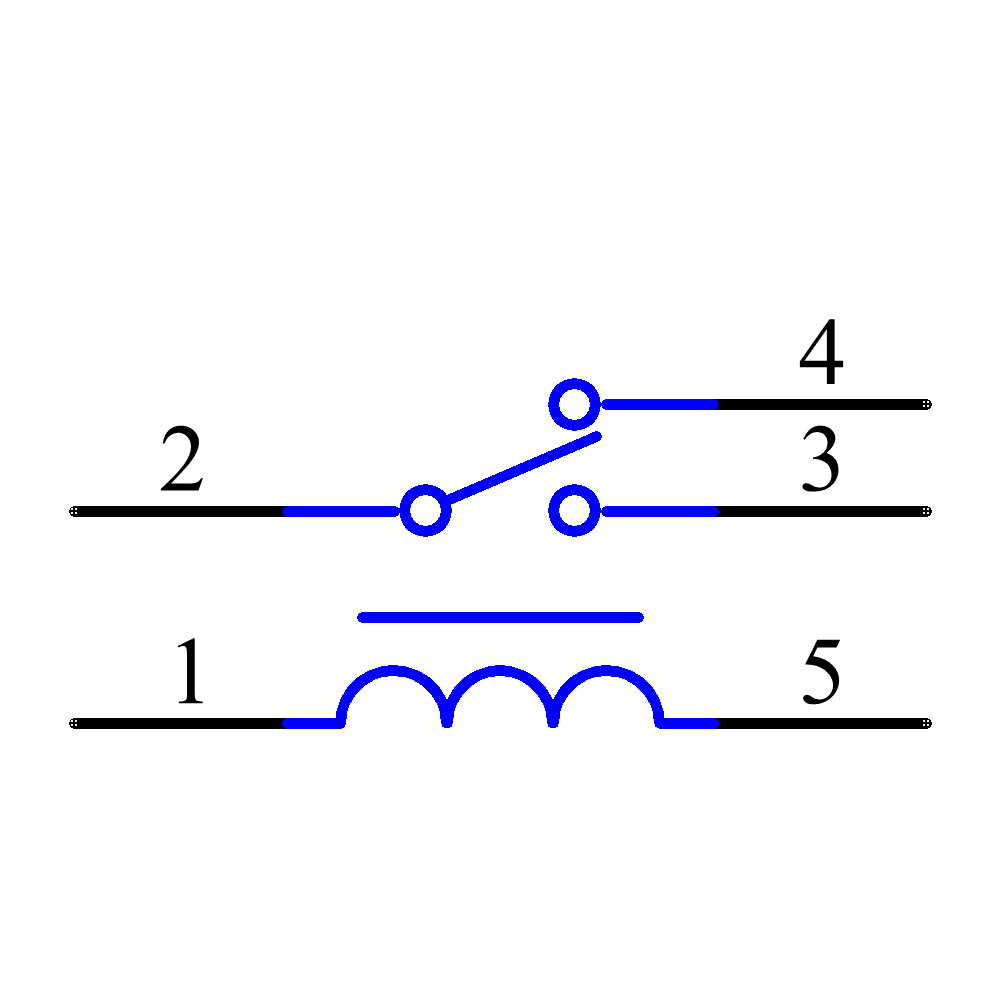

G5Q-14-DC24 Symbol - Omron

G5Q-14-DC24 Symbol - Omron

G5Q-14-DC24 Symbol - Omron

‹ ›

Footprint

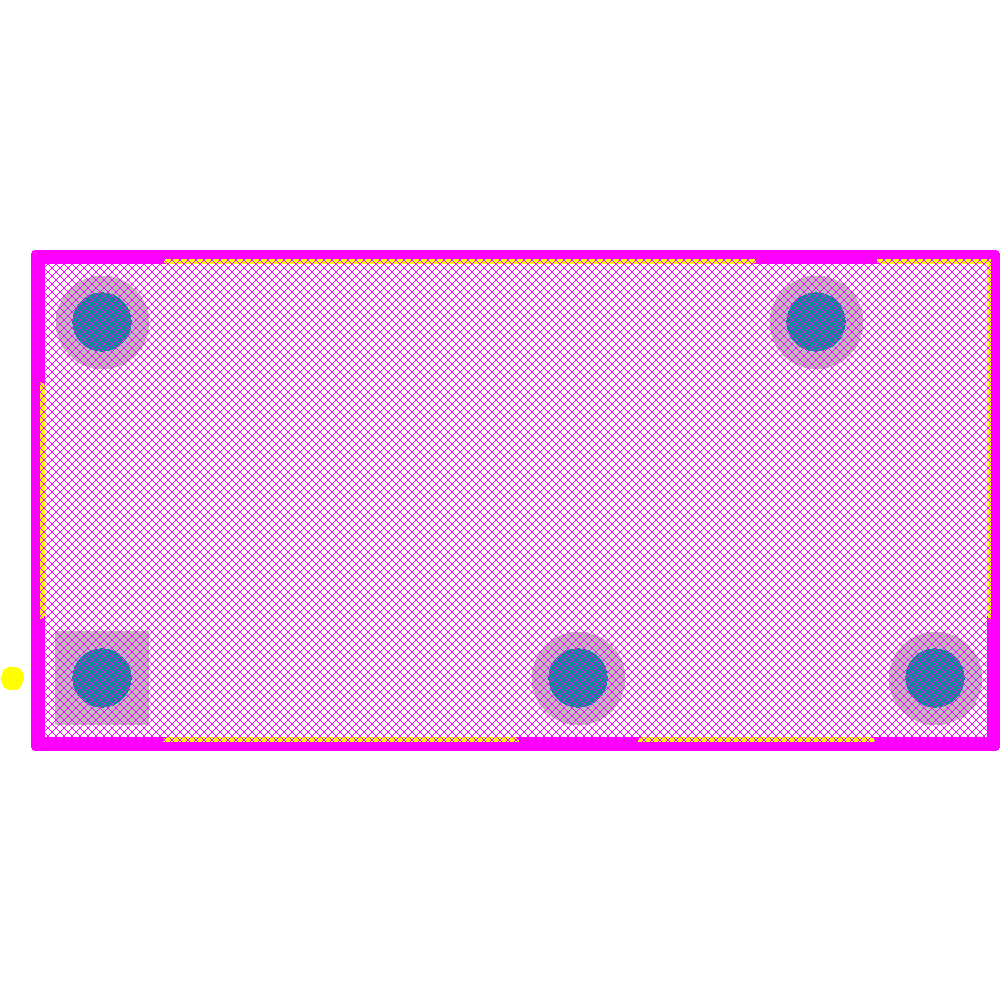

G5Q-14-DC24 Footprint - Omron

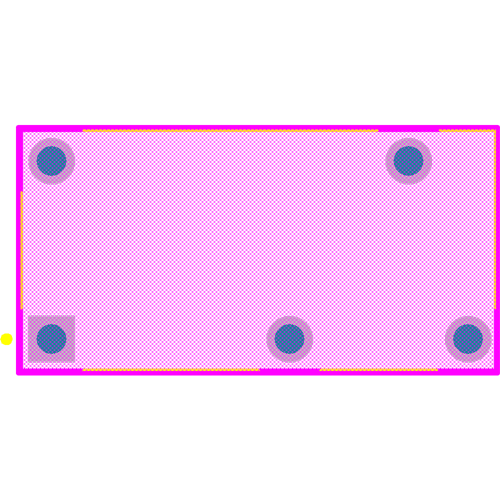

G5Q-14-DC24 Footprint - Omron
