G5Q-1A4 DC18 - Omron
Power Relay 18VDC 5(NO)/3(NC)DC/10(NO)/3(NC)AAC SPST-NO(20.3X10.3X16.2)MM Tht
Technical Details
| Ambient Temperature Range High | 105°C |
| Coil Current | 11.1mA |
| Coil Power | 200mW |
| Coil Resistance | 1.62kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 18V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 277V |
| Current Rating | 10A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 15.8mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2021-06-16 |
| Length | 20.3mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Number of Terminals | 4 |
| Operate Time | 10ms |
| Radiation Hardening | No |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 10ms |
| RoHS | Compliant |
| Schedule B | 8536410020, 8536410020|8536410020|8536410020|8536410020|8536410020 |
| Sealable | RT3 |
| Switching Current | 5A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Weight | 6.5g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No

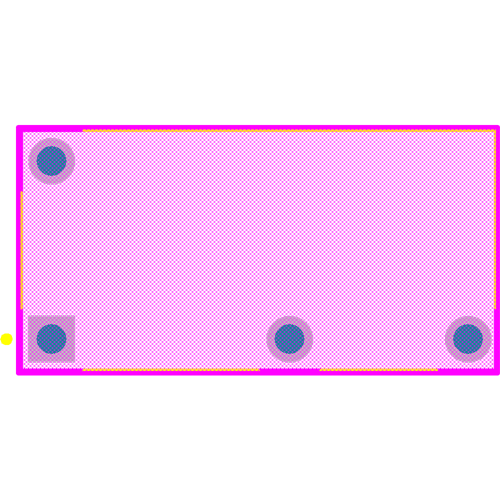

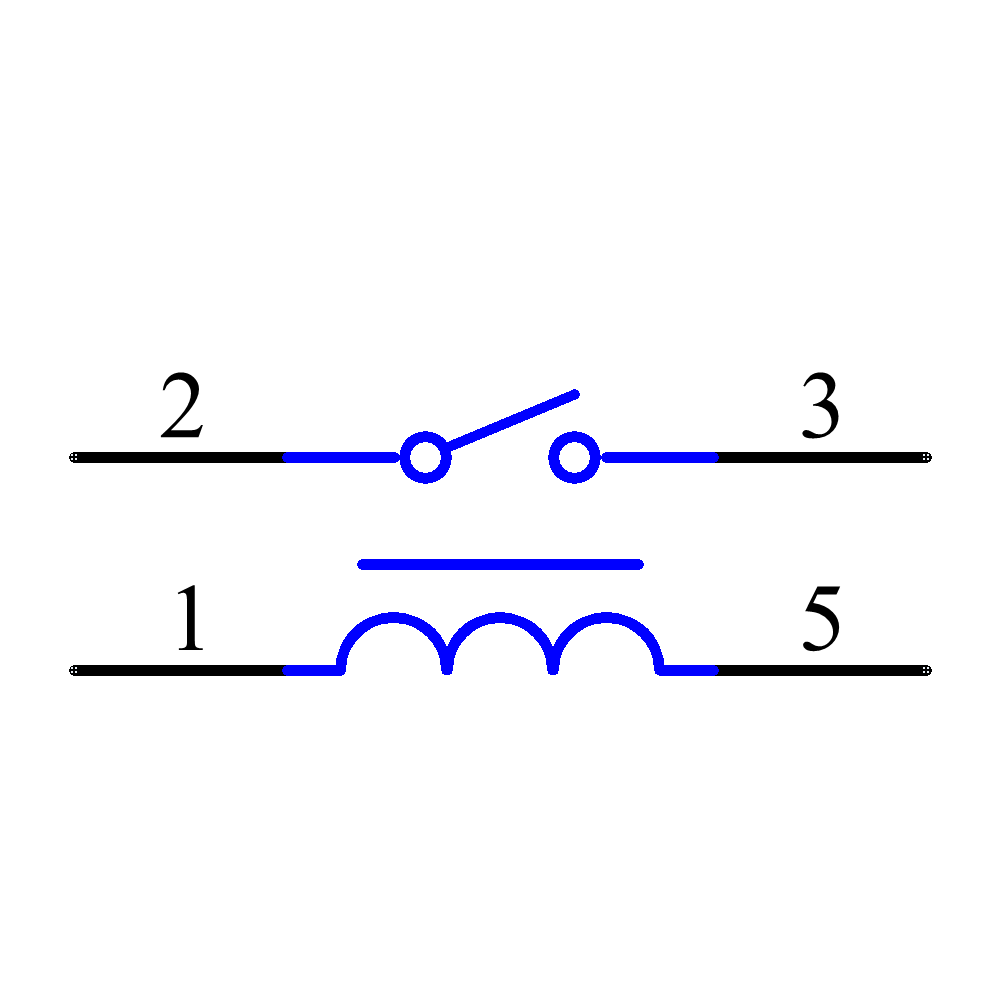

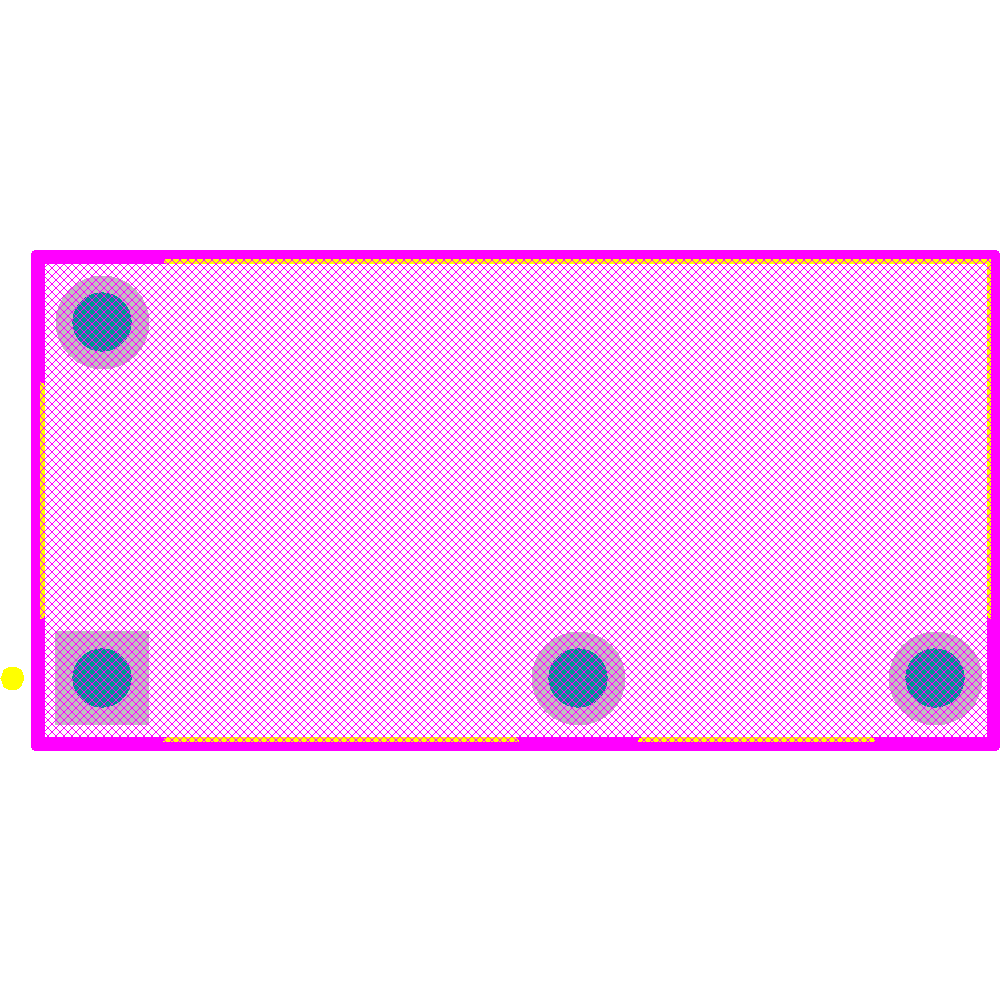

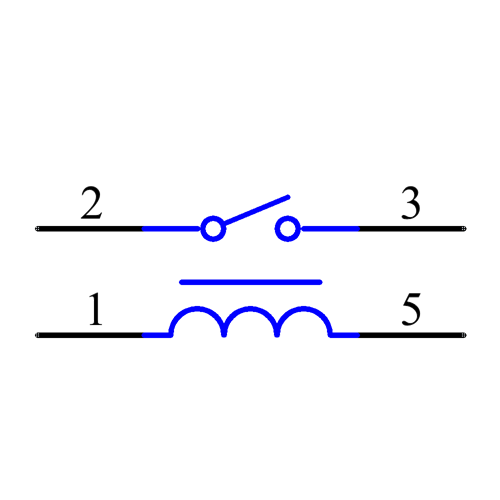

Images
