Electromechanical > Relays > Signal Relays

G5V-2-DC48 - Omron

Electromechanical Relay Double Pole Double Throw 2A 48 Volt 4Kohm Through Hole

Technical Details

Ambient Temperature Range High	65°C
Approvals	CSA, UL
Case/Package	DIP
Coil Current	12mA
Coil Power	500mW
Coil Resistance	4kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	48V
Contact Current Rating	2A
Contact Material	Silver
Current Rating	2A
Depth	10.1mm
Export Control Classification Number (ECCN) Code	EAR99
Height	11.5mm
Introduction Date	2007-03-06
Lead Free	Lead Free
Length	20.5mm
Lifecycle Status	Production
Max Current Rating	2A
Max Operating Temperature	65°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	125V
Min Operating Temperature	-25°C
Mount	Through Hole
Number of Contacts	2
Number of Pins	8
Operate Time	7ms
Power Rating	580mW
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	3ms
RoHS	Compliant
Switching Current	2A
Termination	PC Pin
Throw Configuration	DPDT
Type	Electromechanical
Voltage Rating (AC)	125V
Weight	5g
Width	10.1mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Omron G5V-2-DC48 | RS

RS

Datasheets

Master Electronics

Lifecycle Status Indicator

Production

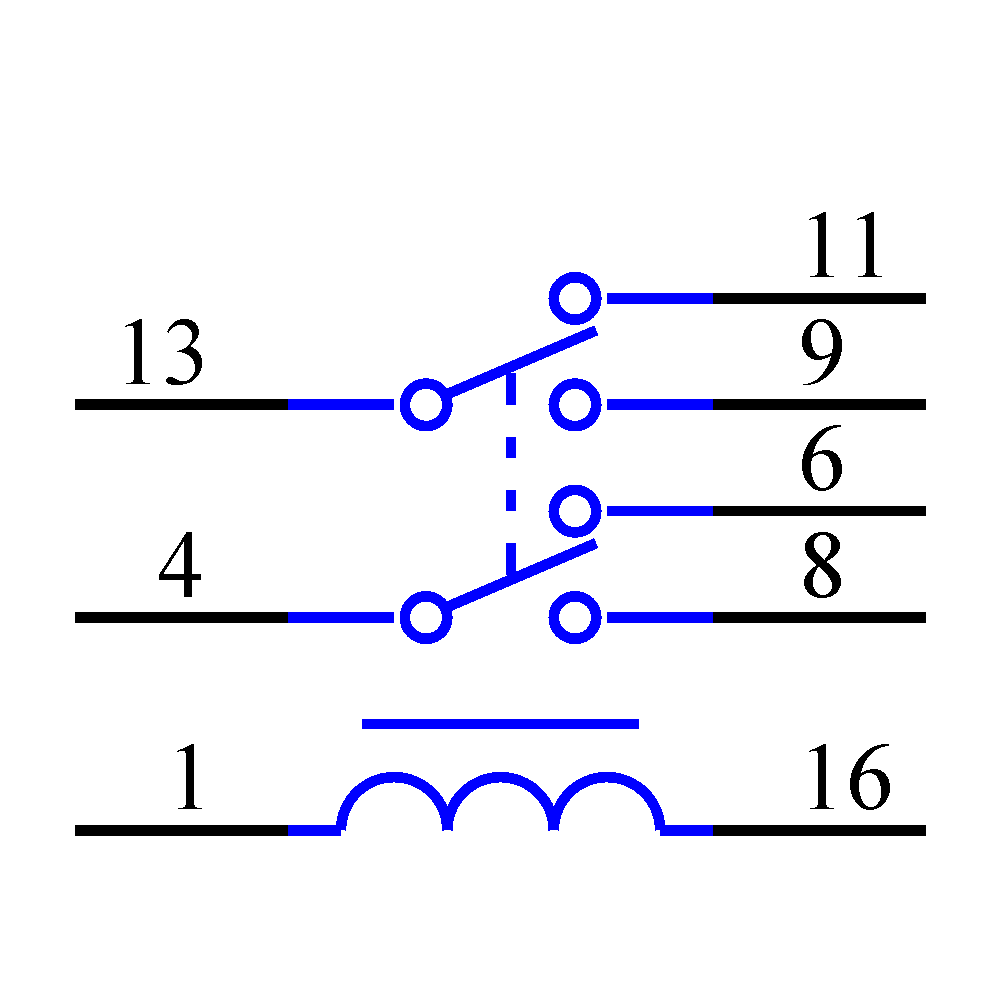

Symbol

G5V-2-DC48 Symbol - Omron

G5V-2-DC48 Symbol - Omron

G5V-2-DC48 Symbol - Omron

G5V-2-DC48 Symbol - Omron

‹ ›

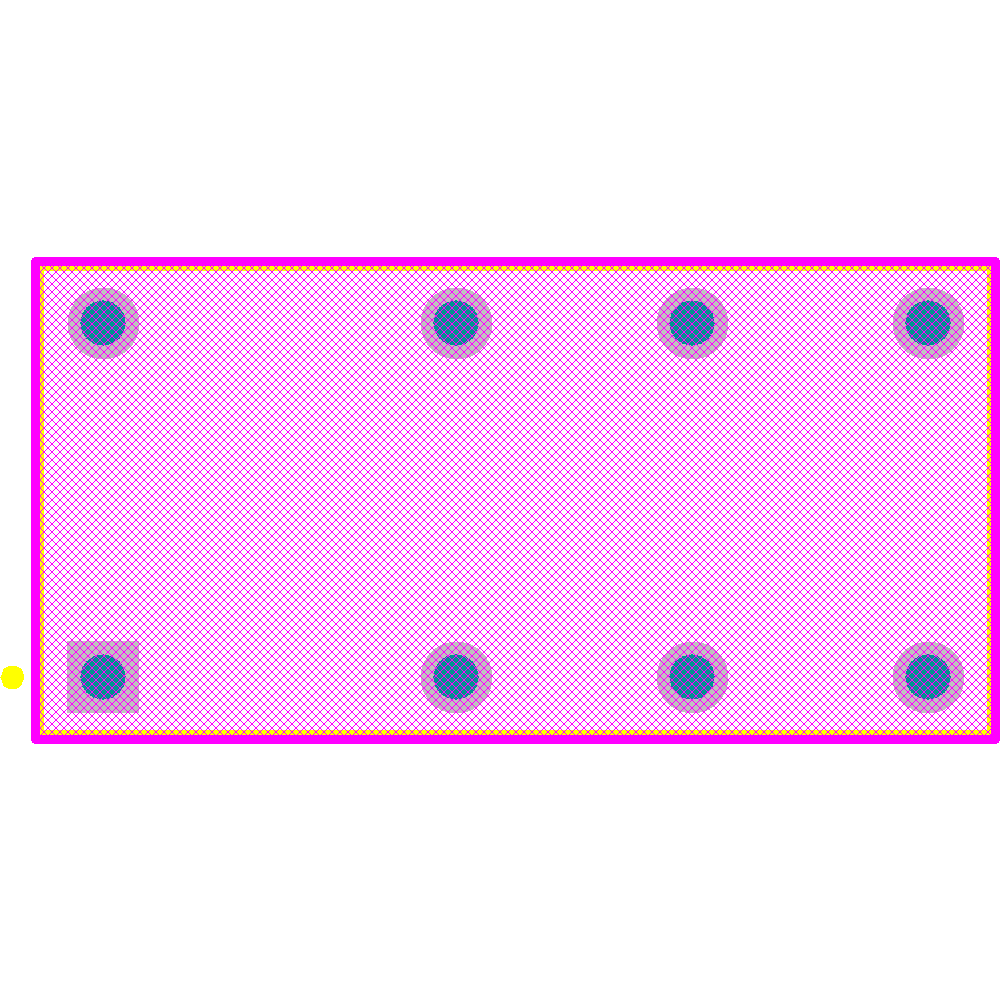

Footprint

G5V-2-DC48 Footprint - Omron

G5V-2-DC48 Footprint - Omron

G5V-2-DC48 Footprint - Omron

G5V-2-DC48 Footprint - Omron

‹ ›

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

RS

DE: 42

$

4.9433

4.9433

4.4872

4.179

3.8831

3.8831

RS

DE: 35

$

4.4872

4.179

3.8831

3.8831

Master Electronics

US: 1588

$

3.41

2.99

2.99

2.57

2.49

Onlinecomponents.com

US: 1588

$

3.41

2.99

2.99

2.57

2.49

Verical

US: 1580

$

3.5176

3.5176

3.0235

3.0235

Verical

US: 480

$

3.202

2.838

2.809

2.465

2.465

Arrow Electronics

US: 480

$

3.484

3.202

2.838

2.809

2.614

2.614

Farnell

DE: 253

$

4.179

3.7229

3.4393

3.4393

3.4393

3.4393

DigiKey

39-G5V-2DC48-ND

DE: 1361

$

4.0557

3.6144

3.3336

3.2193

2.8666

2.8666

TTI

US: 900

$

2.71

2.68

2.58

2.51

TTI

US: 900

$

2.71

2.68

2.58

2.51

Mouser

US: 1442

$

3.72

3.38

2.96

2.91

2.63

2.63

Chip One Stop Global

JP: 1588

$

5.33

4.46

4.46

3.05

2.77

Sager Electronics

US: 0

$

2.74

2.74

2.74

2.65

2.35

2.28

Conrad

DE: 24

$

4.9679

4.9679

4.9679

4.9679

4.9679

4.9679

Avnet

US: 0

$

2.3148

2.2116

element14 APAC

SG: 253

$

3.9763

3.6272

3.2782

3.2782

3.2782

3.2782

Newark

US: 253

$

4.33

4.08

3.76

3.71

3.66

3.66

Newark

US: 0

$

2.95

2.95

Heilind Americas

US: 0

$

2.3842

2.2849

Interstate Connecting Components

US: 0

$

2.3842

2.2849

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

UnikeyIC

SG: 42

$

5.8485

5.8485

5.7988

5.6847

5.3786

5.3786

Rapid Electronics

GB: 24

$

5.5523

5.5523

4.9263

4.6133

4.3276

4.3276

Chipsmall Limited

CN: 40000

$

5.376

4.8384

4.8384

3.0912

2.688

2.688

Bettlink

HK: 3853

$

3.2256

2.8295

2.8295

2.5723

2.2679

2.1395

Ansinor

CN: 2628

$

3.3425

3.3425

2.6485

2.383

2.383

Elcom Components

US: 56

$

1.36

1.36

1.36

1.36

1.36

1.36

Elcom Components

US: 56

$

1.36

1.36

1.36

1.36

1.36

1.36

Quest

US: 30

$

4.86

2.43

2.43

2.43

2.43

2.43

TodayComponents

OMRON-G5V-2-DC48

US: 129

$

2.26

2.22

2.18

2.02

2.02

2.02

Suntronic

CN: 5535

$
