G6DN-1A DC24 - Omron

Power Relay 24VDC 5A SPST-NO(20mm 5.08mm 12.5mm) THT

Technical Details

Ambient Temperature Range High	90°C
Coil Current	5mA
Coil Power	110mW
Coil Resistance	5.236kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	16.8V
Contact Current Rating	5A
Contact Material	Silver
Contact Plating	Gold
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	277V
Current Rating	5A
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	80kcycles
Height	12.5mm
Harmonized Tariff Schedule (HTS) Code	8536.49.00.50
Insulation Resistance	1GΩ
Introduction Date	2015-11-26
Length	20mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	90°C
Max Voltage Rating (DC)	125V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Terminals	4
Operate Time	10ms
REACH SVHC	Unknown
Relay Type	General Purpose
Release Time	5ms
Response Time	10ms
RoHS	Compliant
Sealable	RT3
Switching Current	5A
Termination	PC Pin
Throw Configuration	SPST

Compliance

RoHS : Unconfirmed

REACH SVHC : Unknown

Images

Omron G6DN-1A DC24 | Sager Electronics

Sager Electronics

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

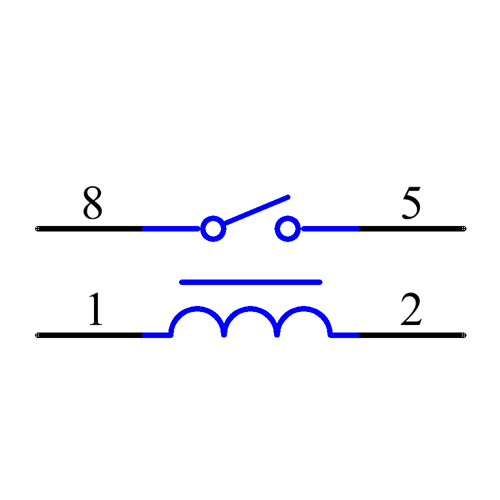

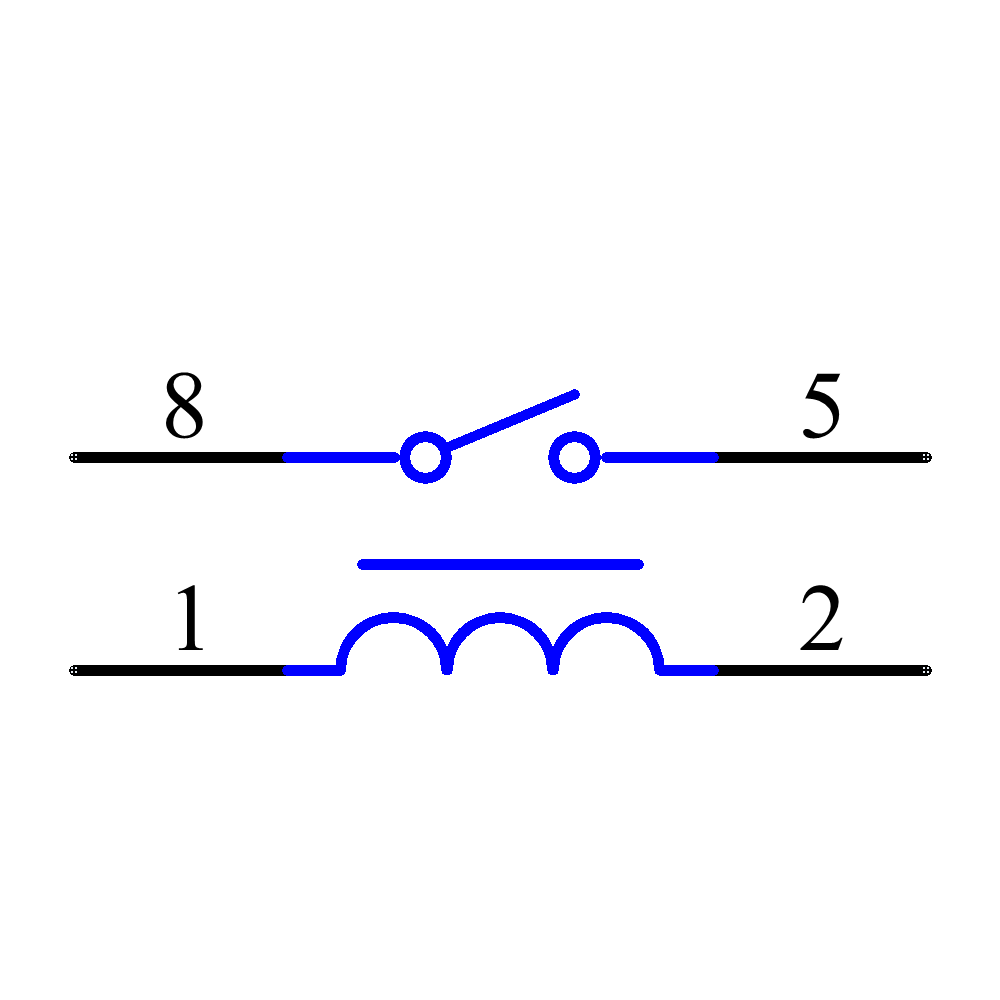

Symbol

G6DN-1A DC24 Symbol - Omron

G6DN-1A DC24 Symbol - Omron

G6DN-1A DC24 Symbol - Omron

G6DN-1A DC24 Symbol - Omron

‹ ›

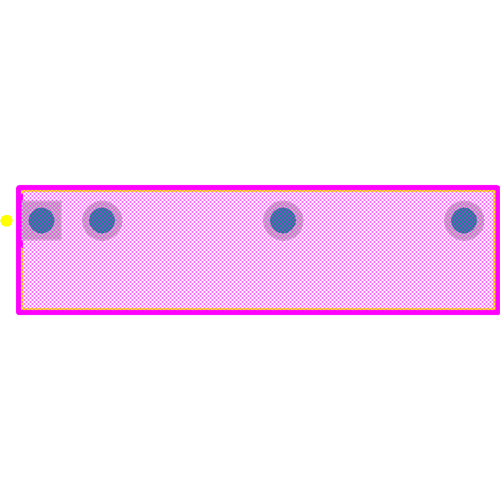

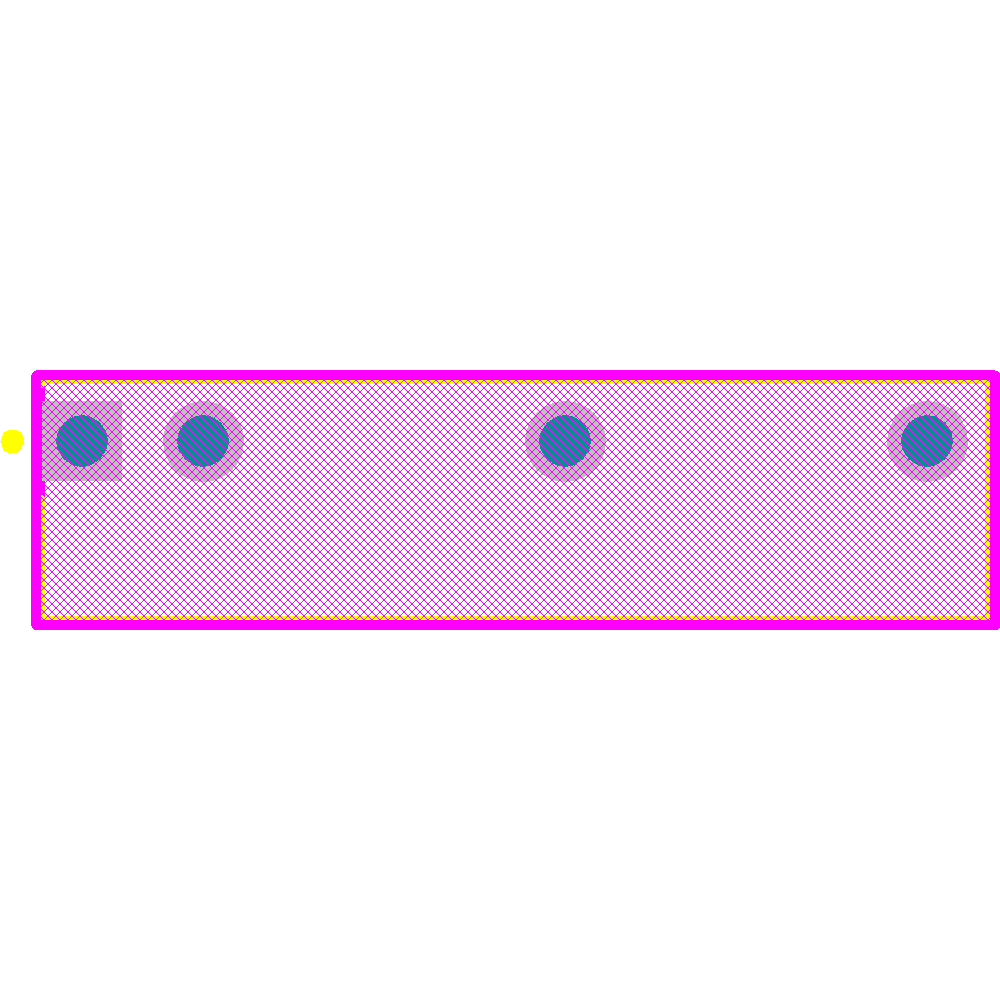

Footprint
