Technical Details
| Ambient Temperature Range High | 70°C |
| Coil Current | 9mA |
| Coil Power | 100mW |
| Coil Resistance | 1.315kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9.6V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 1A |
| Depth | 8.6mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Frequency | 3GHz |
| Height | 5.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Impedance | 50Ω |
| Insertion Loss (dB) | 0.6dB |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2012-01-11 |
| Lead Free | Lead Free |
| Length | 10.7mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Frequency | 3GHz |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 60V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 18 |
| Operate Time | 3ms |
| Power Consumption | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | RF |
| Release Time | 3ms |
| Response Time | 3ms |
| RoHS | Compliant |
| Switching Current | 1A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 60V |
| Weight | 700.006425mg |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

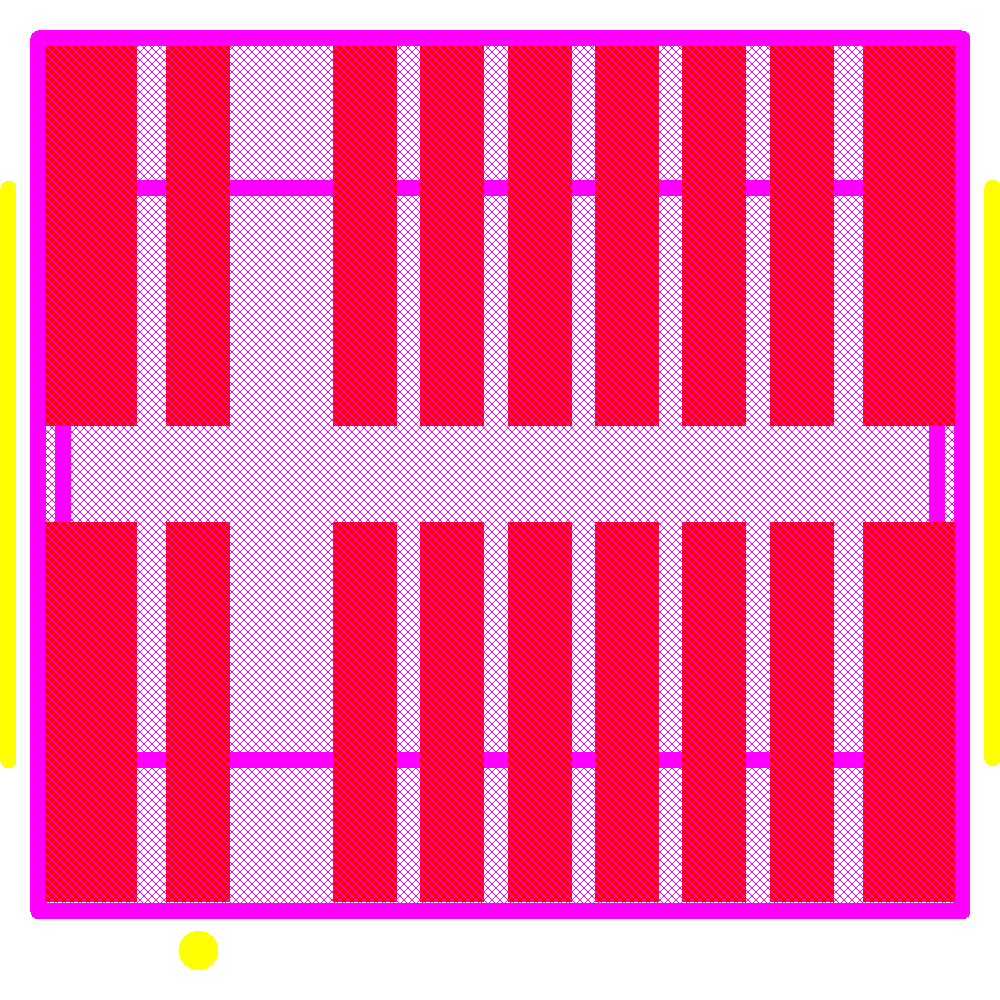

Images
