Technical Details
| Ambient Temperature Range High | 70°C |
| Coil Current | 21mA |
| Coil Power | 100mW |
| Coil Resistance | 237Ω |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 3.75V |
| Contact Current Rating | 300mA |
| Contact Material | Silver |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 2A |
| Electrical Life | 100kcycles |
| Height | 5.4mm |
| Insulation Resistance | 1GΩ |
| Length | 10mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 3ms |
| Power Consumption | 100mW |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 3ms |
| Response Time | 3ms |
| RoHS | Compliant |
| Sealable | SEALED TYPE |
| Switching Current | 1A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Weight | 700mg |
| Width | 6.5mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

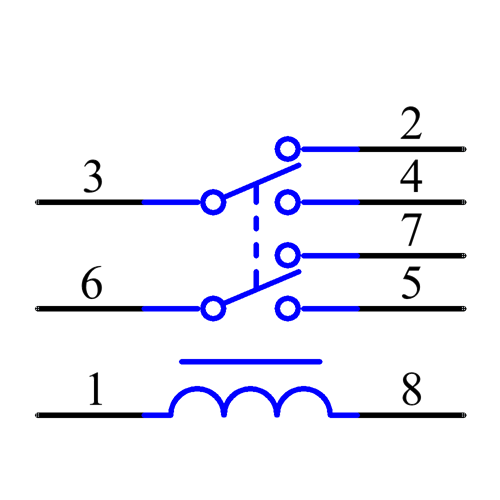

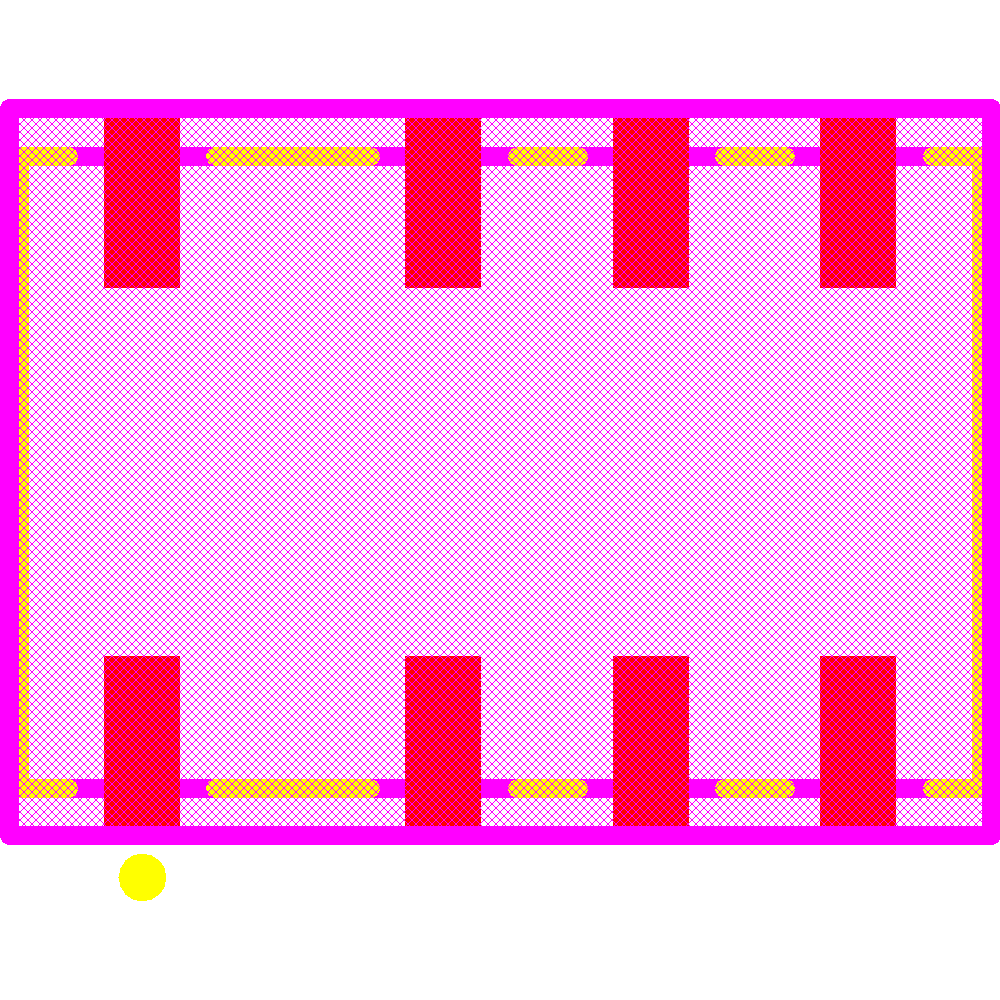

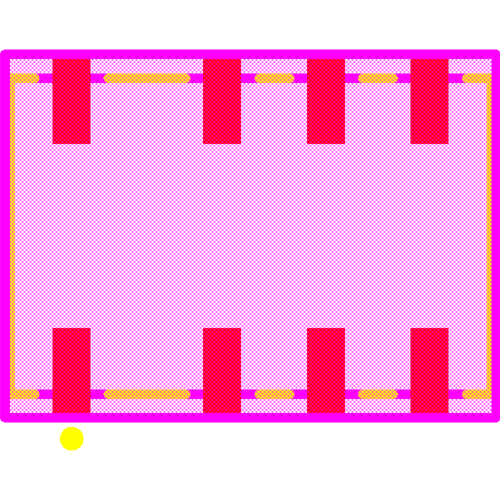

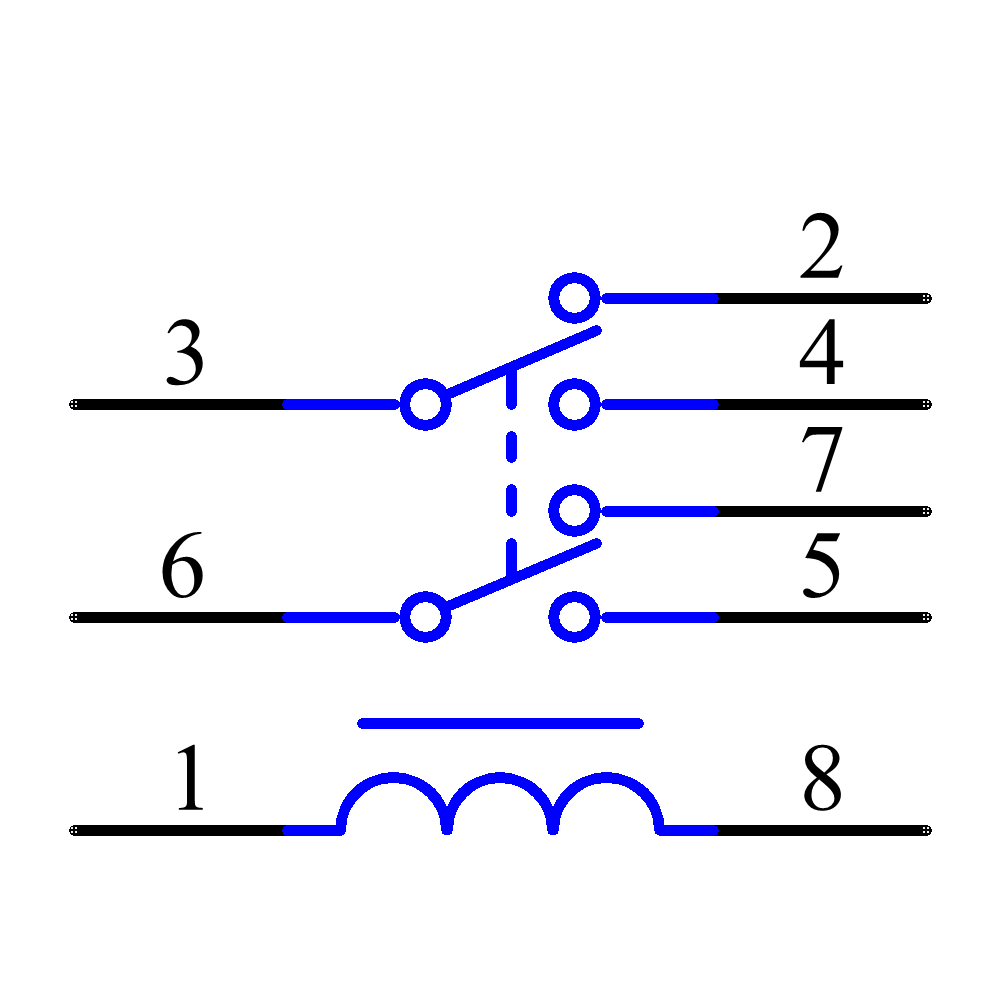

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| World Products | Production | ||
| World Products | Production | ||
| World Products | Production | ||
| World Products | Obsolete | ||
| Omron | Obsolete | ||
| World Products | Production | ||
| World Products | Production | ||
| Panasonic | Production | ||
| Omron | Obsolete | ||
| Omron | Obsolete |
