G6S-2F-DC5 - Omron

Electromechanical Relay 5VDC 178Ohm 2A DPDT (14.8x9.2x9.2)mm SMD Signal Relay

Technical Details

Ambient Temperature Range High	85°C
Coil Current	28mA
Coil Power	140mW
Coil Resistance	178Ω
Coil Type	Non-Latching
Coil Voltage (DC)	3.75V
Contact Current Rating	500mA
Contact Material	Silver
Contact Plating	Gold
Contact Resistance	75mΩ
Contact Voltage Rating (AC)	125V
Current Rating	2A
Depth	9.2mm
Electrical Life	500kcycles
Height	9.2mm
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	14.8mm
Lifecycle Status	Production
Max Current Rating	2A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	2
Number of Pins	8
Number of Terminals	8
Operate Time	4ms
Power Consumption	140mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	Telecom
Release Time	4.5ms
Response Time	4.5ms
RoHS	Compliant
Switching Current	2A
Termination	Gull Wing
Throw Configuration	DPDT
Voltage Rating (AC)	250V
Voltage Rating (DC)	220V
Weight	2g

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Omron G6S-2F-DC5 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

Sager Electronics

Lifecycle Status Indicator

Production

Symbol

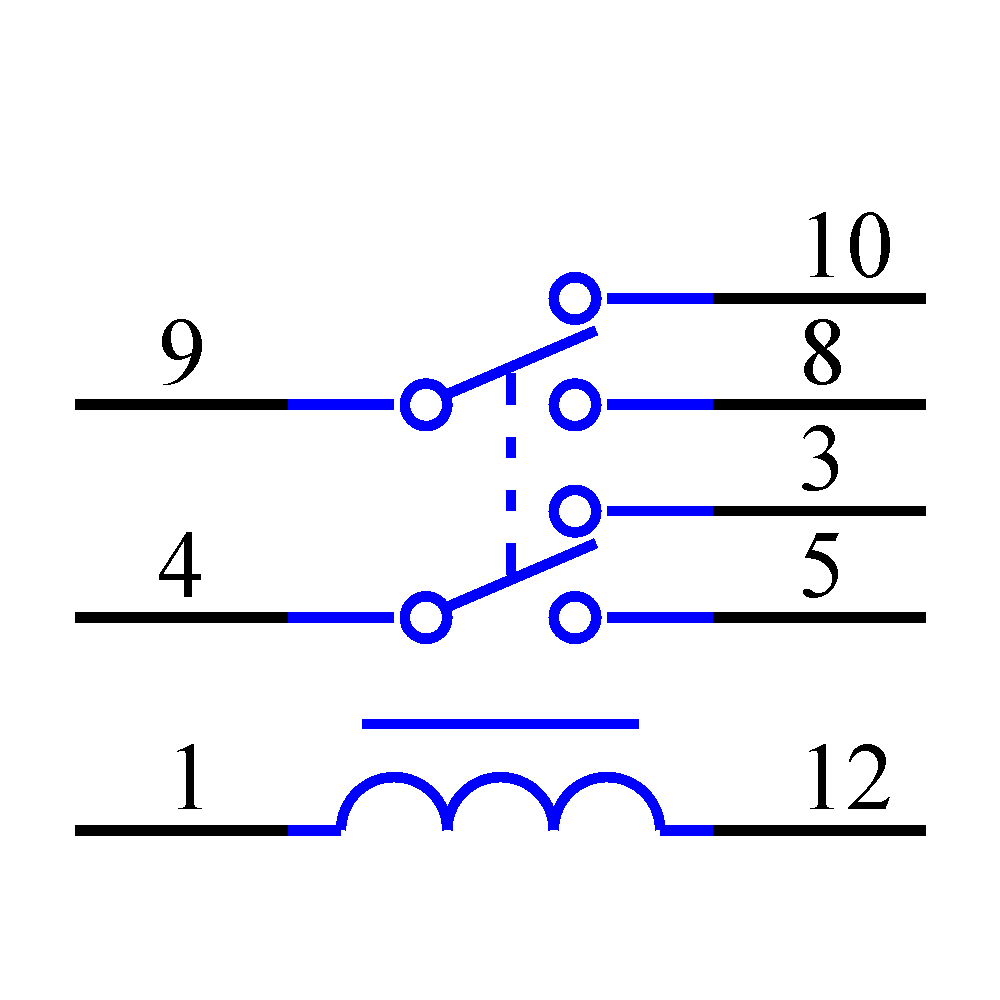

G6S-2F-DC5 Symbol - Omron

G6S-2F-DC5 Symbol - Omron

G6S-2F-DC5 Symbol - Omron

G6S-2F-DC5 Symbol - Omron

‹ ›

Footprint

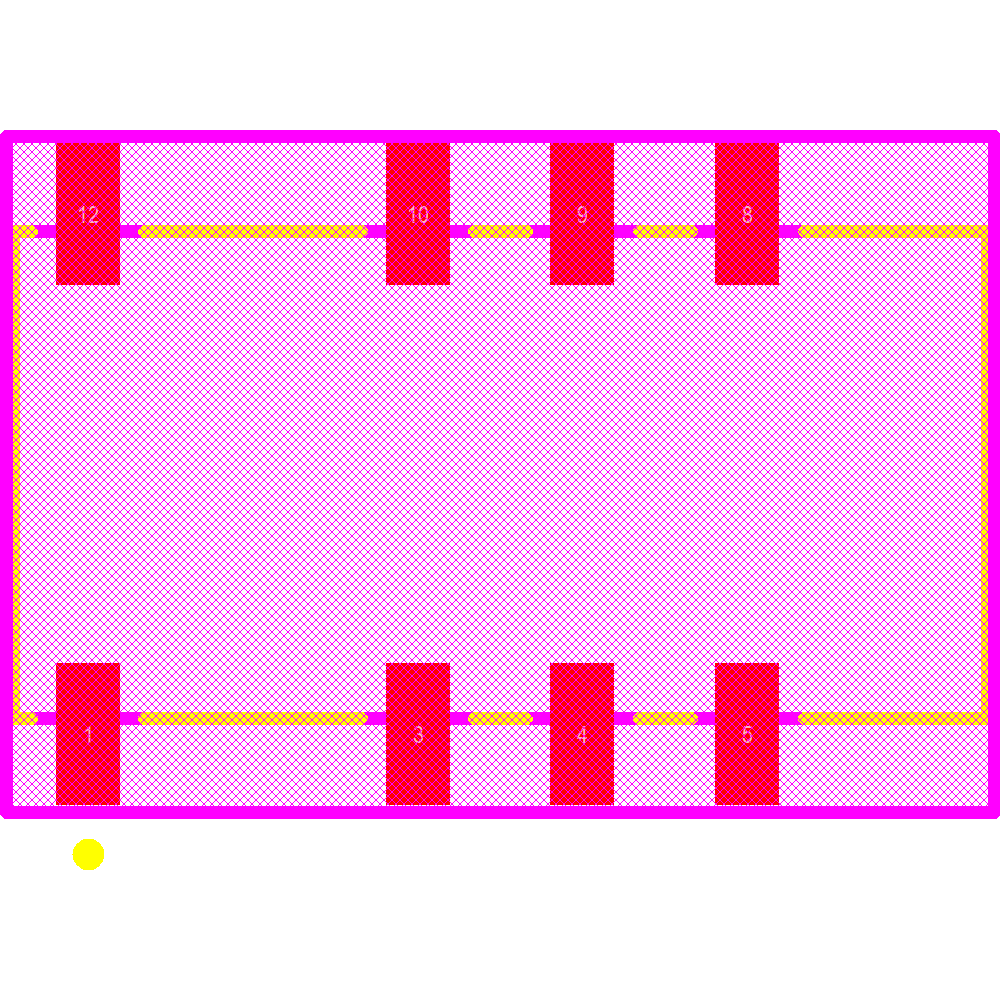

G6S-2F-DC5 Footprint - Omron

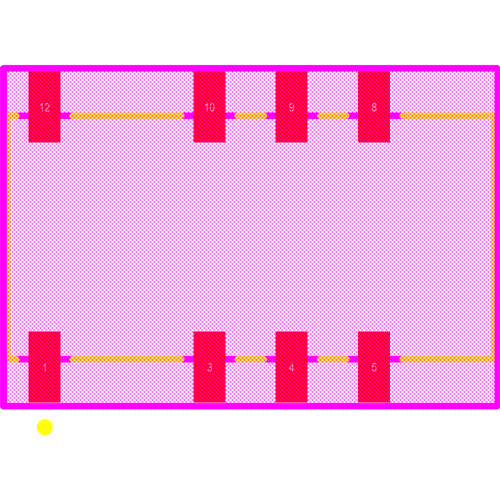

G6S-2F-DC5 Footprint - Omron
