G6S-2G-Y-TR-DC24 - Omron
EN60950 SMT RELAY | Omron Electronic Components G6S-2G-Y-TR DC24
Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 10mA |
| Coil Power | 230mW |
| Coil Resistance | 2.504kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 18V |
| Contact Current Rating | 500mA |
| Contact Material | Gold, Silver |
| Contact Resistance | 75mΩ |
| Contact Voltage Rating (AC) | 125V |
| Country of Origin | Japan |
| Current Rating | 2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Height | 9.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Introduction Date | 2007-03-06 |
| Length | 14.8mm |
| Lifecycle Status | Production |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Operate Time | 4ms |
| Packaging | Tape and Reel |
| Power Consumption | 230mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 4.5ms |
| Response Time | 4.5ms |
| RoHS | Compliant |
| Switching Current | 2A |
| Throw Configuration | DPDT |
| Weight | 2g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

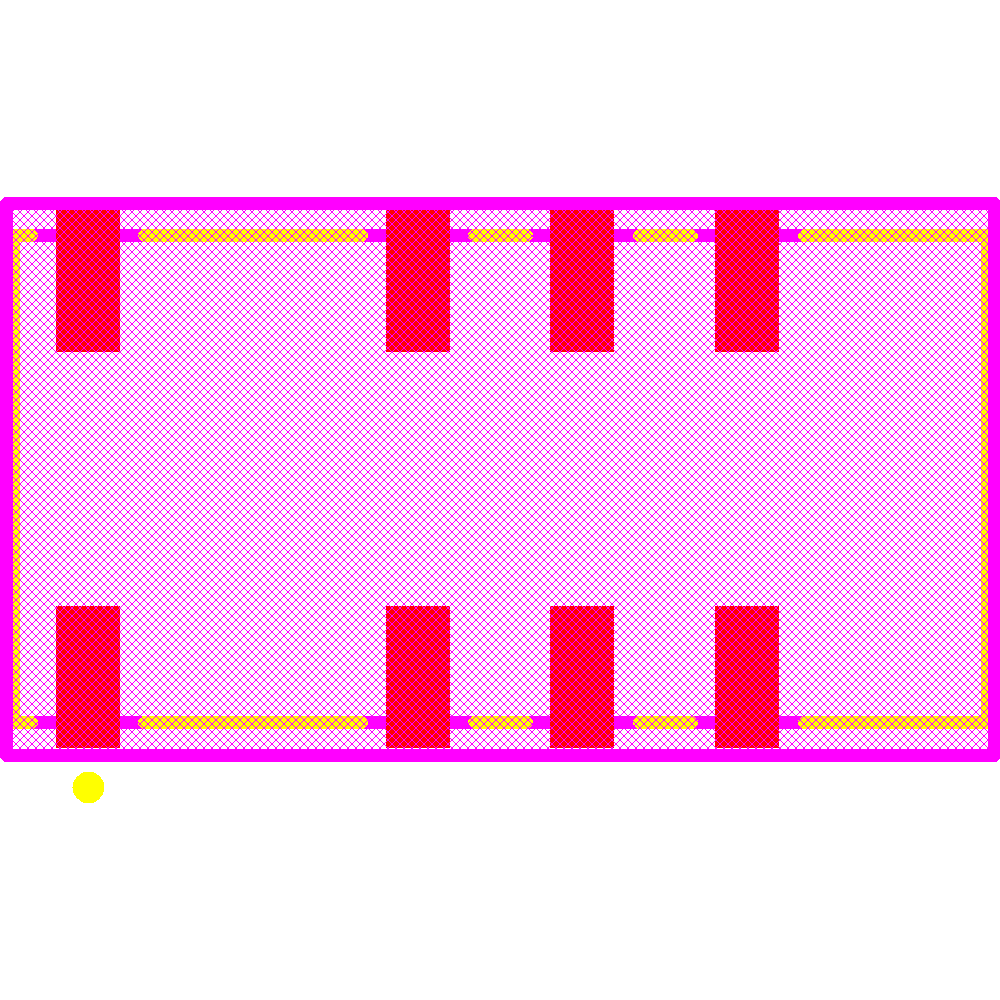

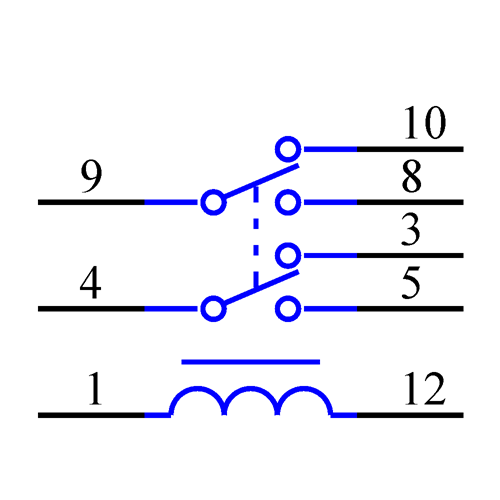

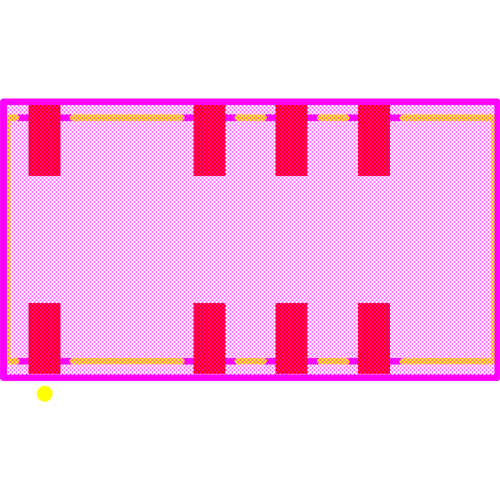

Images
