ADW1205W - Panasonic
Power/Signal Relay, SPST, Latched, 0.08A (Coil), 5VDC (Coil), 400mW (Coil), DC Input, AC Output
Technical Details
| Coil Current | 80mA |
| Coil Power | 400mW |
| Coil Resistance | 125Ω |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 4V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100Ω |
| Contact Voltage Rating (AC) | 250V |
| Depth | 10mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 18.8mm |
| Introduction Date | 2011-07-20 |
| Lead Free | Lead Free |
| Length | 24mm |
| Lifecycle Status | Production |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Min Operating Temperature | -40°C |
| Number of Pins | 5 |
| Operate Time | 15ms |
| Packaging | Box |
| Power Consumption | 400mW |
| Power Rating | 400mW |
| Radiation Hardening | No |
| Ratings | IP54 |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 15ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Switching Capacity | 2kW |
| Switching Current | 8A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 8g |
| Width | 10mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

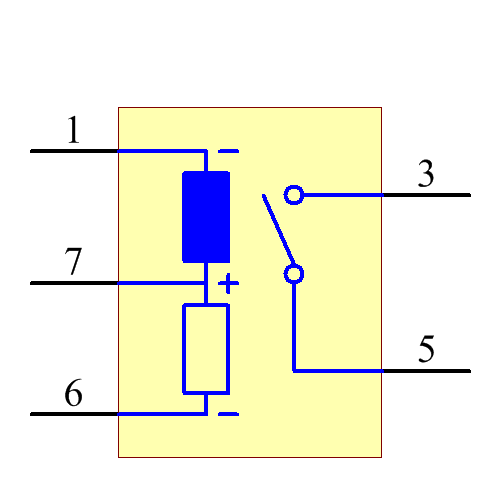

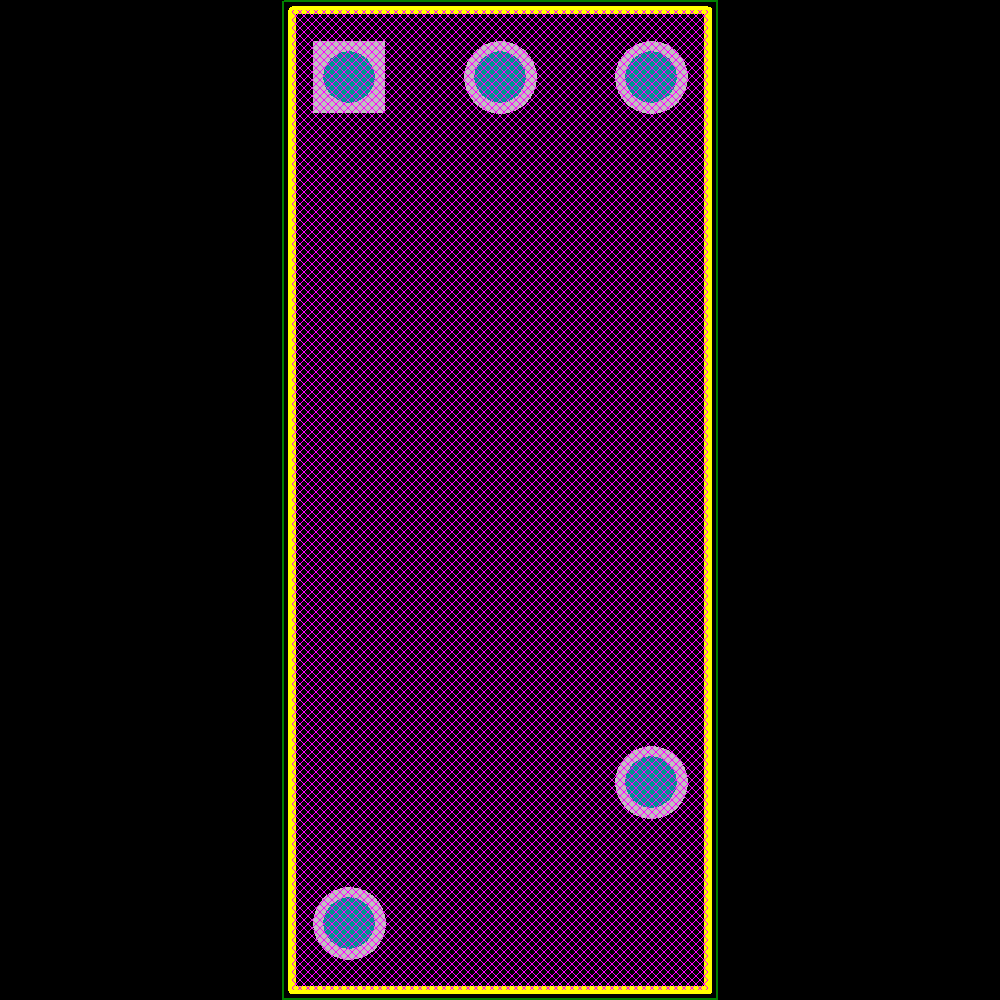

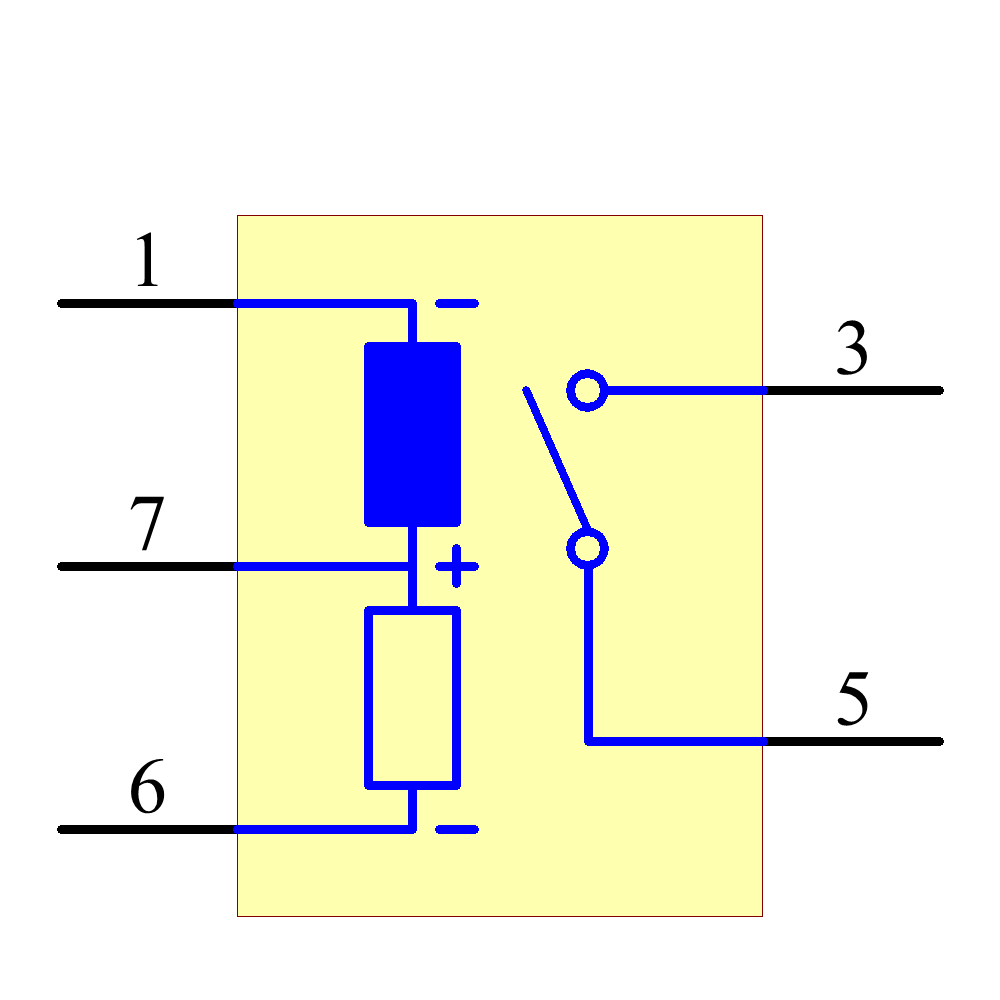

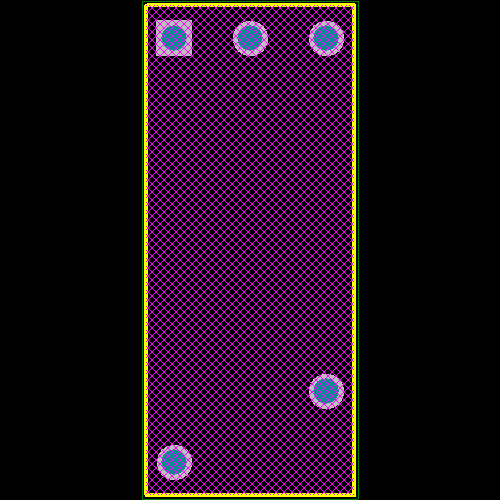

Images
