Coil Current	33.3mA
Coil Power	400mW
Coil Resistance	360Ω
Coil Type	Latching, Dual Coil
Coil Voltage (DC)	9.6V
Contact Current Rating	16A
Contact Material	Silver, Tin
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	277V
Depth	10mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	50kcycles
Height	18.8mm
Insulation Resistance	1GΩ
Introduction Date	2012-10-29
Lead Free	Lead Free
Length	24mm
Lifecycle Status	Production
Max Current Rating	8A
Max Operating Temperature	70°C
Max Voltage Rating (AC)	250V
Min Operating Temperature	-40°C
Number of Pins	5
Number of Terminals	5
Operate Time	15ms
Power Consumption	400mW
Power Rating	400mW
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	15ms
Response Time	15ms
RoHS	Compliant
Termination	PC Pin
Throw Configuration	SPST
Weight	8g
Width	24mm

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator
Panasonic	ADW1106HT	Production
Panasonic	ADW1212T	Production
Panasonic	ADW1105HT	Production
Panasonic	ADW1205HT	Production
Panasonic	ADW1224T	Production
Panasonic	ADW1203HT	Production
Panasonic	ADW1109HT	Production
Panasonic	ADW1205T	Production
Panasonic	ADW1212HT	Production
Panasonic	ADW1209HT	Production

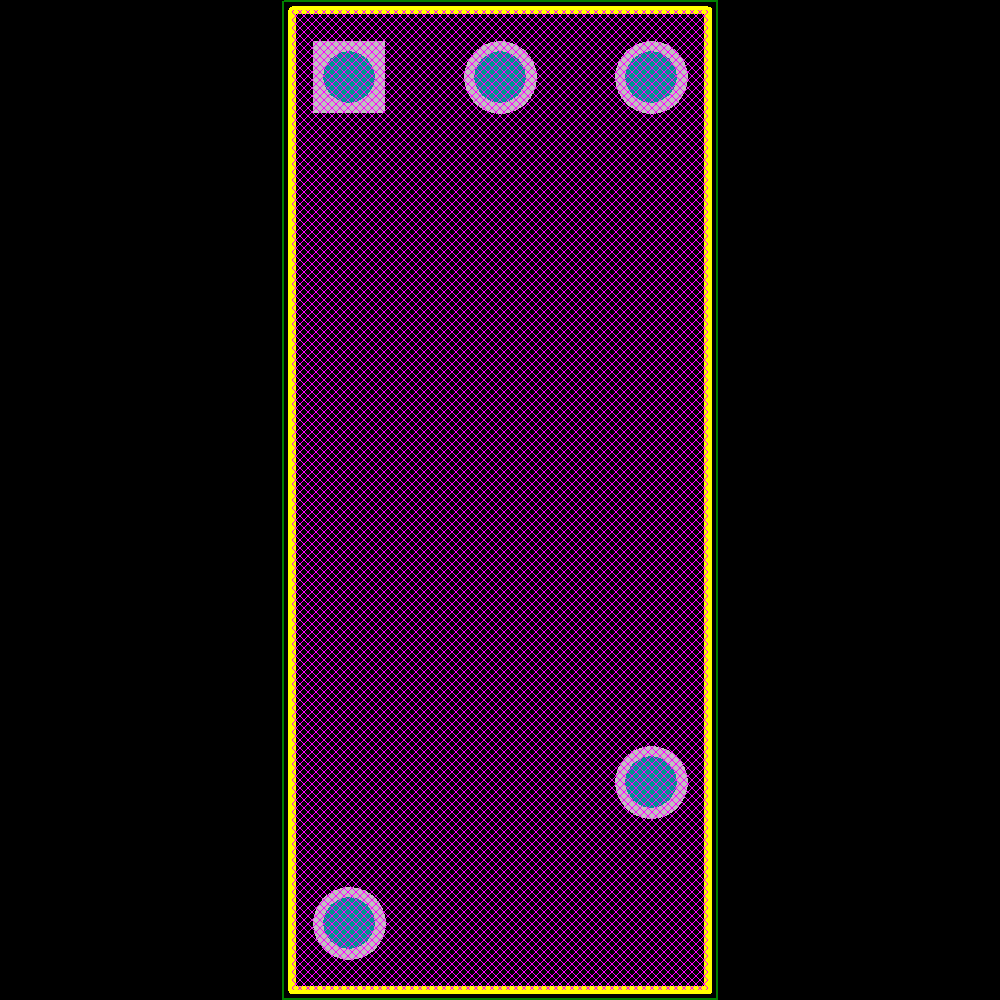

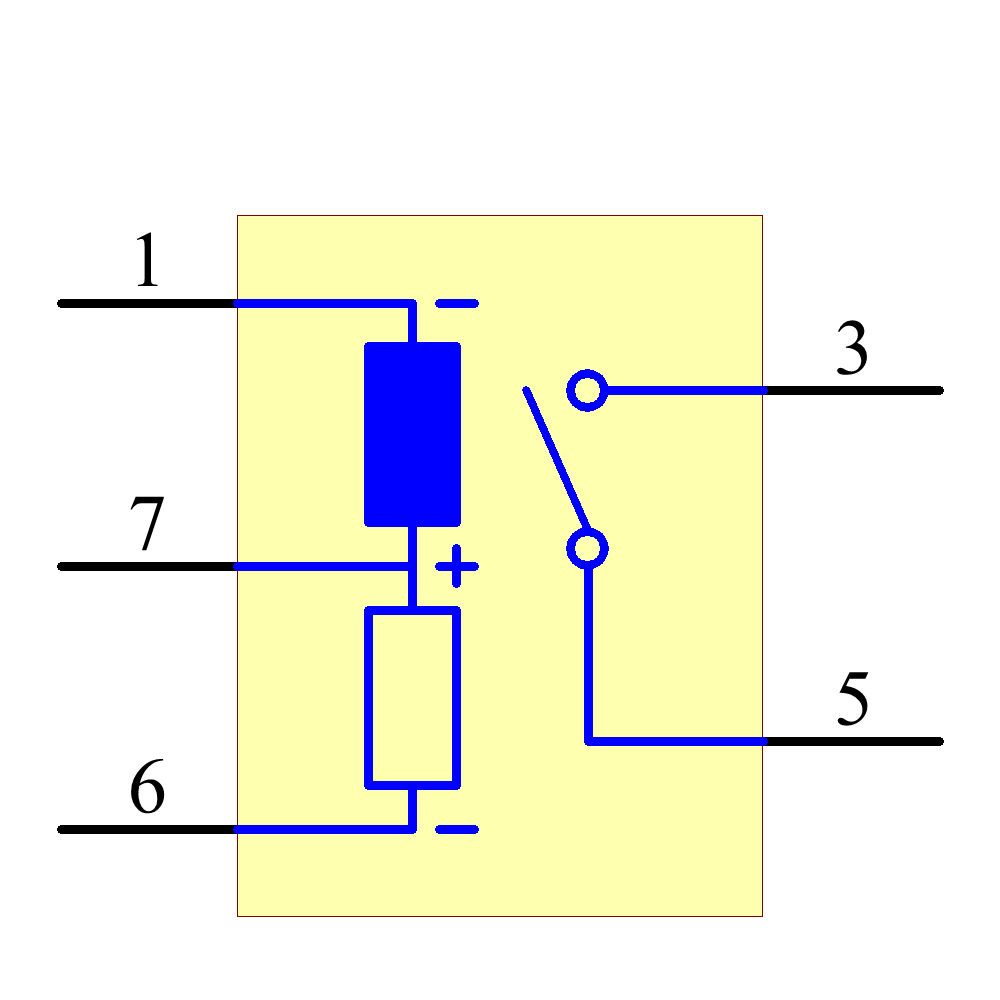

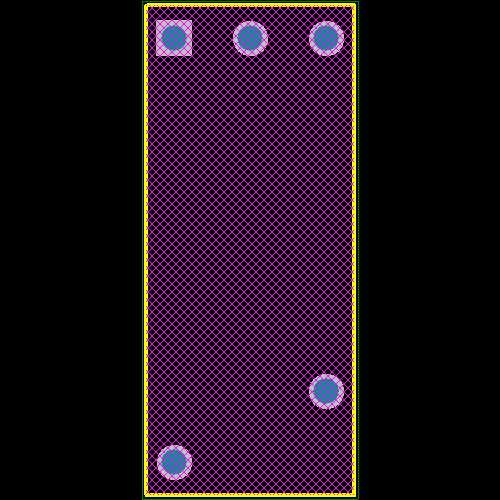

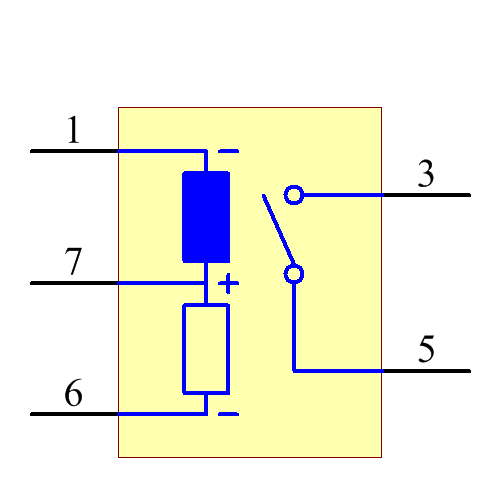

ADW1212TW - Panasonic

Power Relay 12VDC 8A SPST-NO(24x10x18.8)mm THT
