AGN200A09Z - Panasonic
AGN Series High Sensitivity 1 A DPDT 9 VDC Surface Mount Signal Relay

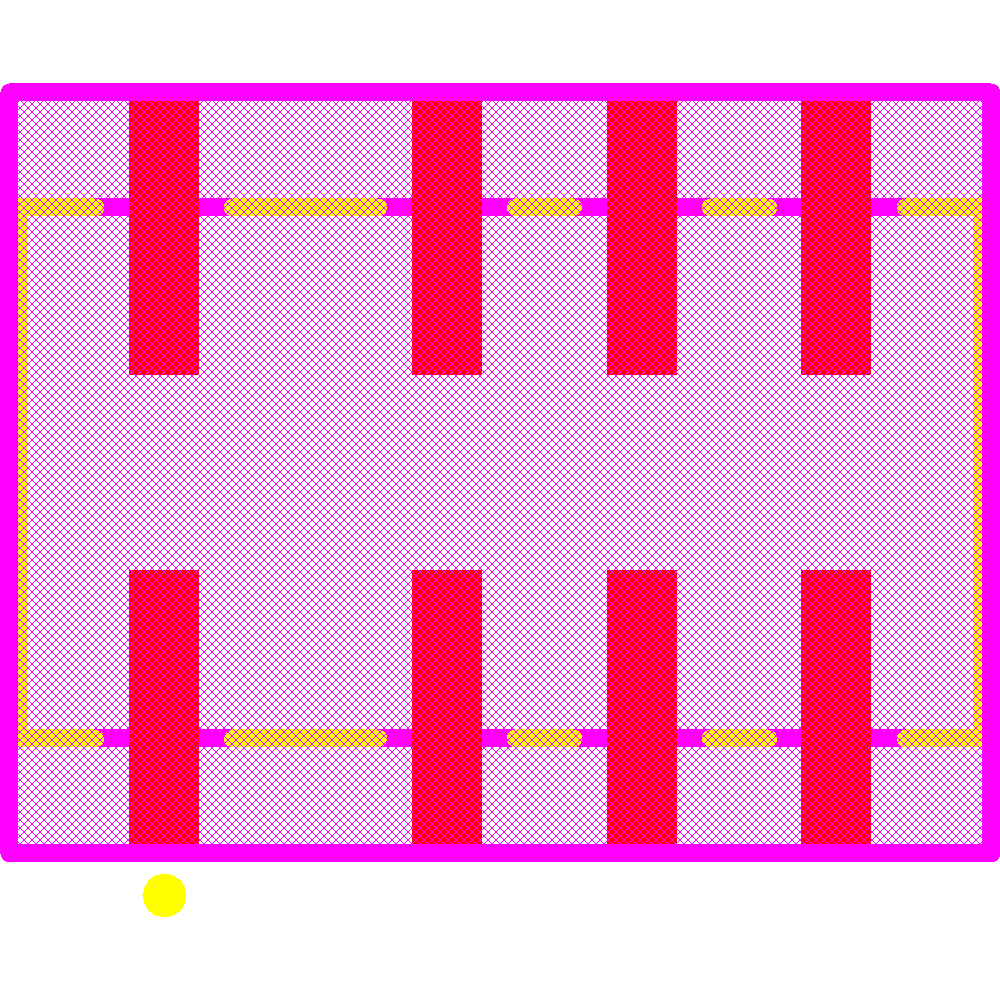

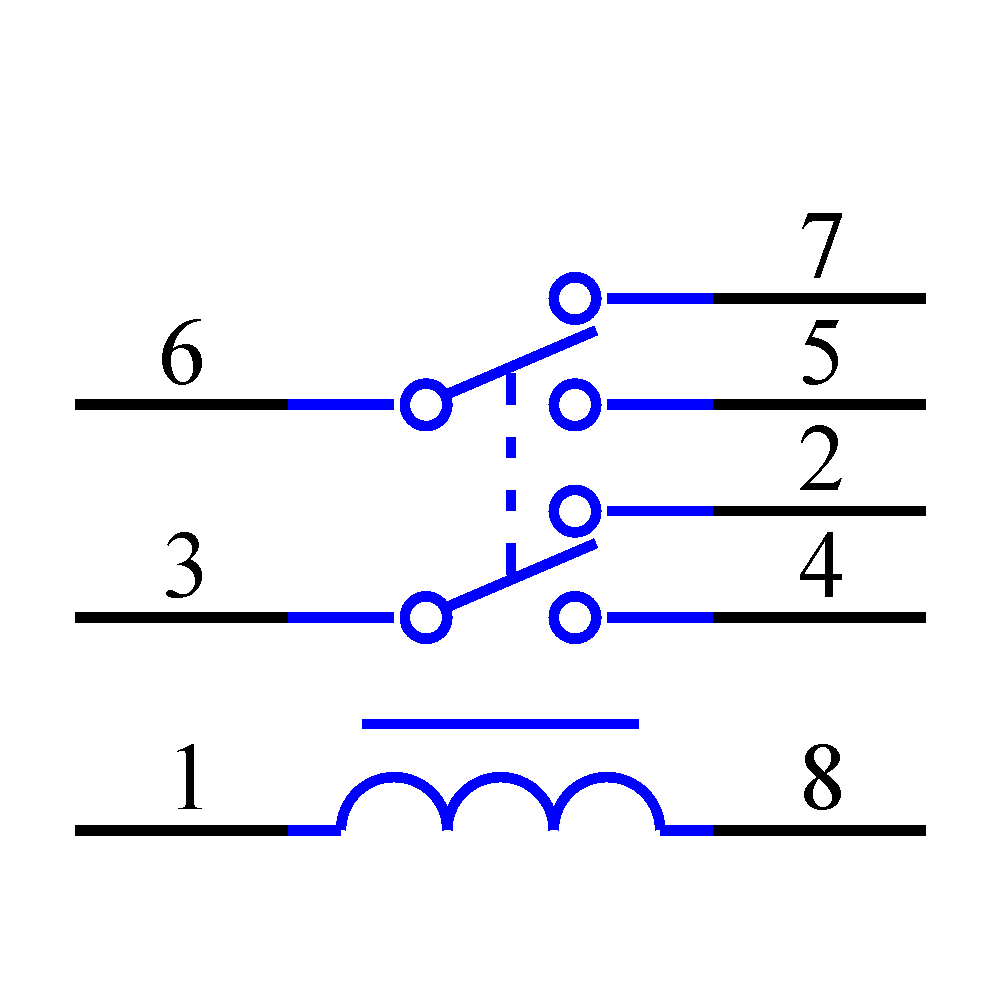

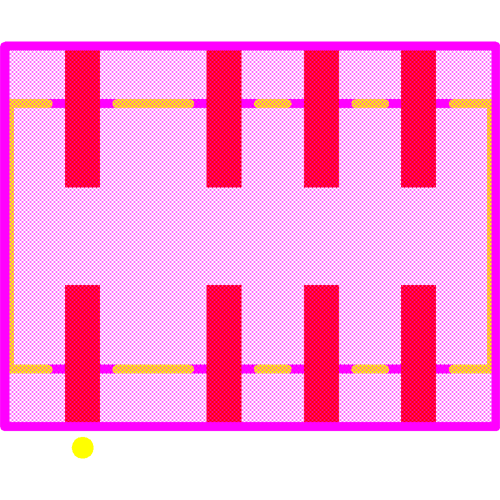

Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 16mA |
| Coil Power | 140mW |
| Coil Resistance | 579Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6.75V |
| Contact Current Rating | 1A |
| Contact Material | Gold, Silver |
| Contact Voltage Rating (AC) | 125V |
| Country of Origin | Japan |
| Current Rating | 1A |
| Depth | 7.4mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 9mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.49.00.50 |
| Introduction Date | 2006-02-25 |
| Lead Free | Lead Free |
| Length | 10.6mm |
| Lifecycle Status | Production |
| Max Current Rating | 1A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 110V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Operate Time | 4ms |
| Packaging | Cut Tape (CT) |
| Power Consumption | 140mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 4ms |
| Response Time | 4ms |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Switching Current | 1A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 110V |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes
