AGQ200A12Z - Panasonic

Electromechanical Relay 12VDC 1.028KOhm 2A DPDT (10.6x8.4x5.4)mm SMD General Purpose Relay

Technical Details

Ambient Temperature Range High	85°C
Coil Current	12mA
Coil Power	140mW
Coil Resistance	1.028kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	9V
Contact Current Rating	2A
Contact Material	Gold, Silver
Contact Plating	Gold
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	125V
Current Rating	2A
Depth	8.4mm
Electrical Life	100kcycles
Height	5.4mm
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	10.6mm
Lifecycle Status	Production
Max Current Rating	2A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	125V
Max Voltage Rating (DC)	110V
Min Operating Temperature	-40°C
Mount	Surface Mount
Number of Contacts	2
Number of Pins	8
Number of Terminals	8
Operate Time	4ms
Packaging	Tape and Reel
Power Consumption	140mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	Telecom
Release Time	4ms
Response Time	4ms
RoHS	Compliant
Sealable	WATER PROOF
Switching Current	2A
Termination	Gull Wing
Throw Configuration	DPDT
Voltage Rating (AC)	125V
Voltage Rating (DC)	110V
Weight	1g
Width	7.2mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Panasonic AGQ200A12Z | Future Electronics

Future Electronics

Datasheets

Future Electronics

Onlinecomponents.com

Lifecycle Status Indicator

Production

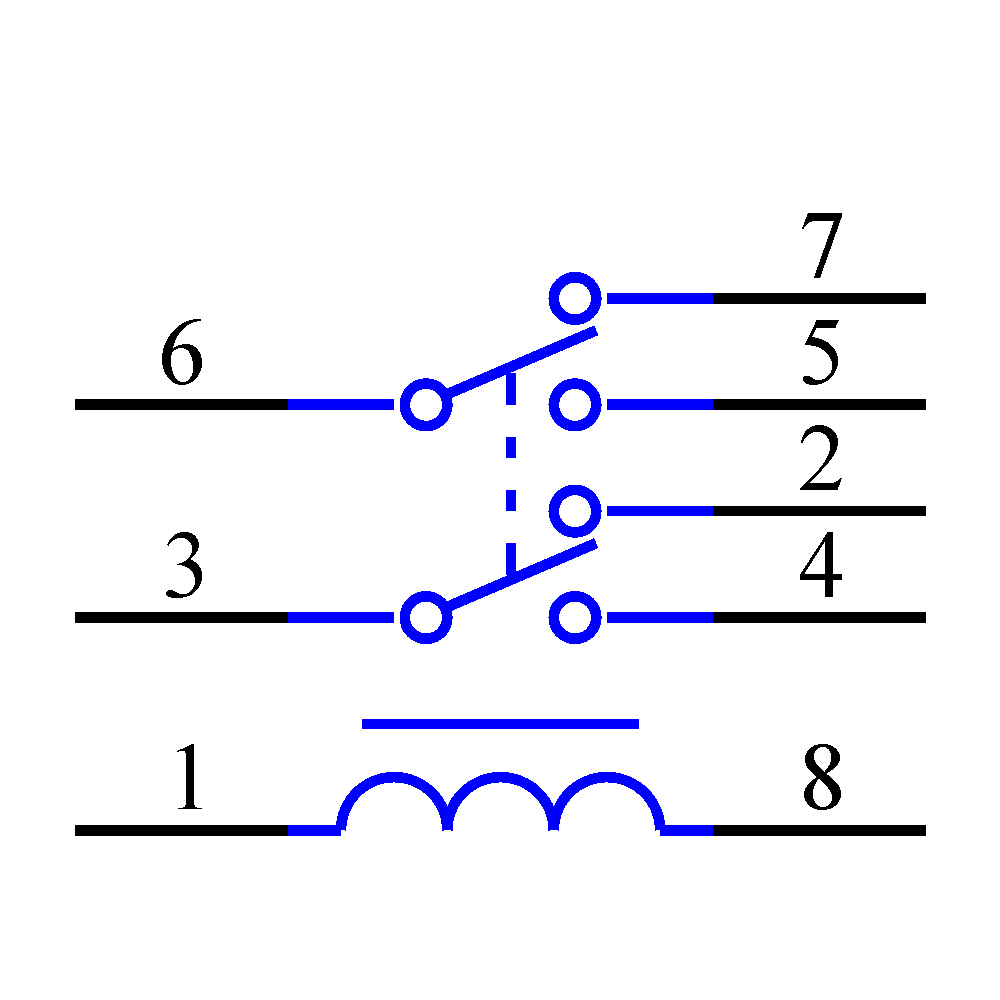

Symbol

AGQ200A12Z Symbol - Panasonic

AGQ200A12Z Symbol - Panasonic

AGQ200A12Z Symbol - Panasonic

AGQ200A12Z Symbol - Panasonic

‹ ›

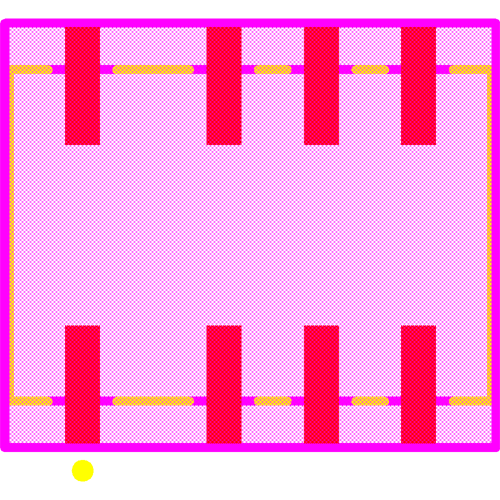

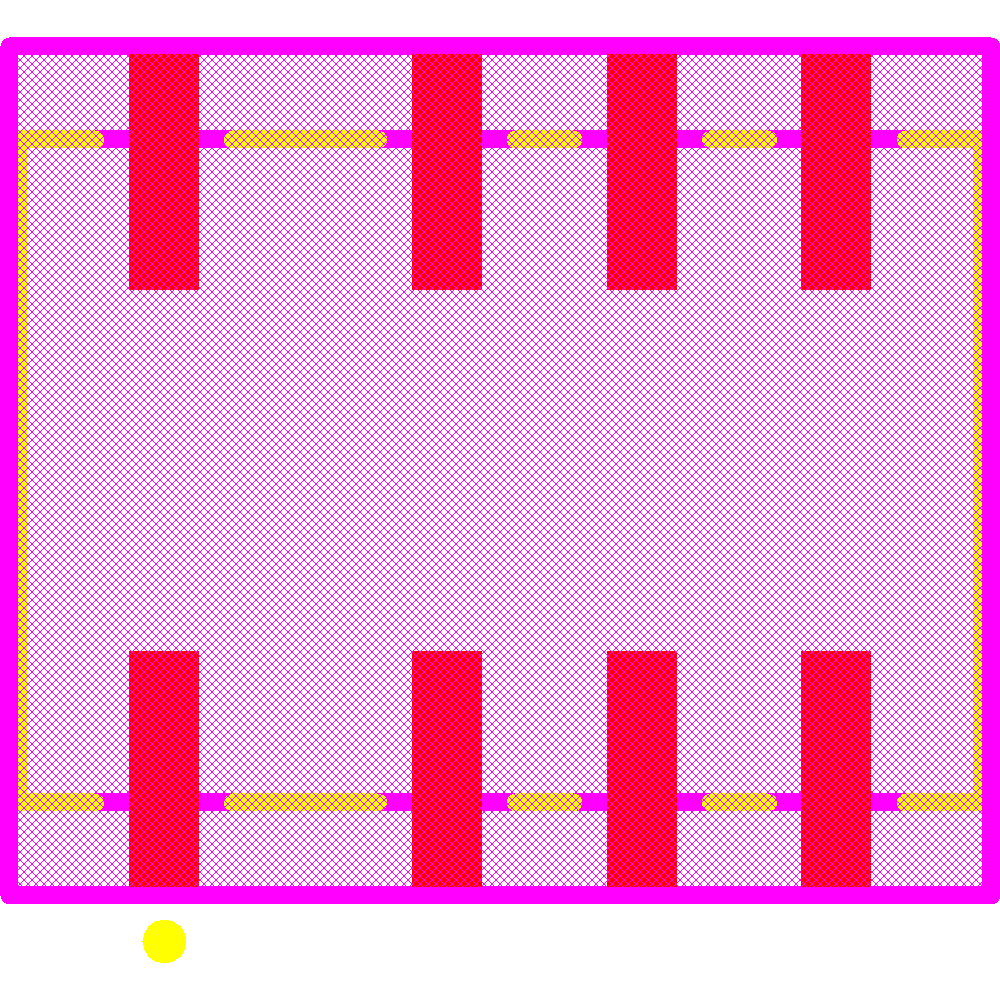

Footprint
