AGQ210S4HZ - Panasonic
AgPd+Gold plating 4.5V DPDT (2 Form C) SMD, 7.2x10.6mm Magnetic Latching Relays ROHS
Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 22mA |
| Coil Power | 100mW |
| Coil Resistance | 202.5Ω |
| Coil Type | Latching, Single Coil |
| Coil Voltage (DC) | 3.375V |
| Contact Current Rating | 2A |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 125V |
| Current Rating | 2A |
| Depth | 7.2mm |
| Electrical Life | 100kcycles |
| Height | 5.4mm |
| Insulation Resistance | 1GΩ |
| Lead Free | Lead Free |
| Length | 10.6mm |
| Lifecycle Status | Production |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 110V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 4ms |
| Packaging | Tape and Reel |
| Power Consumption | 100mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 4ms |
| Response Time | 4ms |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Switching Current | 2A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 110V |
| Weight | 1g |
| Width | 7.2mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

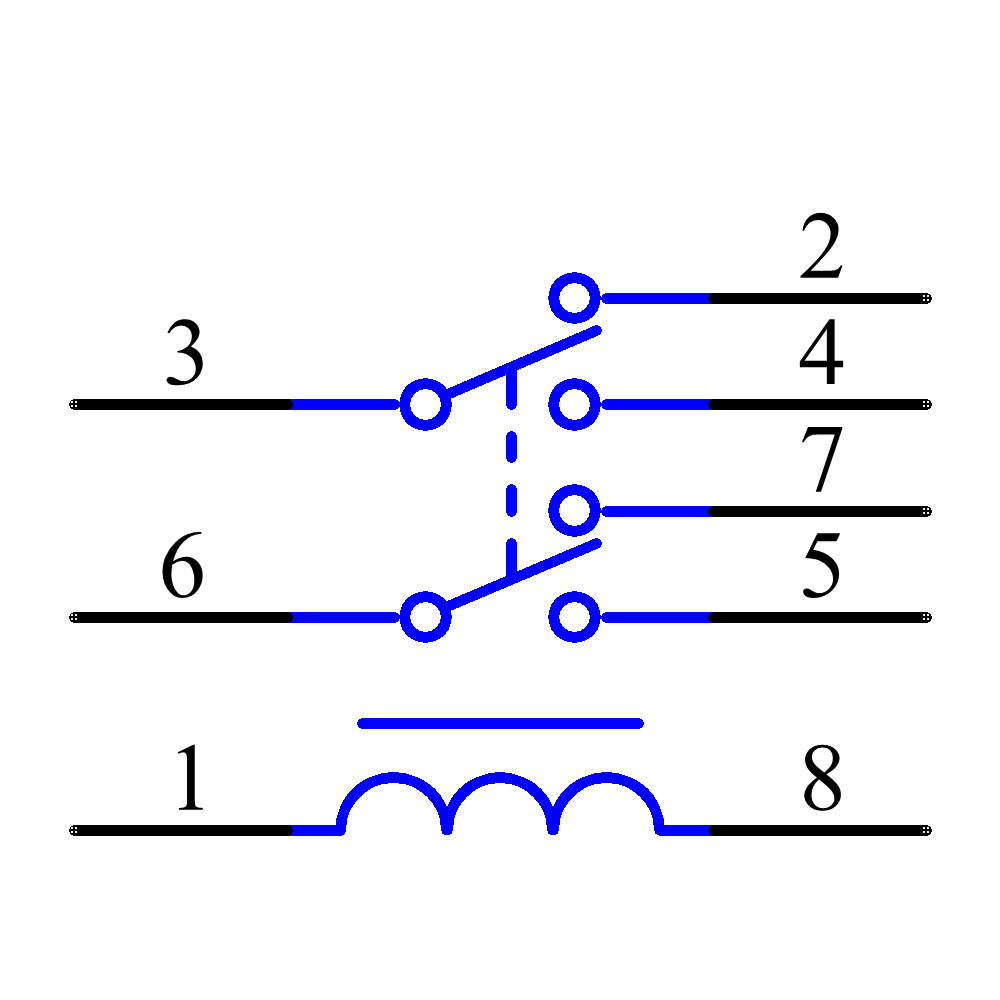

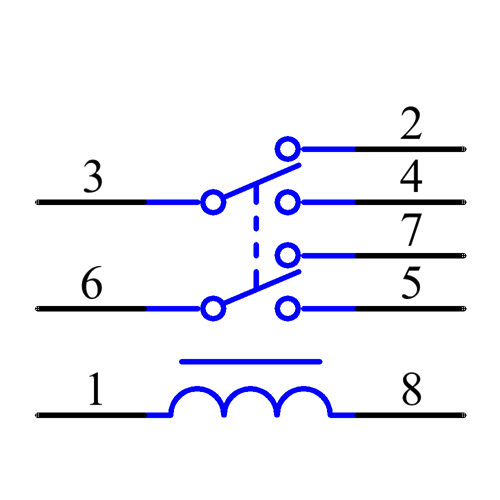

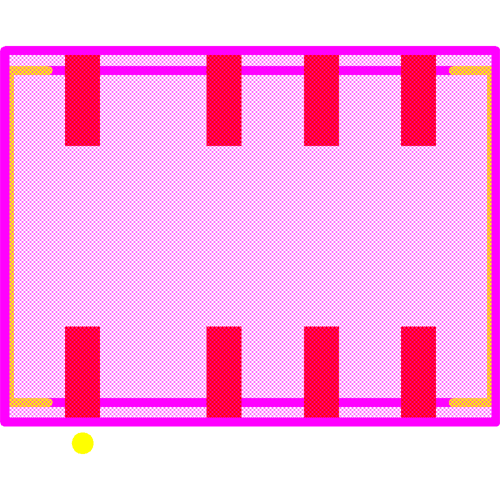

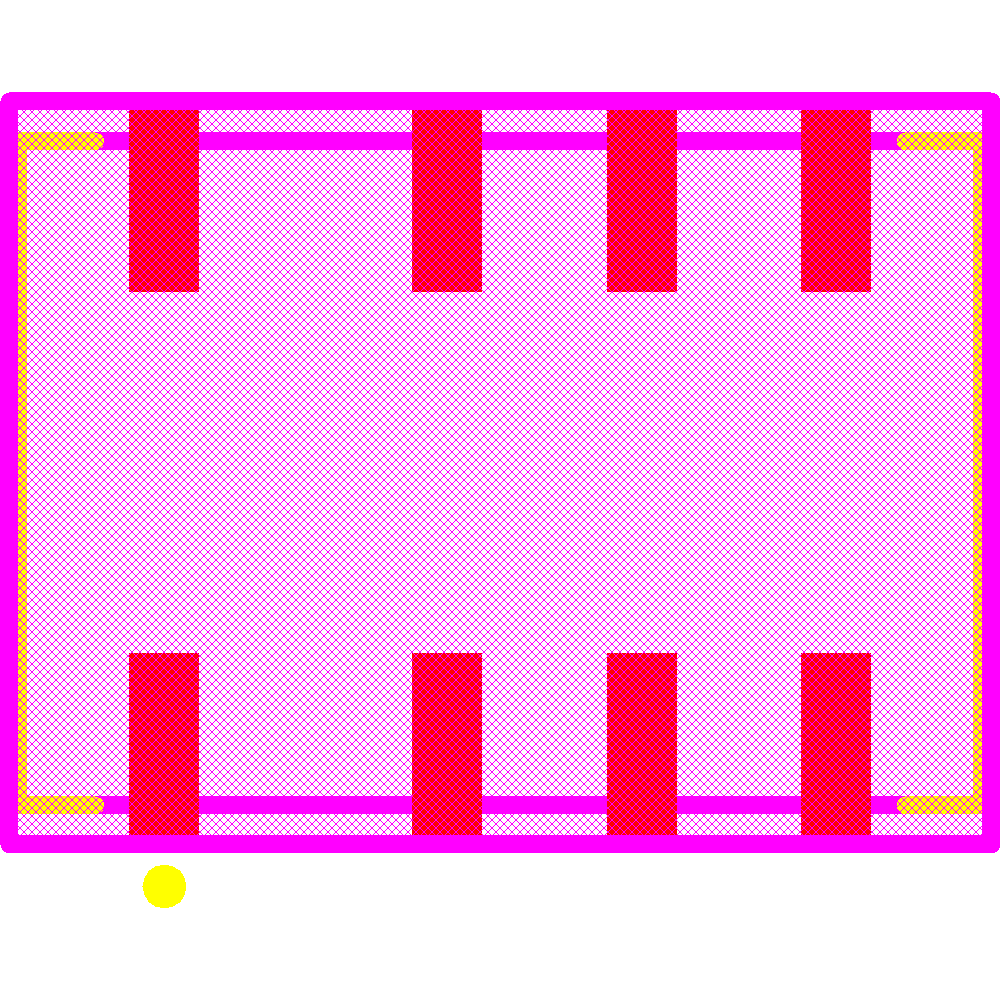

Images
RS
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panasonic | Production | ||
| World Products | Production | ||
| World Products | Production | ||
| World Products | Production | ||
| World Products | Obsolete | ||
| Omron | Obsolete | ||
| World Products | Production | ||
| World Products | Production | ||
| Panasonic | Production | ||
| Omron | Obsolete |
