Electromechanical > Relays > Power Relays

ALDP109W - Panasonic

Electromechanical Relay SPST-NO 5A 9VDC 405Ohm Through Hole

Technical Details

Coil Current	22mA
Coil Power	200mW
Coil Resistance	405Ω
Coil Type	Non-Latching
Coil Voltage (DC)	6.75V
Contact Current Rating	5A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	277V
Depth	7.2mm
Electrical Life	100kcycles
Height	15.3mm
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	20.5mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	277V
Min Operating Temperature	-40°C
Number of Pins	4
Number of Terminals	4
Operate Time	10ms
Packaging	Box
Power Rating	200mW
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	10ms
Response Time	10ms
RoHS	Compliant
Schedule B	8536490050, 8536490050\|8536490050\|8536490050\|8536490050\|8536490050
Switching Capacity	1.385kW
Switching Current	5A
Termination	PC Pin
Throw Configuration	SPST
Voltage Rating (AC)	277V

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Panasonic ALDP109W | RS

RS

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

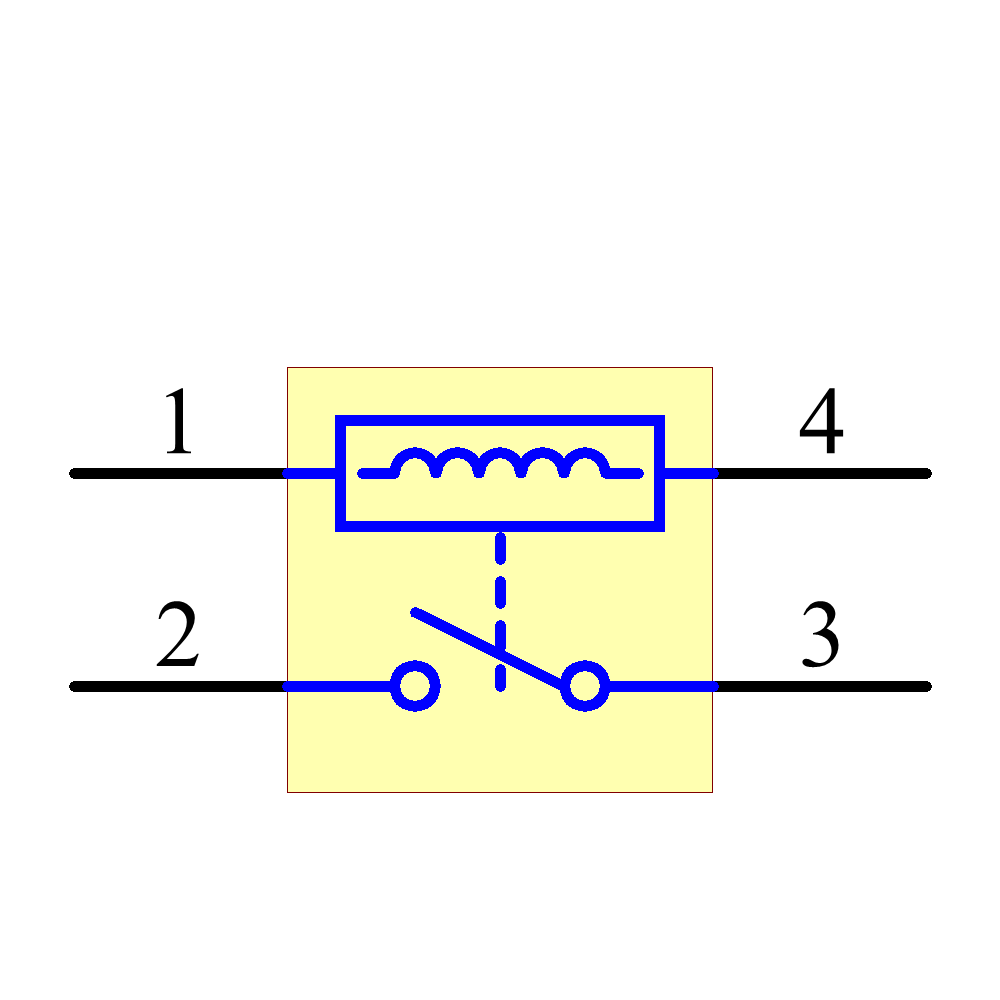

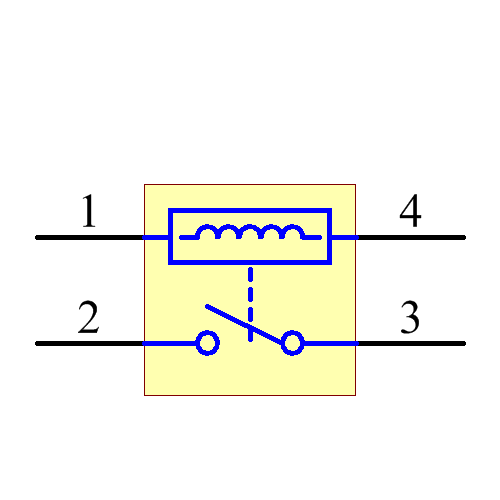

Symbol

ALDP109W Symbol - Panasonic

ALDP109W Symbol - Panasonic

ALDP109W Symbol - Panasonic

ALDP109W Symbol - Panasonic

‹ ›

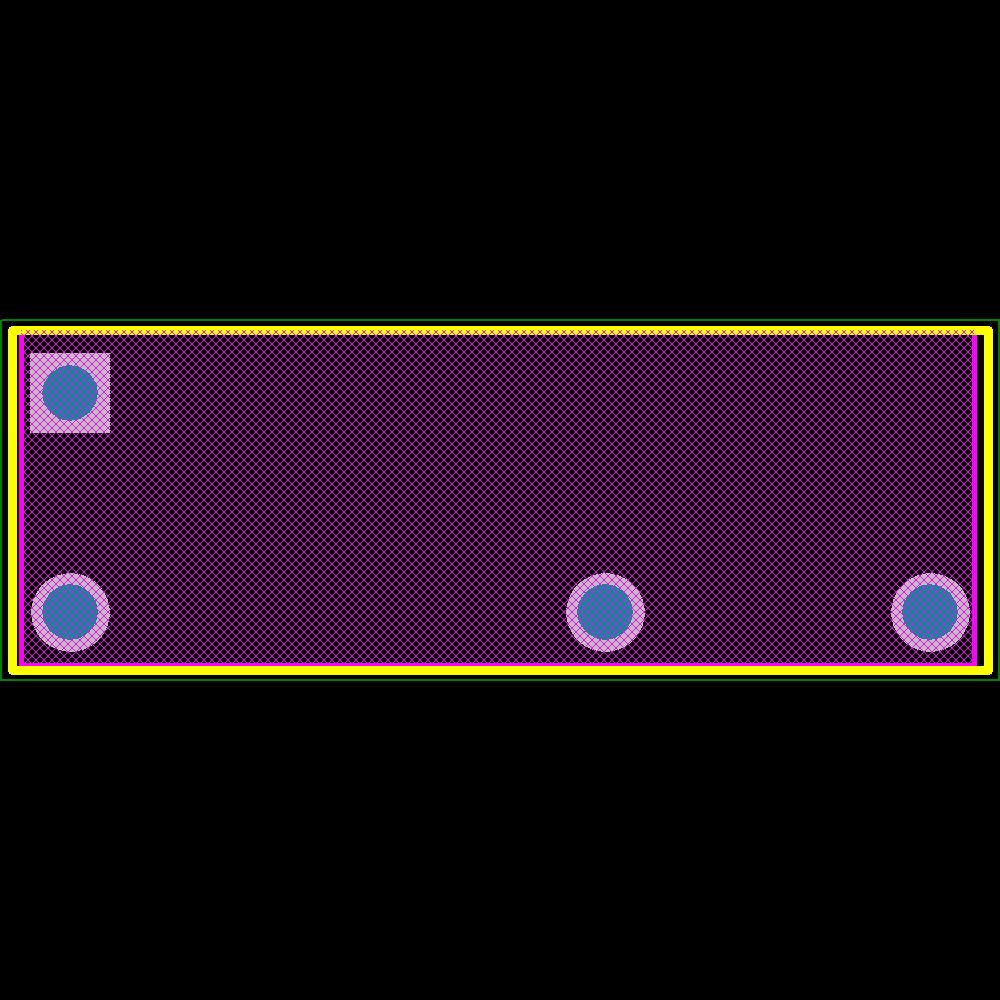

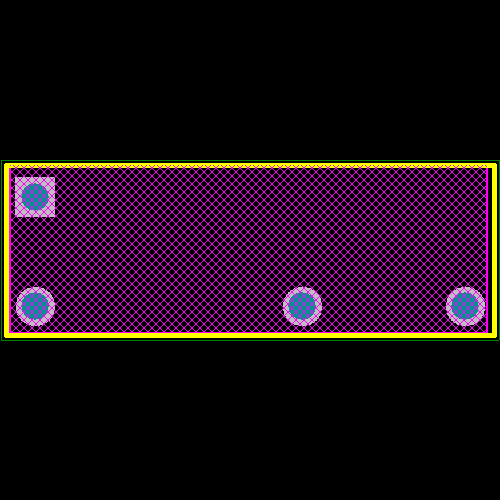

Footprint

ALDP109W Footprint - Panasonic

ALDP109W Footprint - Panasonic

ALDP109W Footprint - Panasonic

ALDP109W Footprint - Panasonic

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Panasonic	ALDP105	Production
Panasonic	ALDP112	Production
Panasonic	ALDP118	Production
Panasonic	ALDP124	Production
Panasonic	ALDP109	Production
Panasonic	ALDP106	Production
Panasonic	ALD105W	Obsolete
Panasonic	ALD105	Obsolete
Panasonic	ALDP112W	Production
Panasonic	ALD118	Obsolete
