ALDP124 - Panasonic

Power Relay 24VDC 3DC/5AAC SPST-NO(20.2mm 6.9mm 14.9mm) THT

Technical Details

Case/Package	200
Coil Current	8.3mA
Coil Resistance	2.88kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	18V
Contact Current Rating	5A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	277V
Electrical Life	200kcycles
Height	15.3mm
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	20.5mm
Lifecycle Status	Production
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Number of Pins	4
Number of Terminals	4
Power Rating	200mW
REACH SVHC	Yes
Release Time	10ms
Response Time	10ms
RoHS	Compliant
Switching Capacity	1.385kW
Switching Current	5A
Throw Configuration	SPST
Width	7.2mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Panasonic ALDP124 | TME

TME

Datasheets

Future Electronics

Lifecycle Status Indicator

Production

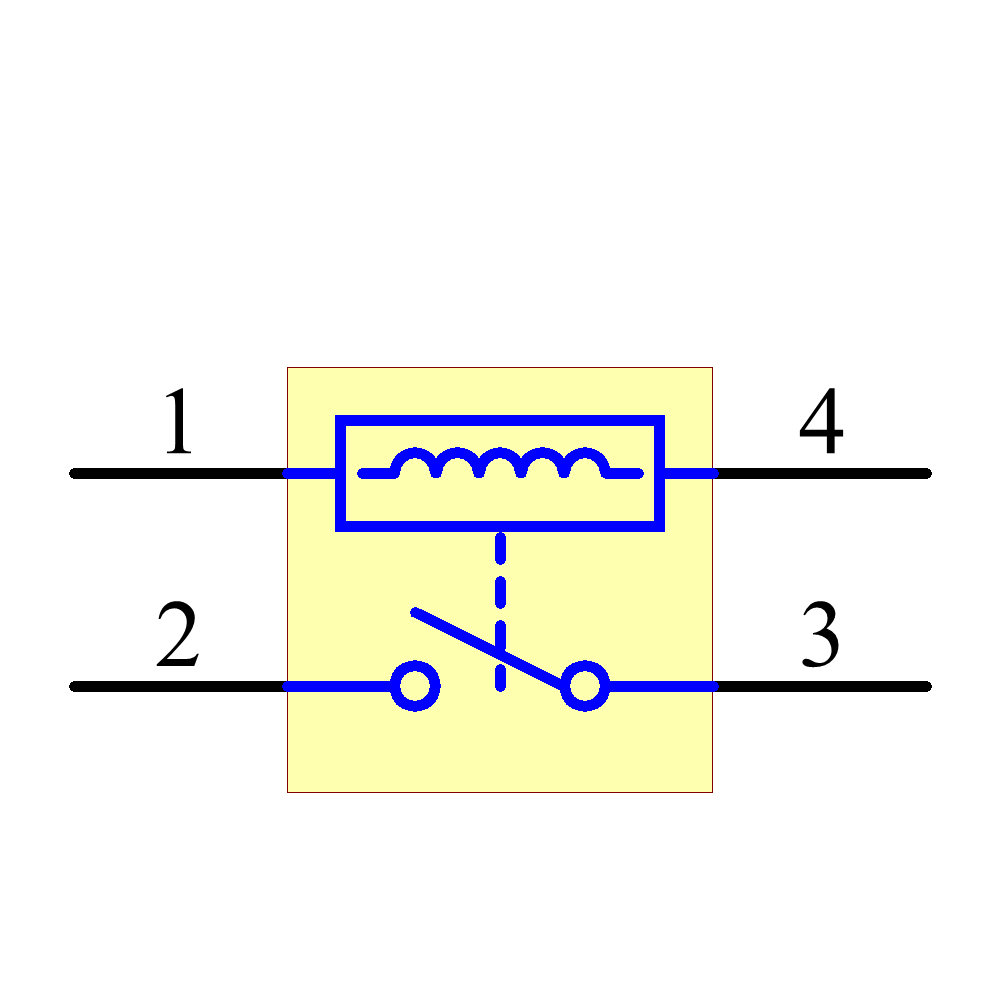

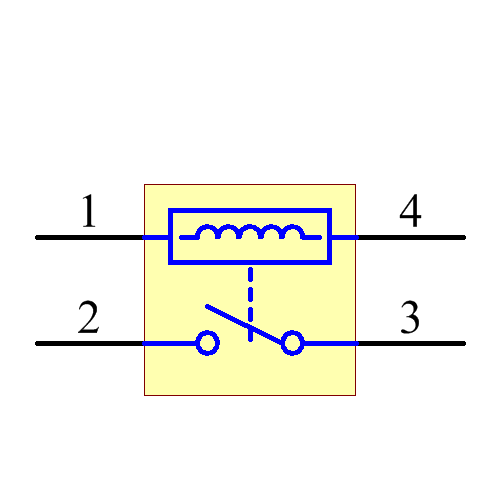

Symbol

ALDP124 Symbol - Panasonic

ALDP124 Symbol - Panasonic

ALDP124 Symbol - Panasonic

ALDP124 Symbol - Panasonic

‹ ›

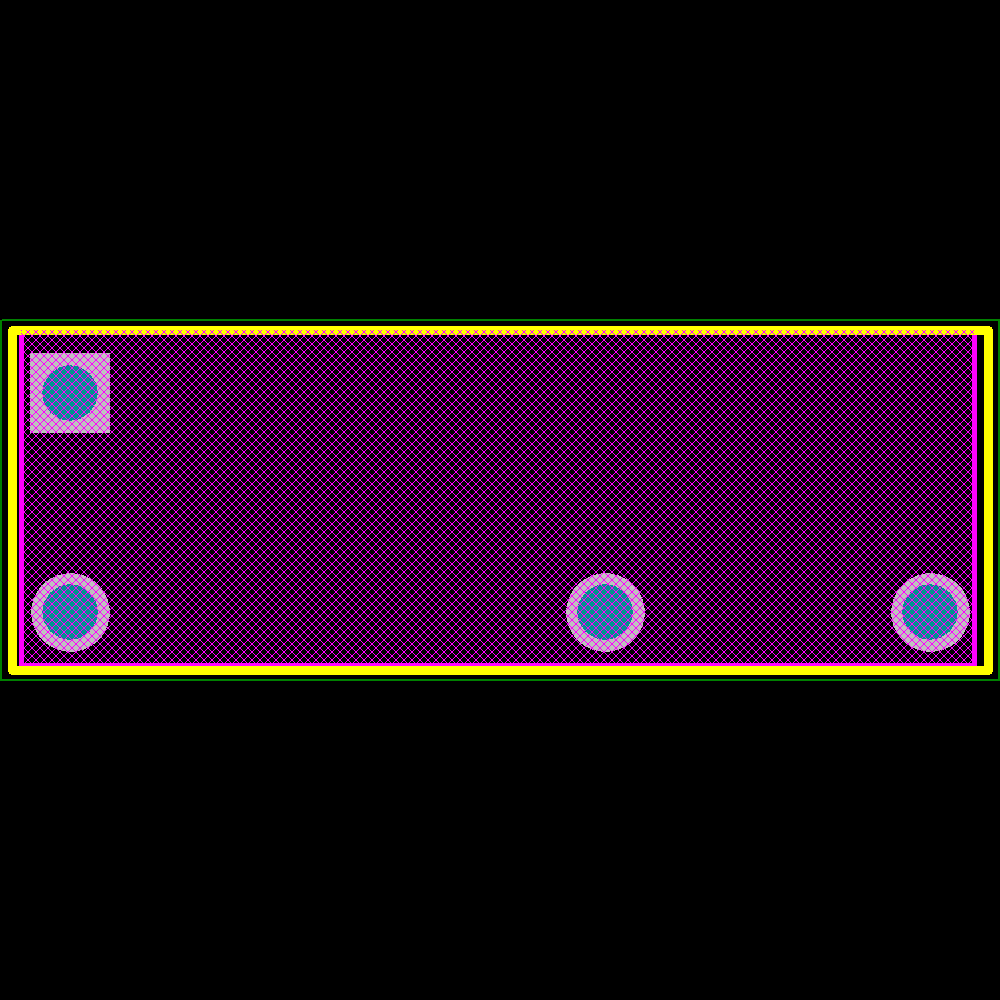

Footprint
