ALQ112 - Panasonic

Electromechanical Relay 12VDC 360Ohm 10(NO)/3(NC)A SPDT (( 20mm 10mm 16mm)) THT Power Relay

Technical Details

Coil Current	30mA
Coil Power	400mW
Coil Resistance	360Ω
Coil Type	Non-Latching
Coil Voltage (DC)	9V
Contact Current Rating	10A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	125V
Depth	10mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	50kcycles
Height	16mm
Harmonized Tariff Schedule (HTS) Code	8536.41.00.20
Insulation Resistance	1GΩ
Introduction Date	2012-07-17
Lead Free	Lead Free
Length	20mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Number of Pins	5
Number of Terminals	5
Operate Time	20ms
Packaging	Box
Power Consumption	400mW
Power Rating	400mW
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	20ms
Response Time	20ms
RoHS	Compliant
Sealable	MOISTURE PROOF
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	250V
Weight	7g
Width	10mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Panasonic ALQ112 | Future Electronics

Future Electronics

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

Symbol

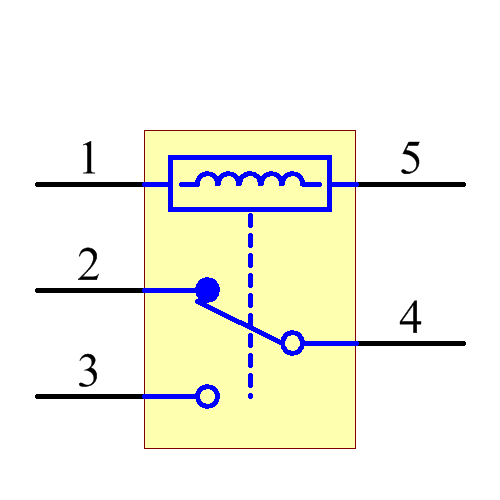

ALQ112 Symbol - Panasonic

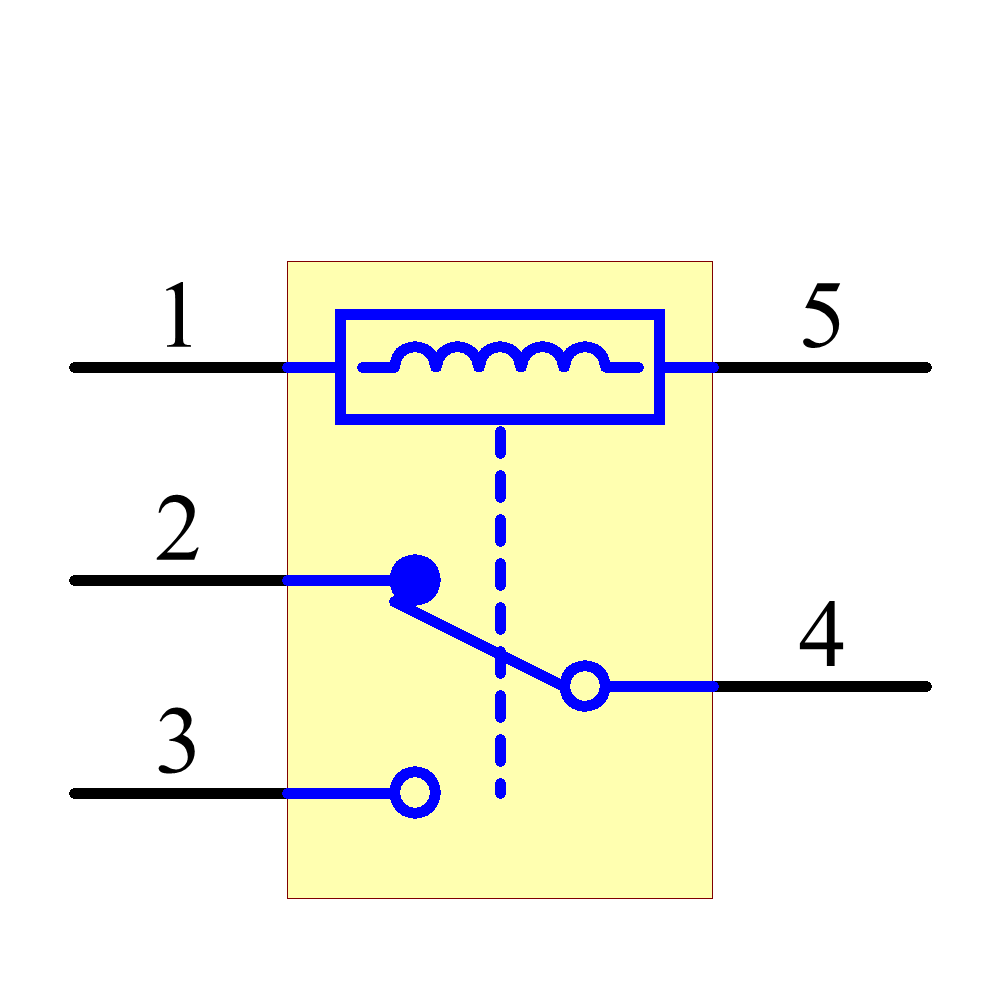

ALQ112 Symbol - Panasonic

ALQ112 Symbol - Panasonic

ALQ112 Symbol - Panasonic

‹ ›

Footprint

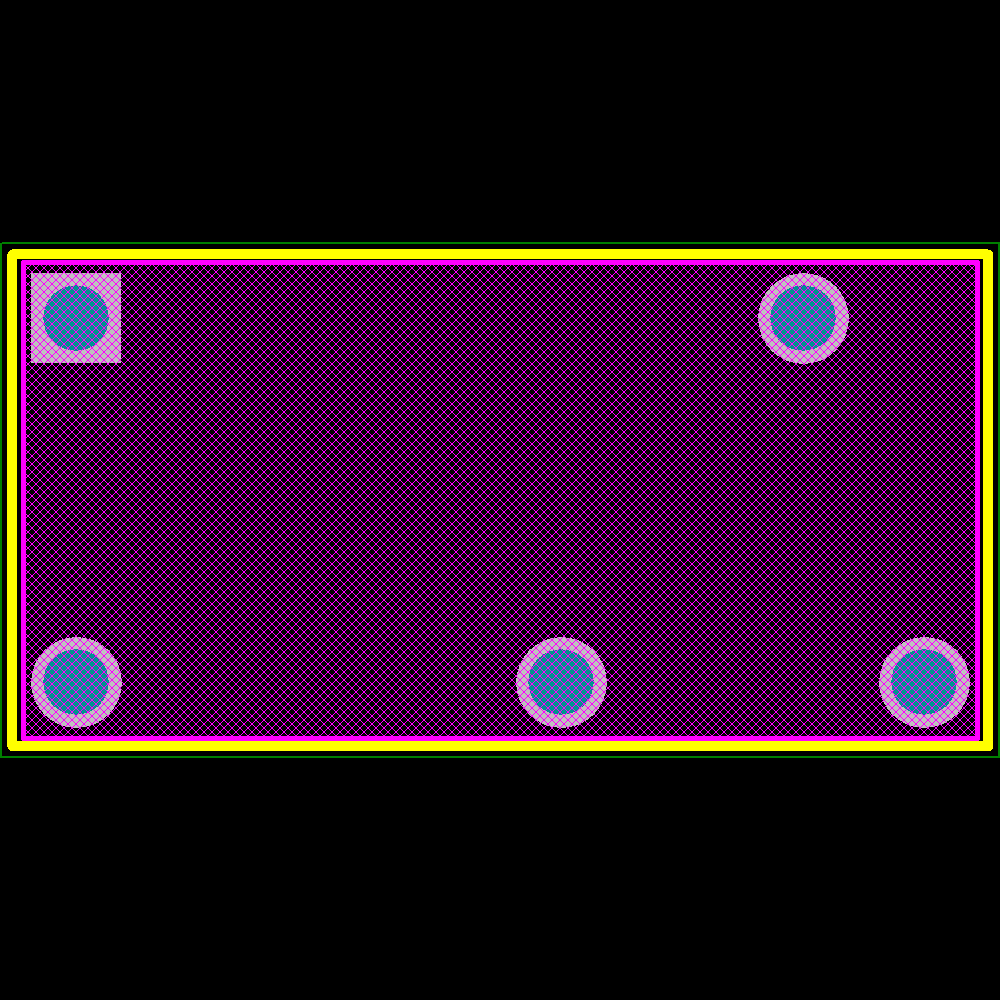

ALQ112 Footprint - Panasonic
