ALQ124 - Panasonic

General Purpose Relay, ALQ Series, Power, Non Latching, SPDT, 24 VDC, 10 A

Technical Details

Ambient Temperature Range High	85°C
Coil Current	17mA
Coil Power	400mW
Coil Resistance	1.44kΩ
Coil Type	Non-Latching
Coil Voltage (DC)	18V
Contact Current Rating	10A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	125V
Current Rating	5A
Depth	10mm
Electrical Life	50kcycles
Height	16mm
Insulation Resistance	1GΩ
Introduction Date	2012-07-17
Lead Free	Lead Free
Length	20mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	5
Number of Terminals	5
Operate Time	20ms
Packaging	Box
Power Consumption	400mW
Power Rating	400mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	20ms
Response Time	20ms
RoHS	Compliant
Sealable	MOISTURE PROOF
Switching Current	5A
Termination	PC Pin
Throw Configuration	SPDT
Voltage Rating (AC)	250V
Weight	7g
Width	10mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Panasonic ALQ124 | TME

TME

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

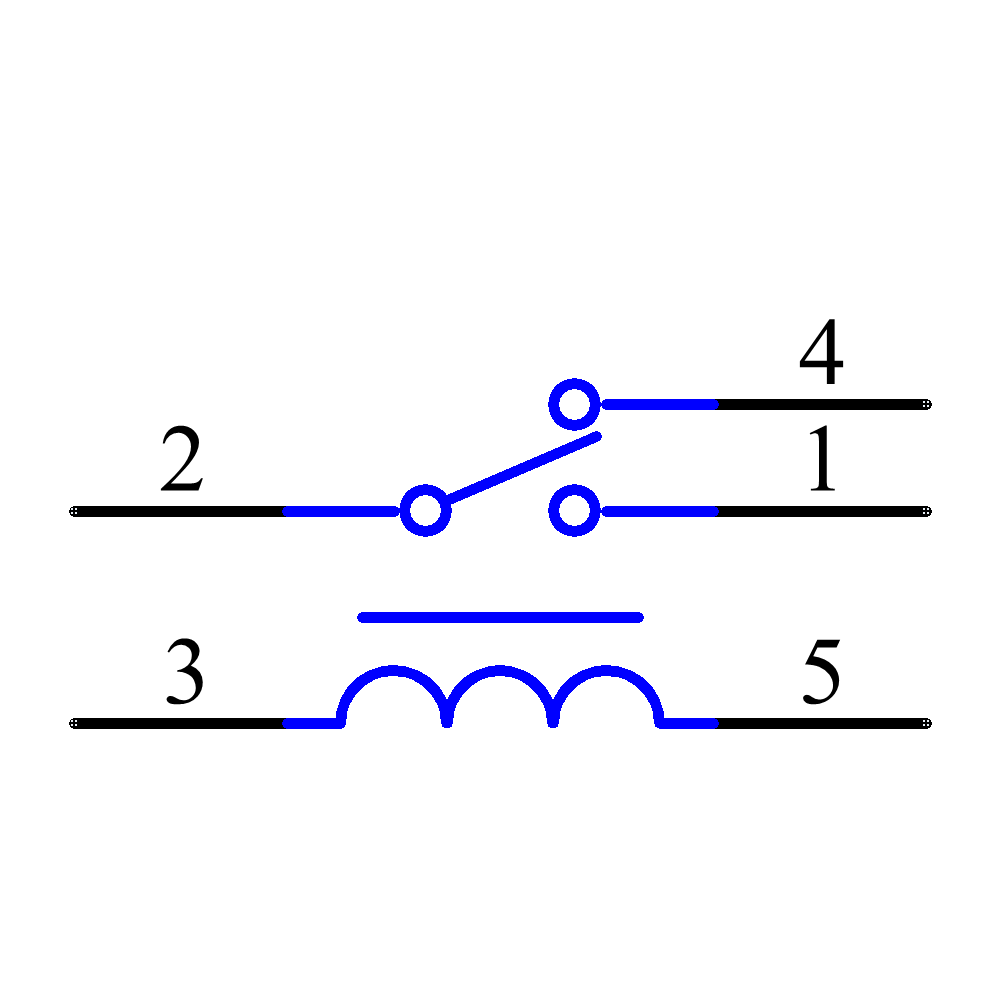

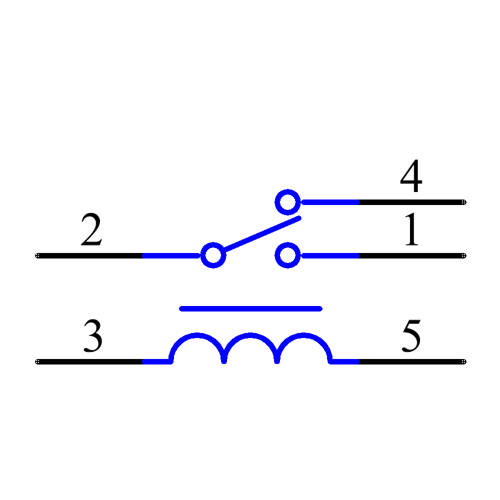

Symbol

ALQ124 Symbol - Panasonic

ALQ124 Symbol - Panasonic

ALQ124 Symbol - Panasonic

ALQ124 Symbol - Panasonic

‹ ›

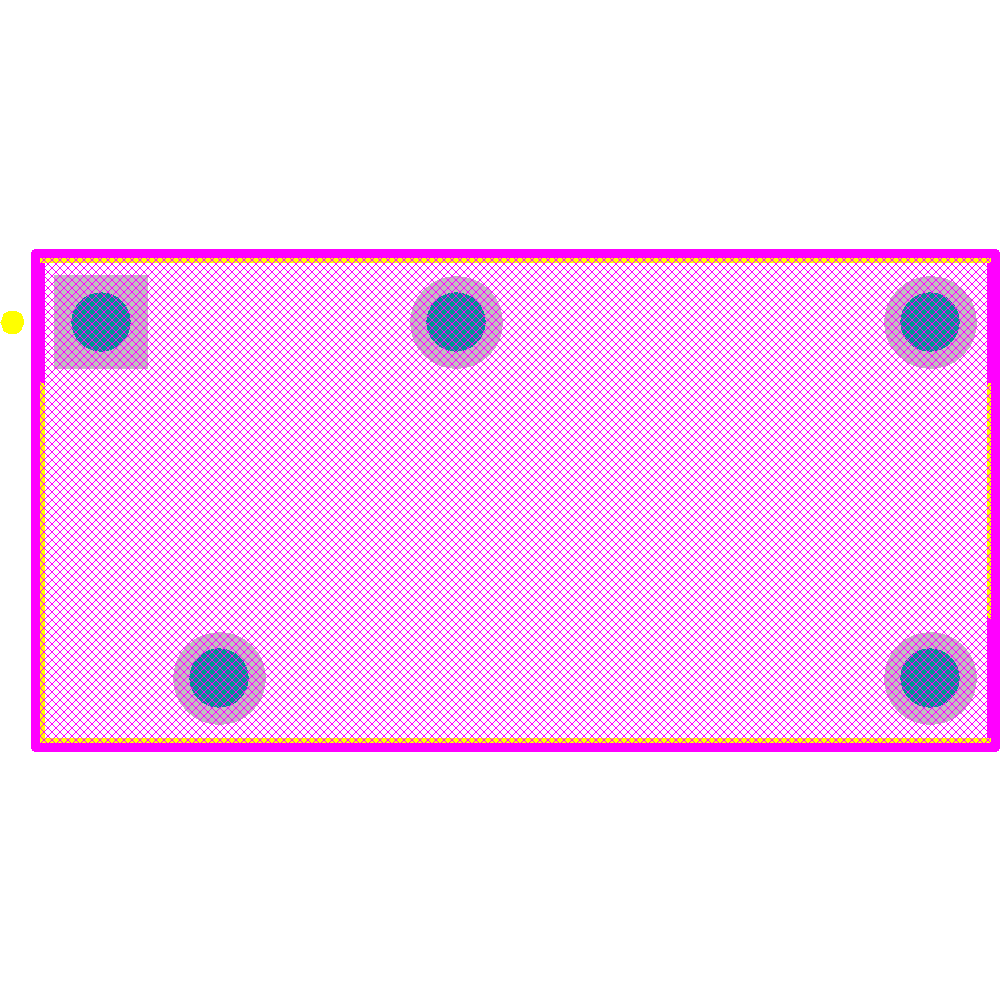

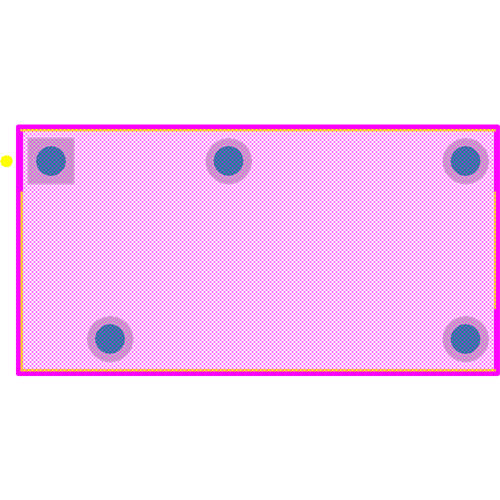

Footprint
