Electromechanical > Relays > Power Relays

ALQ312 - Panasonic

Electromechanical Relay 12VDC 720Ohm 10(NO)/3(NC)A SPST-NO (( 20mm 10mm 16mm)) THT Power Relay

Technical Details

Coil Current	17mA
Coil Power	200mW
Coil Resistance	720Ω
Coil Type	Non-Latching
Coil Voltage (DC)	9V
Contact Current Rating	10A
Contact Material	Silver
Contact Resistance	100mΩ
Contact Voltage Rating (AC)	125V
Depth	10mm
Electrical Life	50kcycles
Height	16mm
Insulation Resistance	1GΩ
Lead Free	Lead Free
Length	20mm
Lifecycle Status	Production
Max Current Rating	5A
Max Operating Temperature	85°C
Max Voltage Rating (AC)	250V
Max Voltage Rating (DC)	30V
Min Operating Temperature	-40°C
Number of Pins	4
Number of Terminals	4
Operate Time	20ms
Packaging	Box
Power Consumption	200mW
Power Rating	200mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	General Purpose
Release Time	20ms
Response Time	20ms
RoHS	Compliant
Sealable	MOISTURE PROOF
Termination	PC Pin
Throw Configuration	SPST
Voltage Rating (AC)	250V
Weight	7g
Width	10mm

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Panasonic ALQ312 | Future Electronics

Future Electronics

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

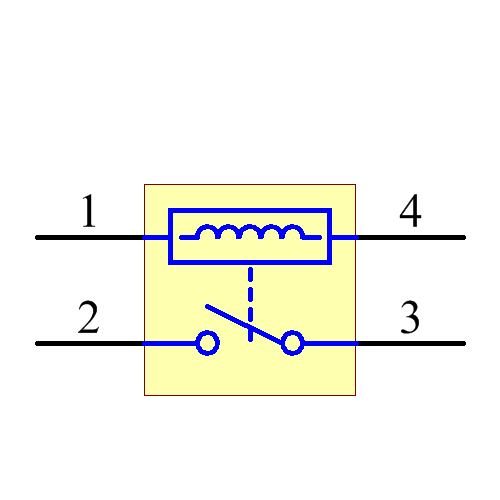

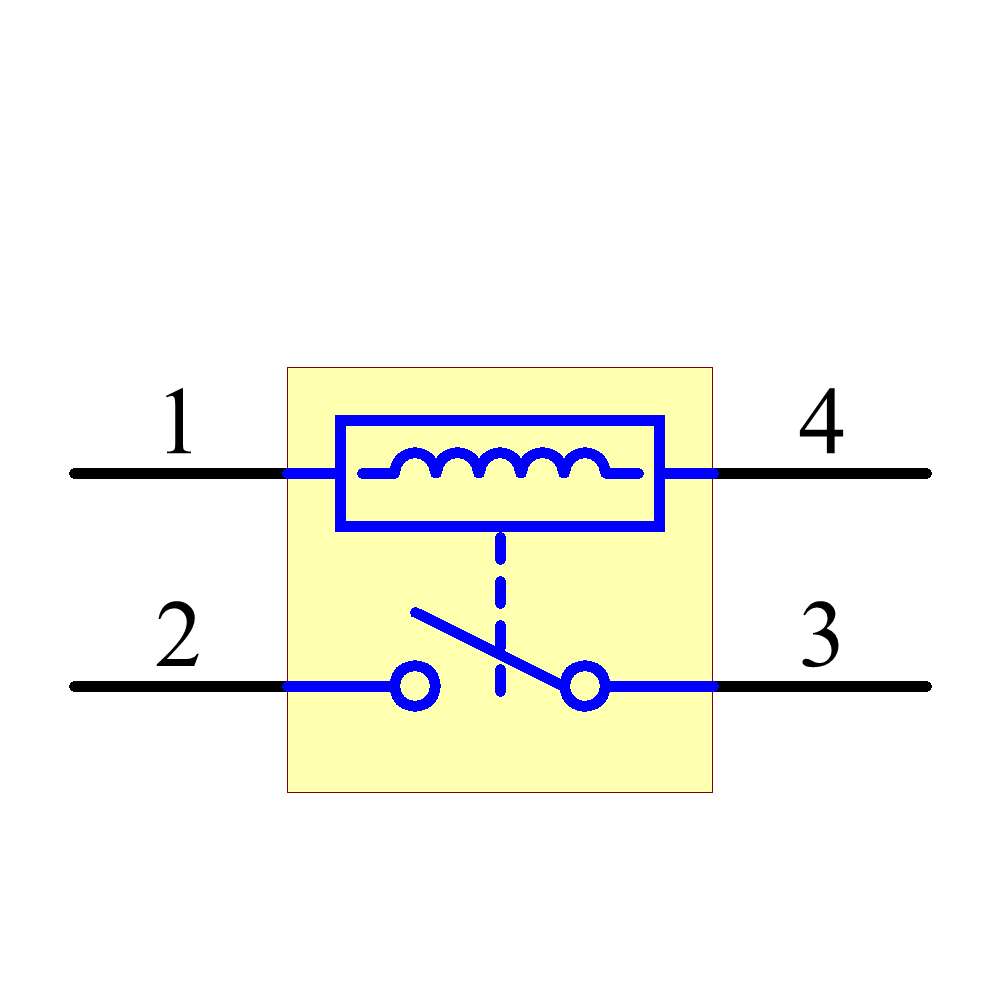

Symbol

ALQ312 Symbol - Panasonic

ALQ312 Symbol - Panasonic

ALQ312 Symbol - Panasonic

ALQ312 Symbol - Panasonic

‹ ›

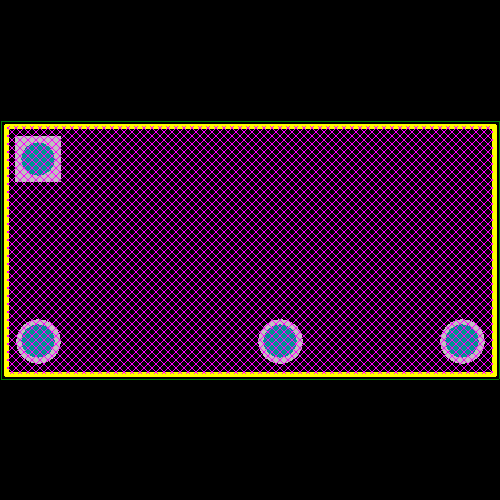

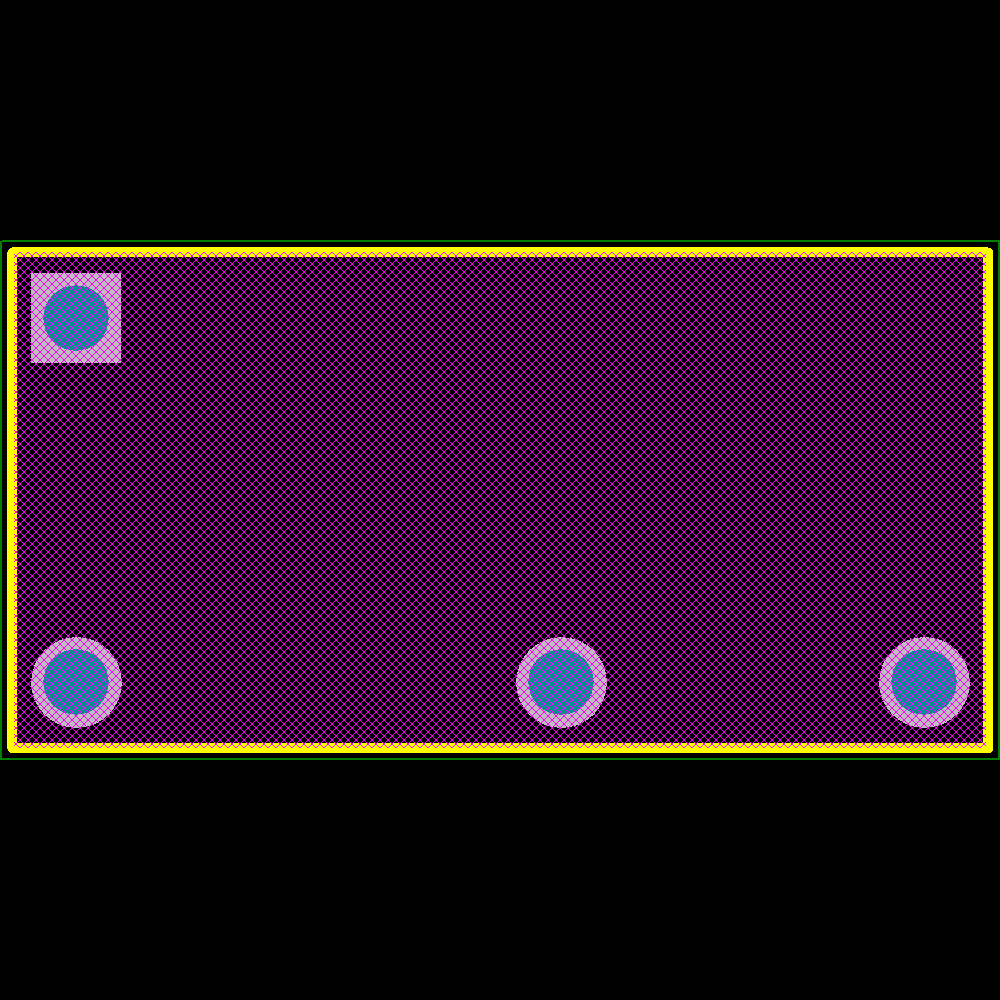

Footprint

ALQ312 Footprint - Panasonic

ALQ312 Footprint - Panasonic

ALQ312 Footprint - Panasonic

ALQ312 Footprint - Panasonic

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
Panasonic	ALQ306	Production
Panasonic	ALQ318	Production
Panasonic	ALQ324	Production
Panasonic	ALQ305	Production
Panasonic	ALQ309	Production
Panasonic	ALQ3F24	Production
Panasonic	ALQ3F06	Production
Panasonic	ALQ3F12	Production
Panasonic	ALQ3F09	Production
Panasonic	ALQ3F05	Production

See more alternatives See less alternatives
