Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 80mA |
| Coil Power | 400mW |
| Coil Resistance | 63Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3.5V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 440V |
| Current Rating | 16A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 15.7mm |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2008-07-10 |
| Lead Free | Lead Free |
| Length | 28.8mm |
| Lifecycle Status | Production |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 440V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 15ms |
| Packaging | Box |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Switching Current | 16A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

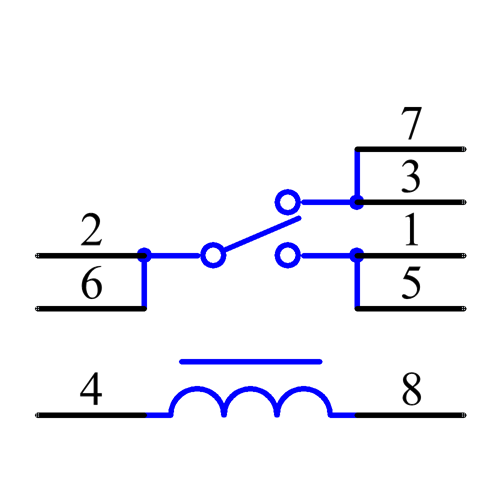

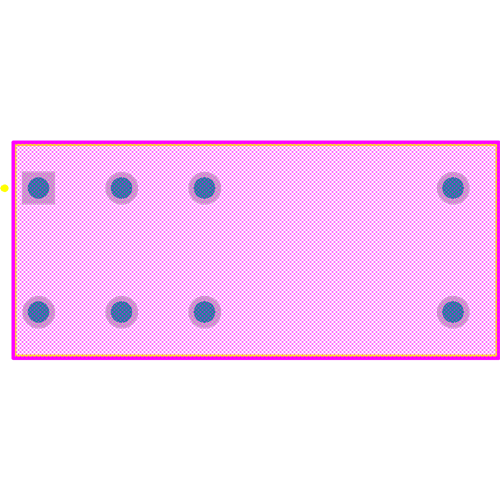

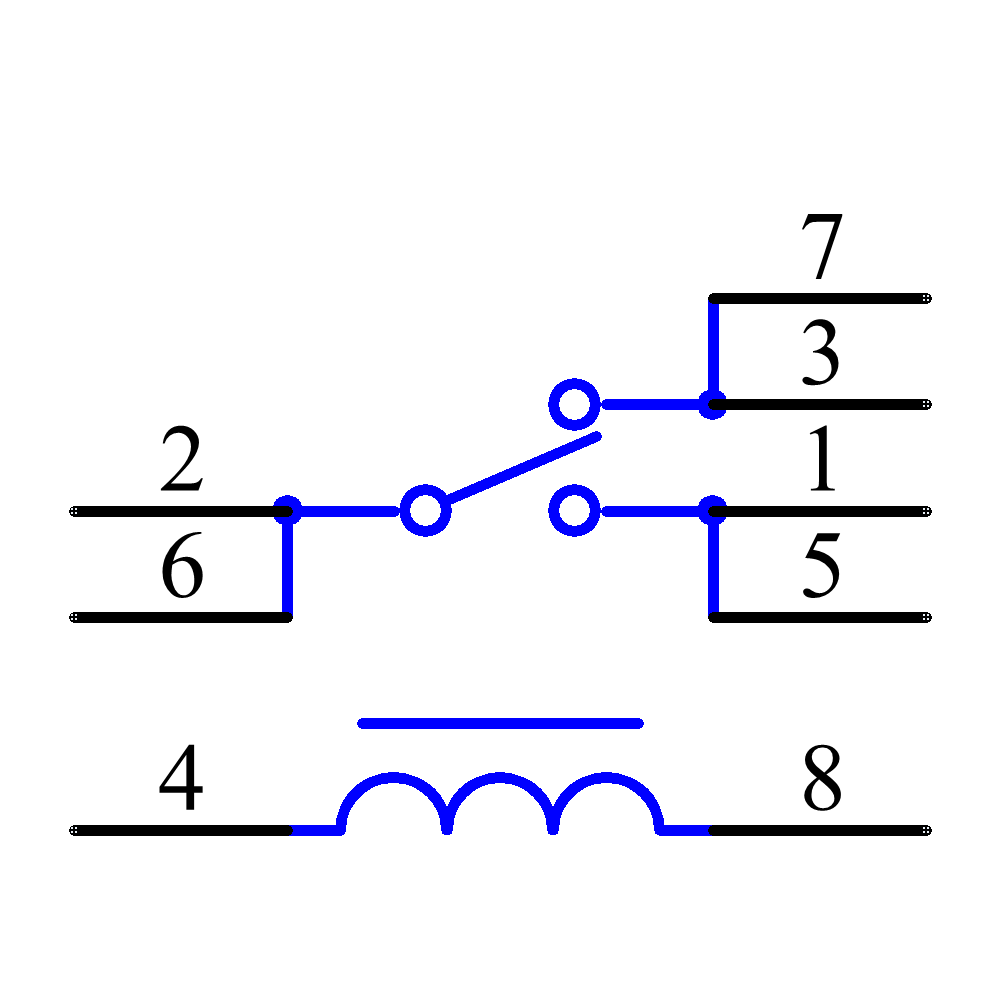

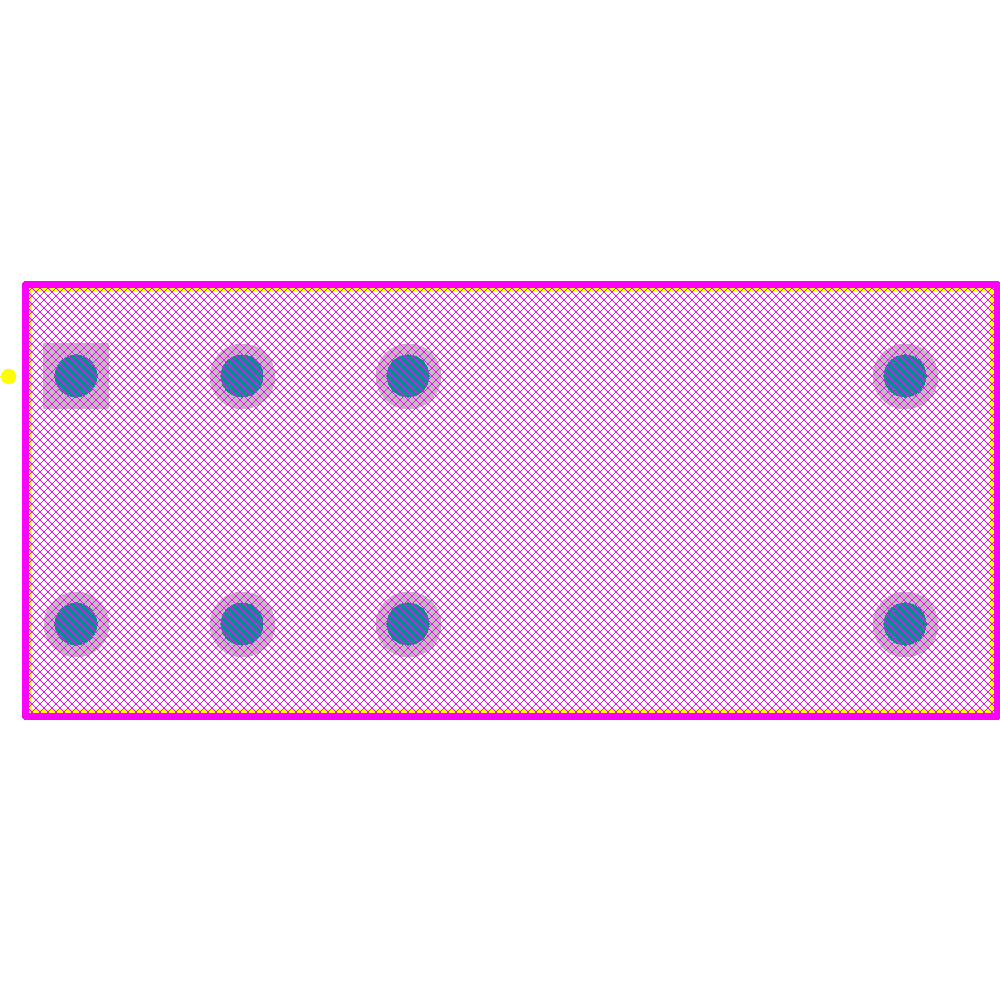

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production |
