Technical Details
| Ambient Temperature Range High | 85°C |
| Case/Package | DIP |
| Coil Current | 17mA |
| Coil Power | 400mW |
| Coil Resistance | 1.44kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 16.8V |
| Contact Current Rating | 16A |
| Contact Material | Silver, Tin |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 440V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 50kcycles |
| Height | 15.7mm |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2011-09-14 |
| Lead Free | Lead Free |
| Length | 28.8mm |
| Lifecycle Status | Production |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 440V |
| Min Operating Temperature | -40°C |
| Number of Contacts | 1 |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Operate Time | 15ms |
| Power Consumption | 400mW |
| Power Rating | 400mW |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Schedule B | 8536490075, 8536490075|8536490075|8536490075|8536490075|8536490075 |
| Switching Current | 16A |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 12g |
Compliance
RoHS : Unconfirmed

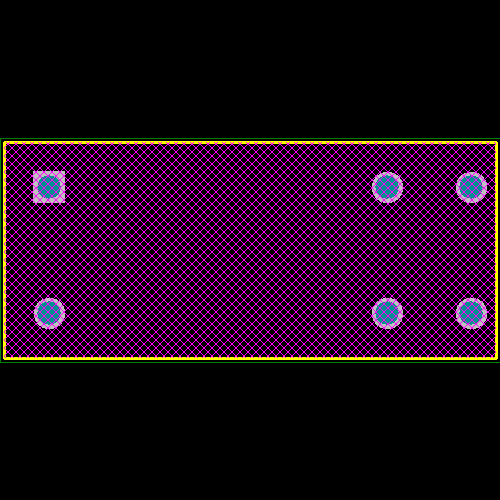

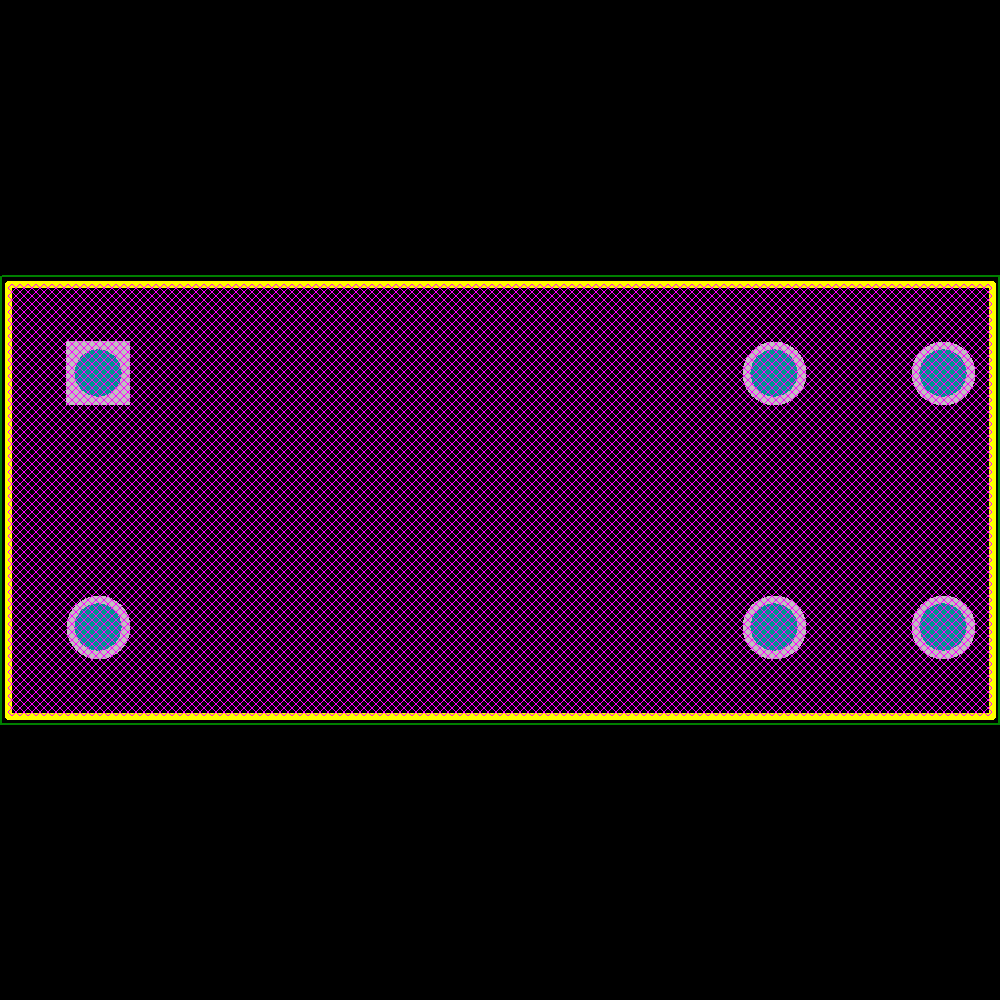

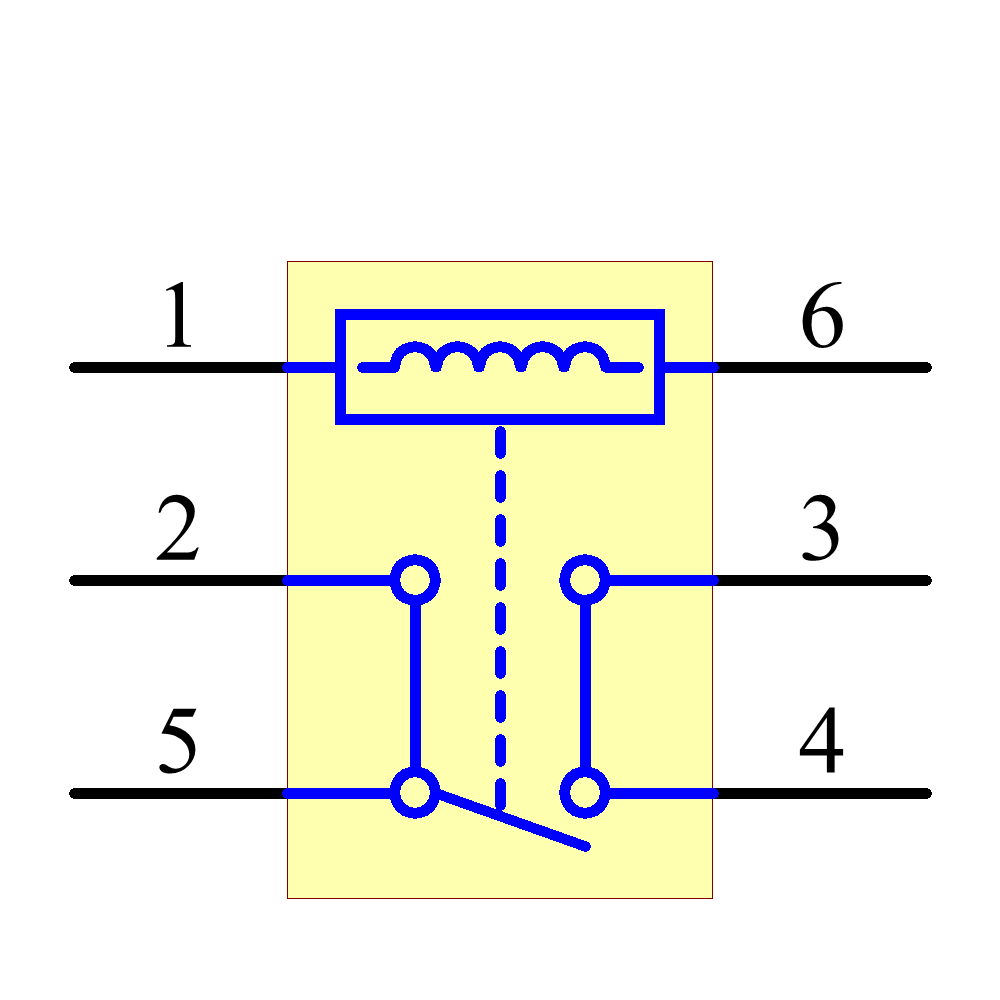

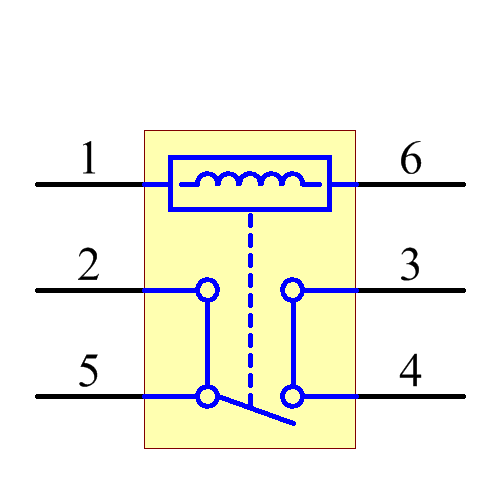

Images
Master Electronics
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panasonic | Production | ||
| Panasonic | NRND | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | NRND | ||
| Panasonic | NRND | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production |
