ALZ52F09T - Panasonic
Relay, 1 Form A (n/o), 9 V (DC), 203 Ω, 16 A, 440 V (AC), Monostable, ALZ52F09T
Technical Details
| Coil Current | 44mA |
| Coil Power | 400mW |
| Coil Resistance | 203Ω |
| Coil Voltage (DC) | 6.3V |
| Contact Current Rating | 16A |
| Contact Resistance | 100mΩ |
| Contact Voltage Rating (AC) | 440V |
| Electrical Life | 50kcycles |
| Height | 15.7mm |
| Insulation Resistance | 1GΩ |
| Lead Free | Lead Free |
| Length | 28.8mm |
| Lifecycle Status | Production |
| Max Current Rating | 16A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 440V |
| Min Operating Temperature | -40°C |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Power Rating | 400mW |
| Release Time | 5ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed

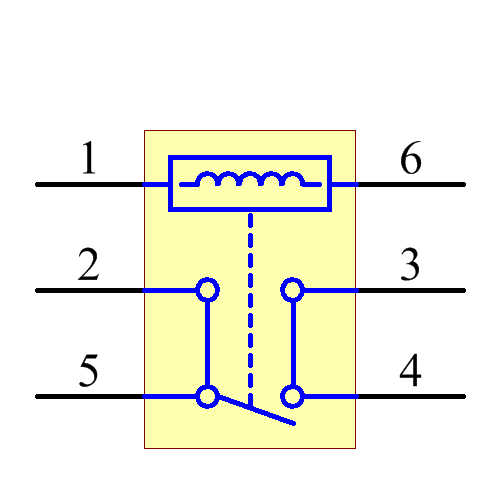

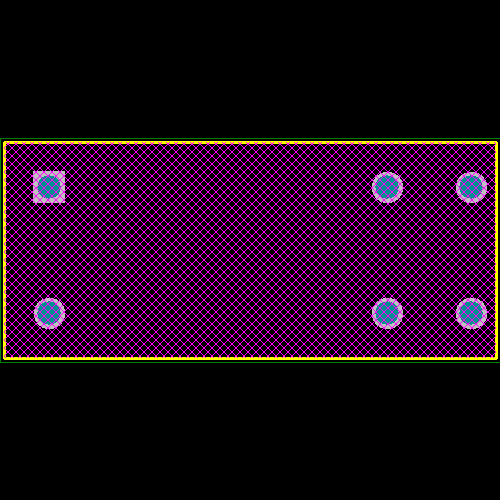

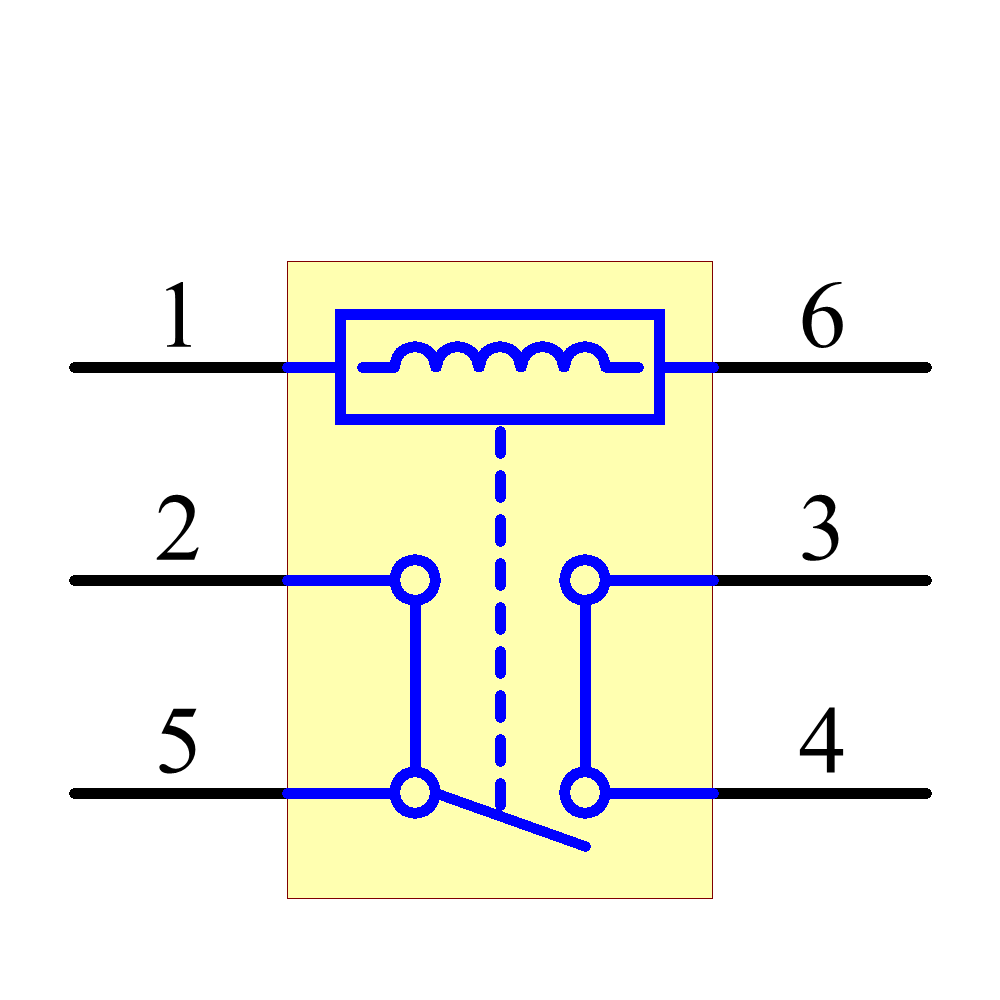

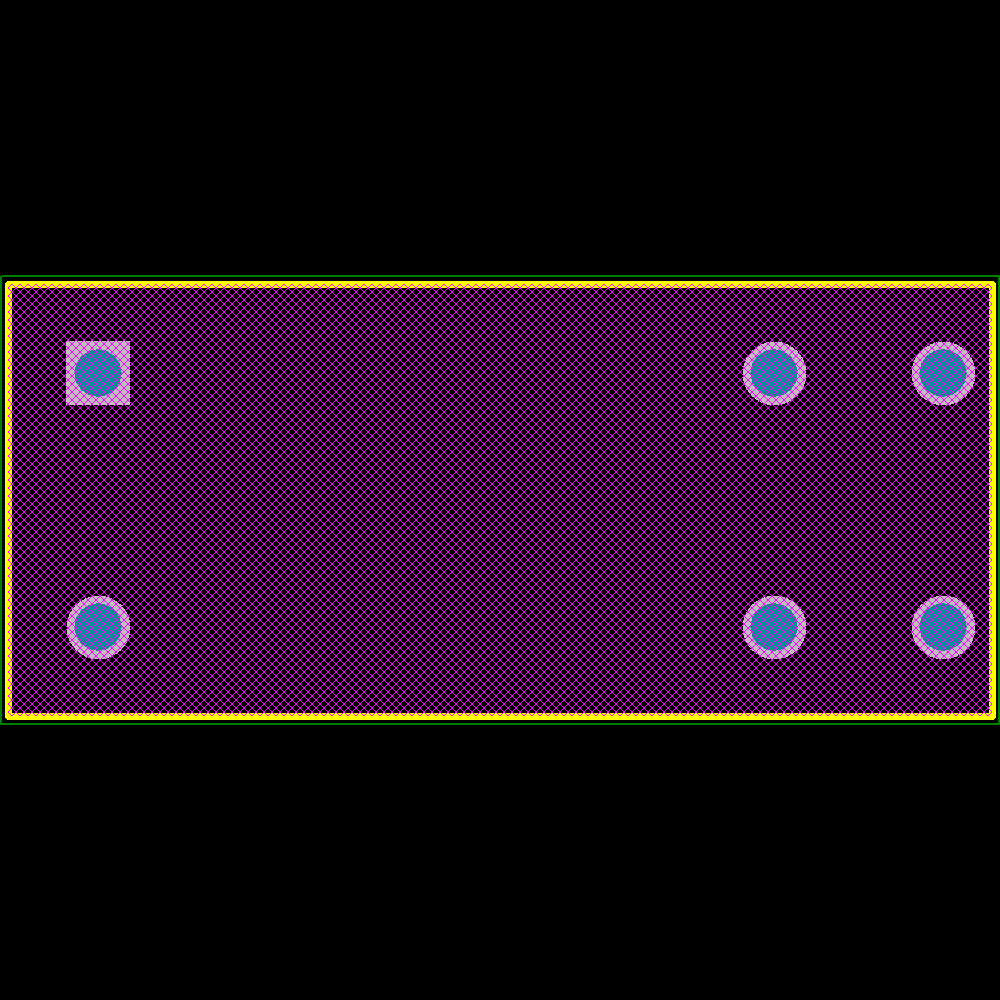

Images
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | NRND |
