Technical Details
| Ambient Temperature Range High | 85°C |
| Capacitance | 1.3pF |
| Case/Package | SMD/SMT |
| Current Rating | 500mA |
| Data Polarity | DC |
| Forward Current | 50mA |
| Height | 3.6mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 2.4mA |
| Introduction Date | 1991-11-01 |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Lifecycle Status | Production |
| Load Current | 500mA |
| Max Input Current | 50mA |
| Max Input Voltage | 3V |
| Max Length | 9mm |
| Max Operating Temperature | 85°C |
| Max Output Current | 1.8A |
| Max Output Voltage | 40V |
| Max Power Dissipation | 410mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 1 |
| Number of Elements | 1 |
| Number of Pins | 6 |
| On-State Resistance | 1Ω |
| Output Current | 500mA |
| Output Voltage | 32V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Resistance | 1Ω |
| Rise Time | 380µs |
| RoHS | Compliant |
| Schedule B | 8536410030 |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 6.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

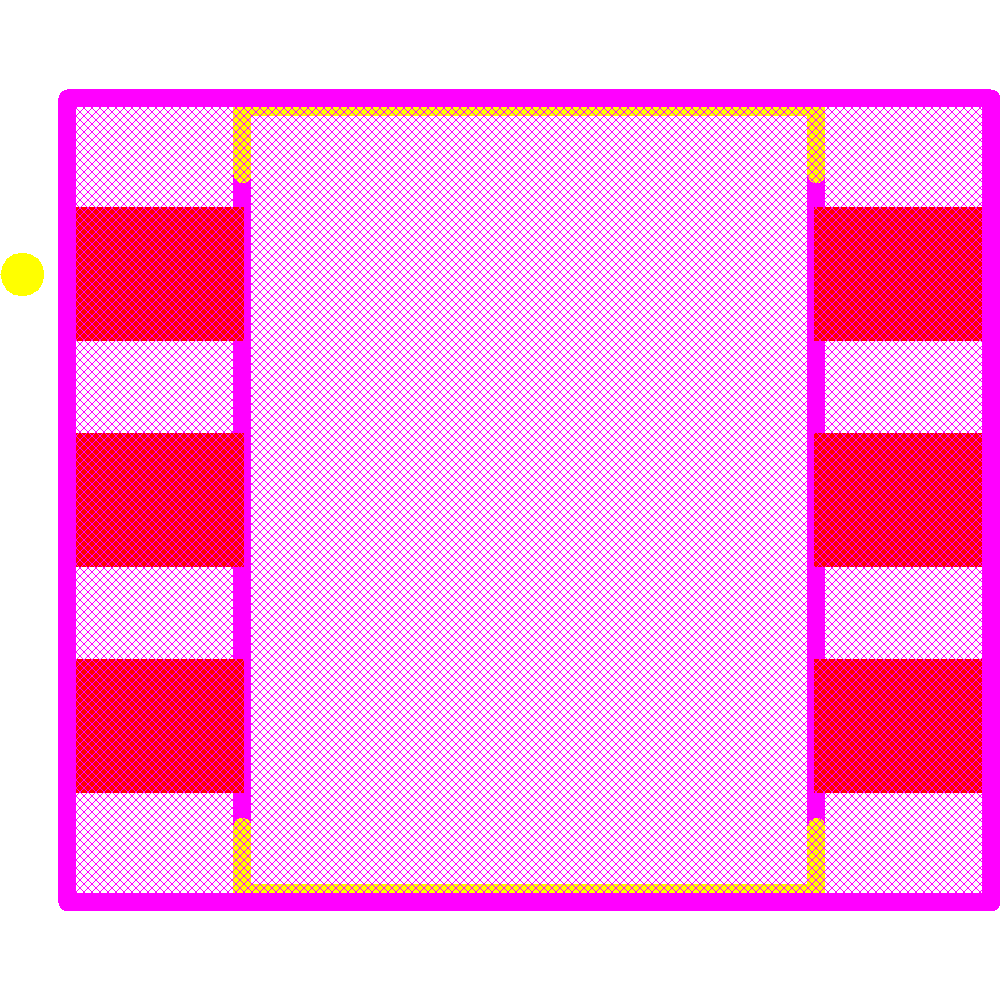

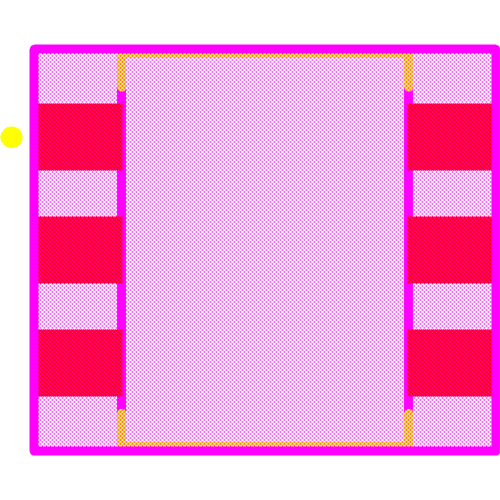

Images
Onlinecomponents.com
Alternatives (Possible Substitutes)
| Manufacturer | Manufacturer Part No. | Lifecycle Status Indicator | Confidence |
|---|---|---|---|
| Teledyne Relays | Production | ||
| Avago | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production | ||
| Panasonic | Production |
