AQV210EH - Panasonic

Relay SSR 50mA 1.5V DC-IN 0.13A 350V AC/DC-OUT 6-Pin DIP Tube

Technical Details

Ambient Temperature Range High	85°C
Approvals	cULus
Capacitance	800fF
Case/Package	DIP
Contact Resistance	23Ω
Data Polarity	DC
Depth	6.4mm
Forward Current	50mA
Height	3mm
Harmonized Tariff Schedule (HTS) Code	8541.40.95.00
Input Current	1.6mA
Insulation Resistance	1GΩ
Isolation Voltage	5000Vrms
Lead Free	Lead Free
Length	8.8mm
Lifecycle Status	Production
Load Current	130mA
Max Input Current	50mA
Max Input Voltage	1.5V
Max Length	9mm
Max Operating Temperature	85°C
Max Output Current	130mA
Max Output Voltage	350V
Max Power Dissipation	550mW
Min Operating Temperature	-40°C
Mount	PCB, Through Hole
Number of Contacts	1
Number of Elements	1
Number of Pins	6
On-State Resistance	35Ω
Output Current	130mA
Output Voltage	280V
Power Rating	550mW
Radiation Hardening	No
REACH SVHC	Yes
Relay Type	Relay
Resistance	35Ω
Rise Time	700µs
RoHS	Compliant
Schedule B	8536410030\|8536410030\|8536410030\|8536410030\|8536410030
Termination	PC Pin
Test Voltage	2.5kV
Throw Configuration	SPST
Turn-On Delay Time	2ms

Compliance

RoHS : Unconfirmed

Radiation Hardening : No

REACH SVHC : Yes

Images

Panasonic AQV210EH | Farnell

Farnell

Datasheets

Future Electronics

Future Electronics

Lifecycle Status Indicator

Production

Symbol

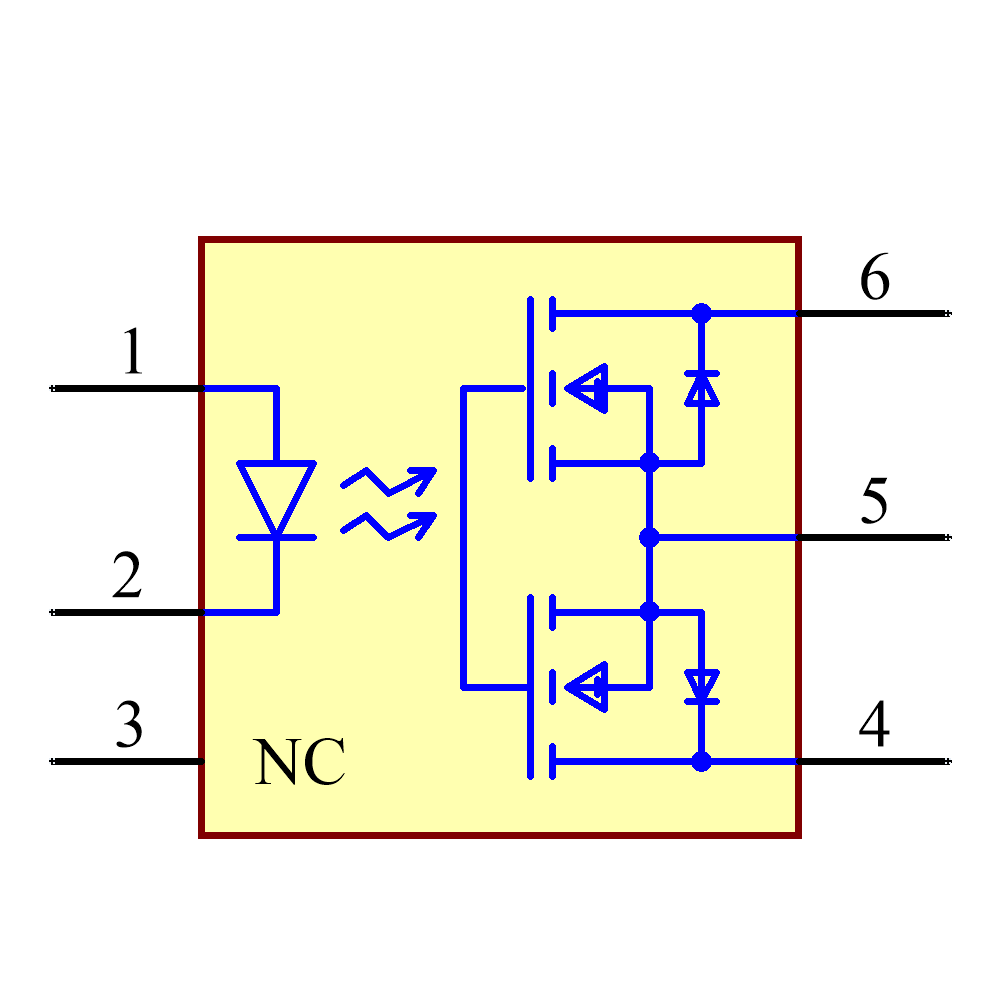

AQV210EH Symbol - Panasonic

AQV210EH Symbol - Panasonic

AQV210EH Symbol - Panasonic

AQV210EH Symbol - Panasonic

‹ ›

Footprint

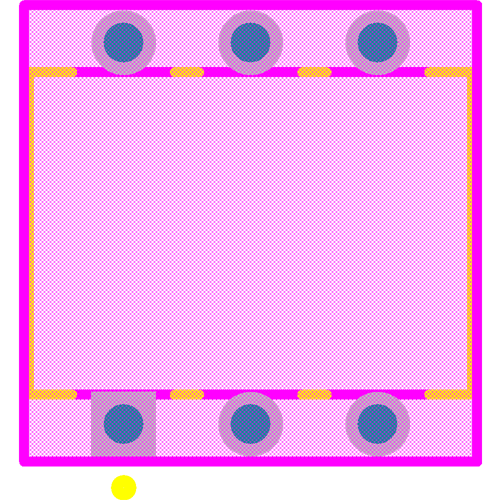

AQV210EH Footprint - Panasonic

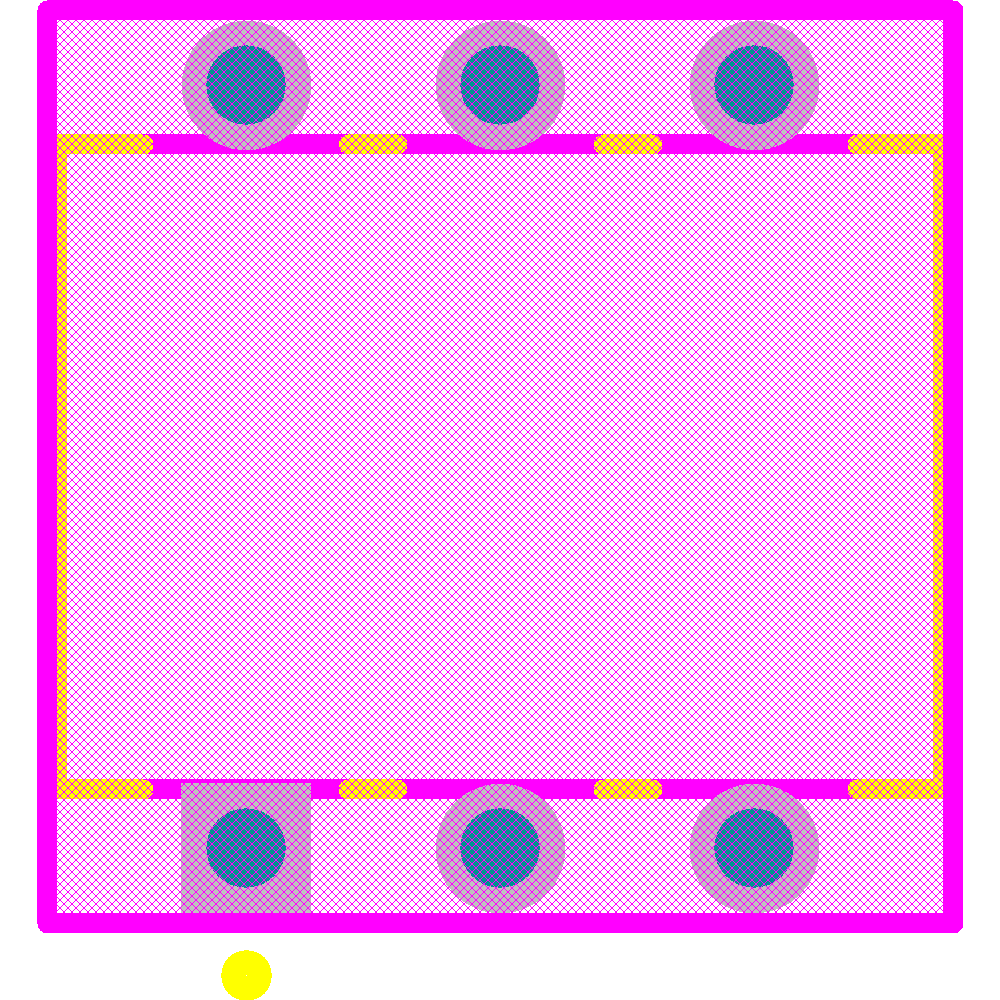

AQV210EH Footprint - Panasonic
