AQW210SZ - Panasonic
AQW Photomos Series 350 V 0.1 A 16 Ohm SMT 2 Channel Solid State Relay - SOIC-8
Technical Details
| Ambient Temperature Range High | 85°C |
| Capacitance | 800fF |
| Case/Package | SOP |
| Data Polarity | DC |
| Forward Current | 50mA |
| Height | 2mm |
| Harmonized Tariff Schedule (HTS) Code | 8541.40.95.00 |
| Input Current | 900µA |
| Introduction Date | 1996-09-01 |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 9.37mm |
| Lifecycle Status | Production |
| Load Current | 100mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Length | 9.37mm |
| Max Operating Temperature | 85°C |
| Max Output Current | 100mA |
| Max Output Voltage | 350V |
| Max Power Dissipation | 650mW |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Elements | 2 |
| Number of Pins | 8 |
| On-State Resistance | 35Ω |
| Output Current | 100mA |
| Output Voltage | 280V |
| Packaging | Tape & Reel (TR) |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Resistance | 35Ω |
| Rise Time | 230µs |
| RoHS | Compliant |
| Schedule B | 8536410030, 8536410030|8536410030, 8536410030|8536410030|8536410030, 8536410030|8536410030|8536410030|8536410030 |
| Termination | Gull Wing |
| Throw Configuration | DPST |
| Width | 4.4mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

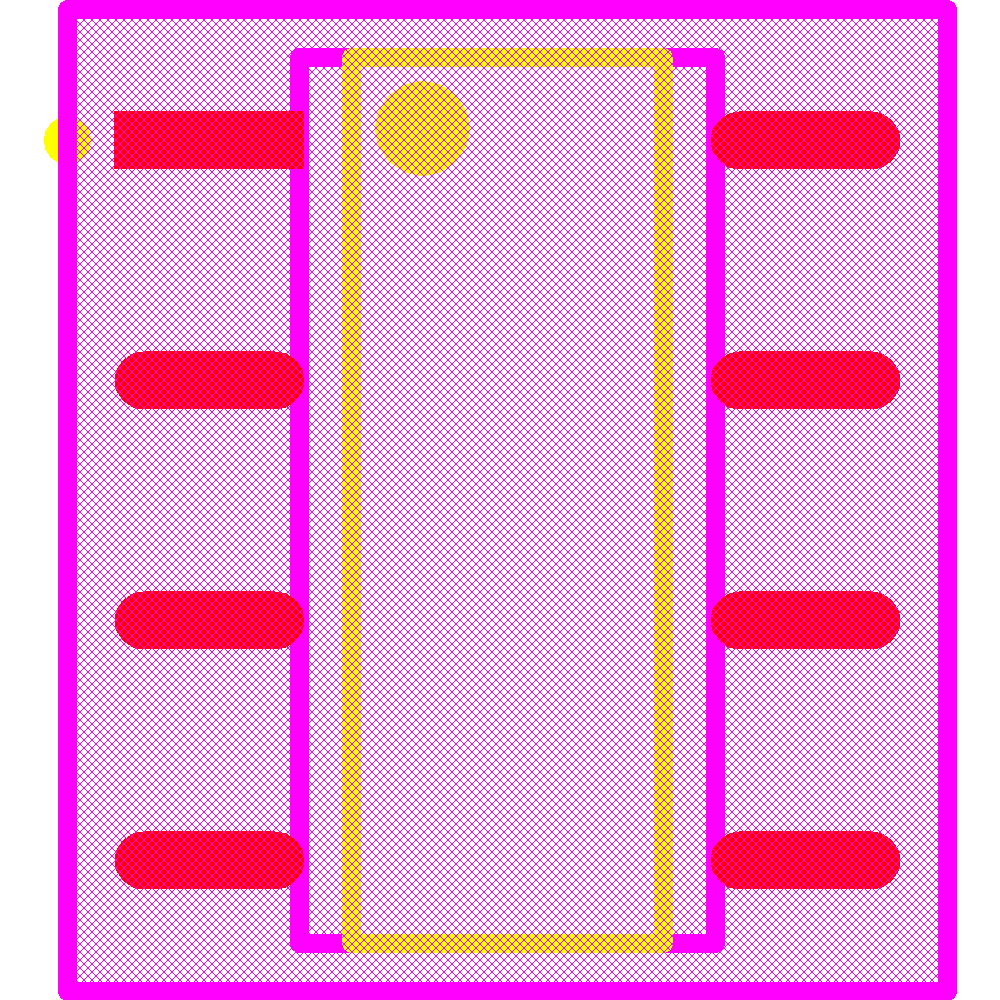

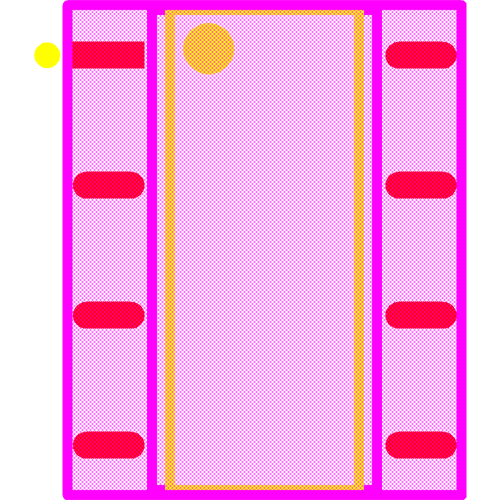

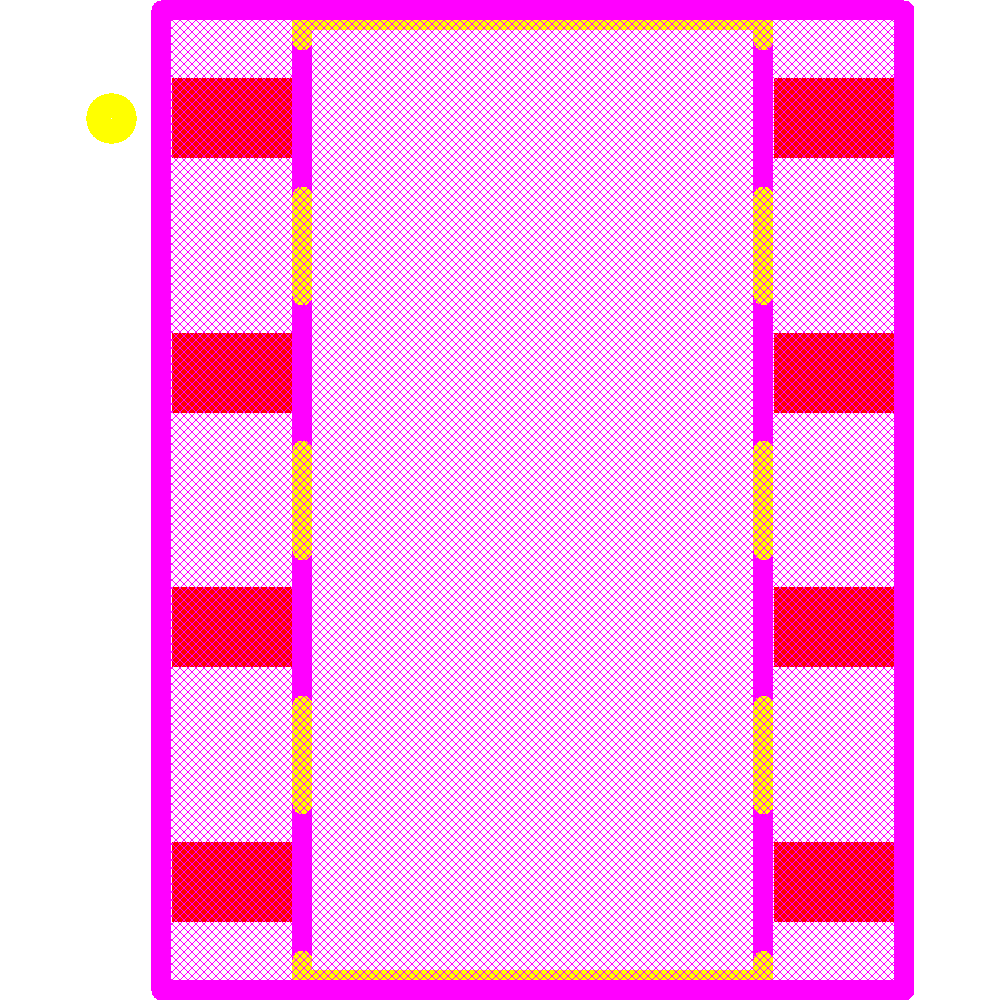

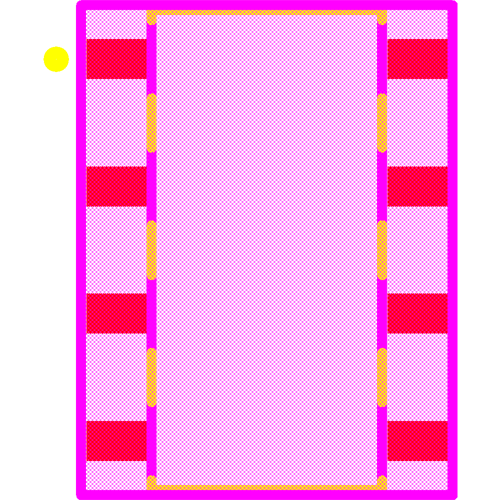

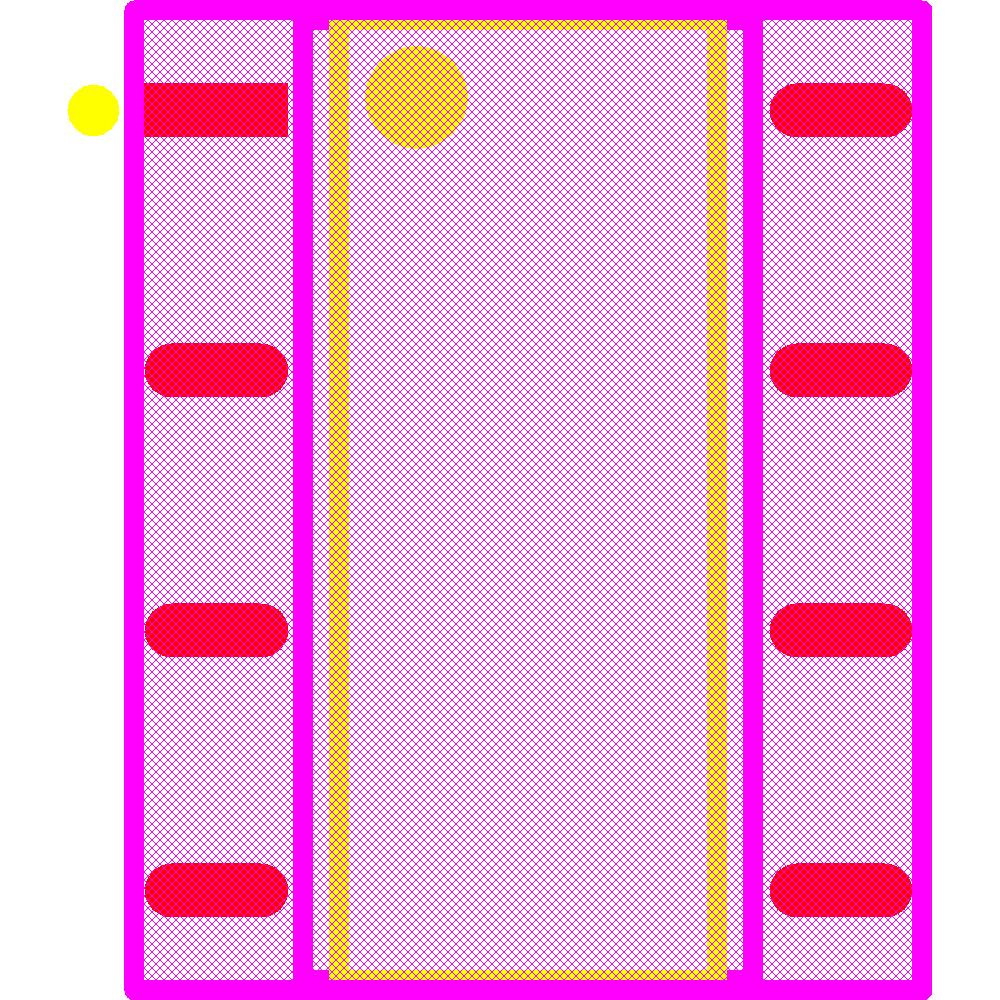

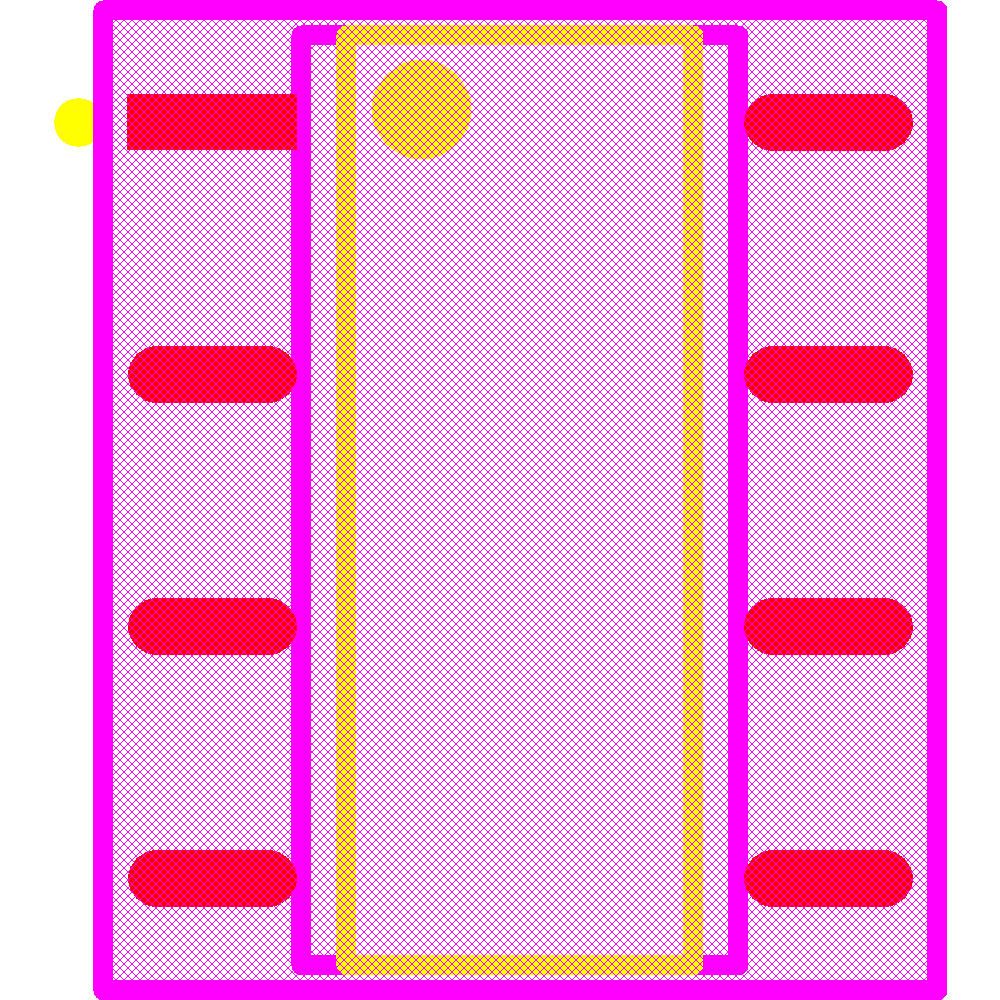

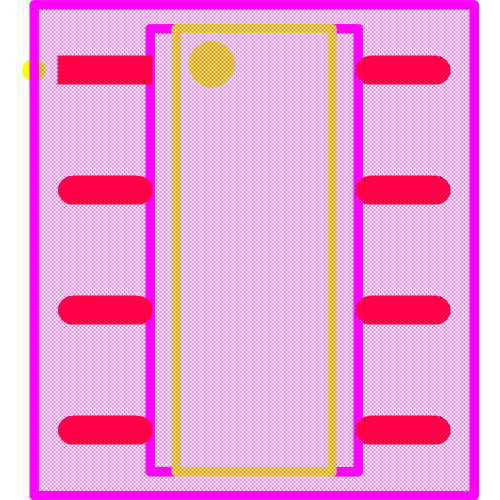

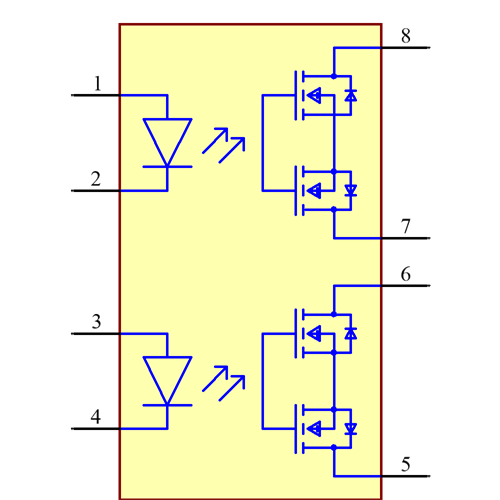

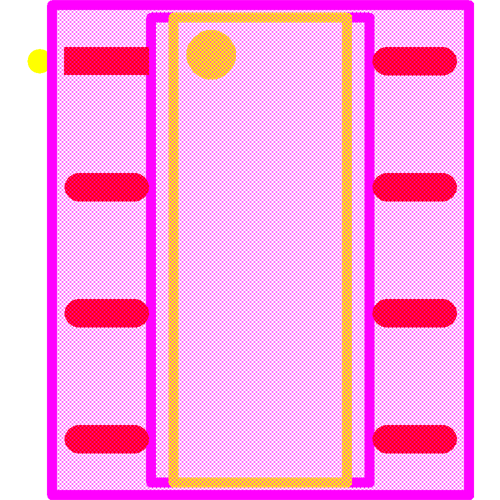

Images
