AQY230S - Panasonic
Mosfet Relay, Spst-No, 0.12A, 350V, Smd Rohs Compliant: Yes |Panasonic AQY230S
Technical Details
| Case/Package | SOP |
| Contact Plating | Tin Bismuth |
| Data Polarity | DC |
| Forward Current | 2mA |
| Height | 2.1mm |
| Input Current | 50mA |
| Isolation Voltage | 1500Vrms |
| Lead Free | Lead Free |
| Length | 4.4mm |
| Lifecycle Status | Production |
| Load Current | 120mA |
| Max Input Current | 50mA |
| Max Length | 4.3mm |
| Max Operating Temperature | 85°C |
| Max Output Current | 120mA |
| Max Output Voltage | 350V |
| Max Power Dissipation | 350mW |
| Min Operating Temperature | -40°C |
| Number of Elements | 1 |
| Number of Pins | 4 |
| On-State Resistance | 25Ω |
| Output Current | 120mA |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Relay |
| Resistance | 25Ω |
| RoHS | Compliant |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 4.3mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

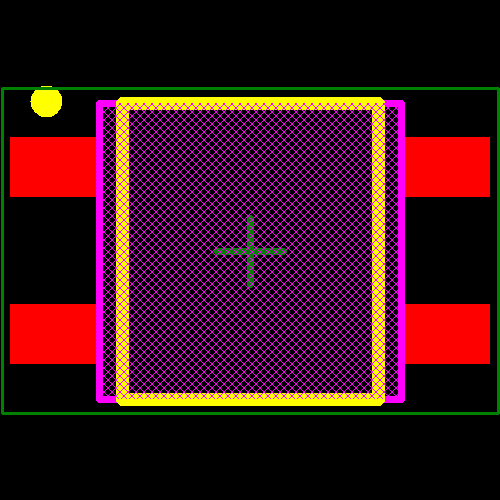

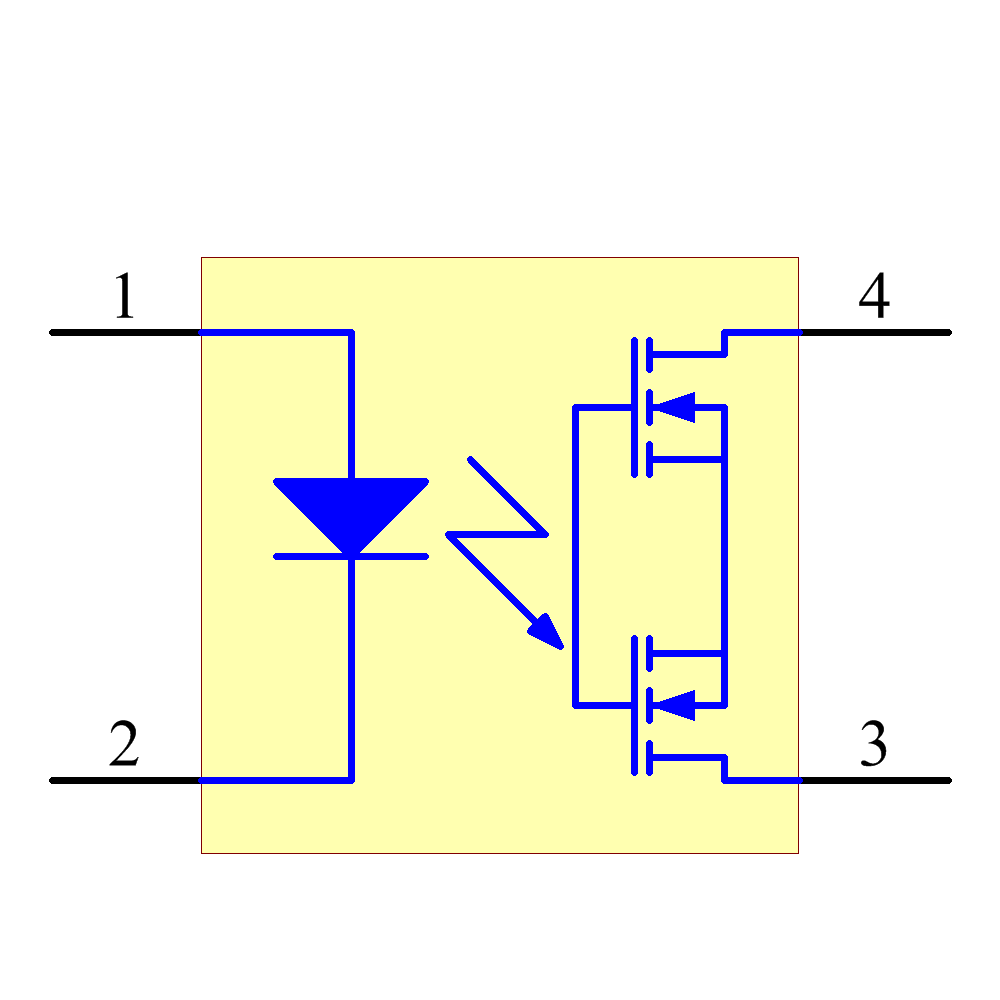

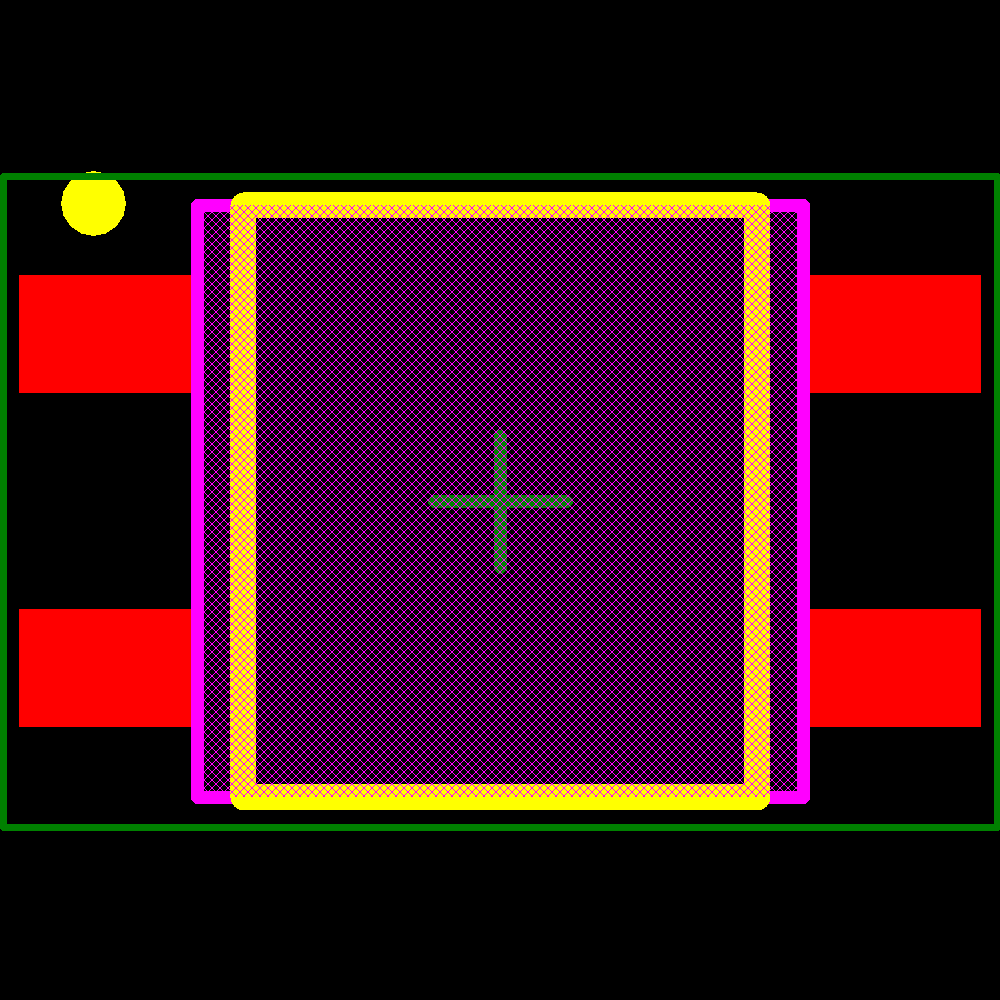

Images
