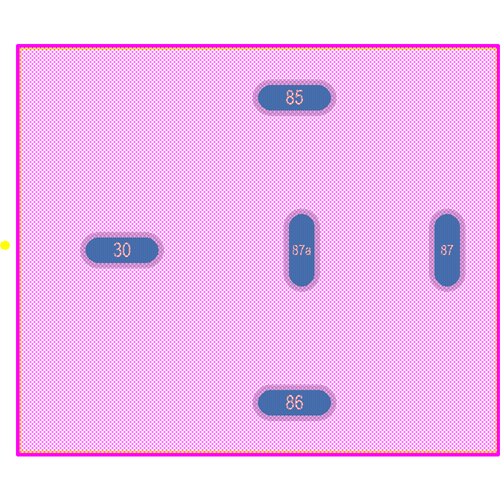

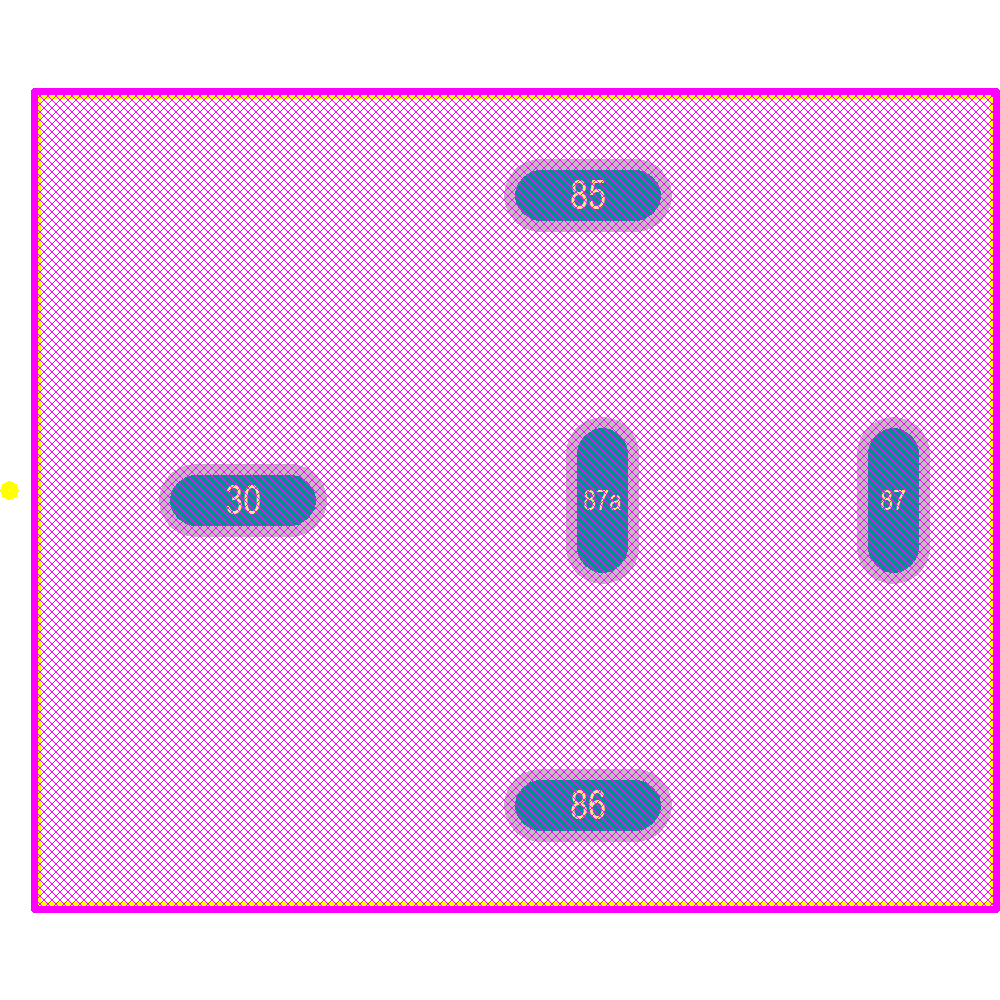

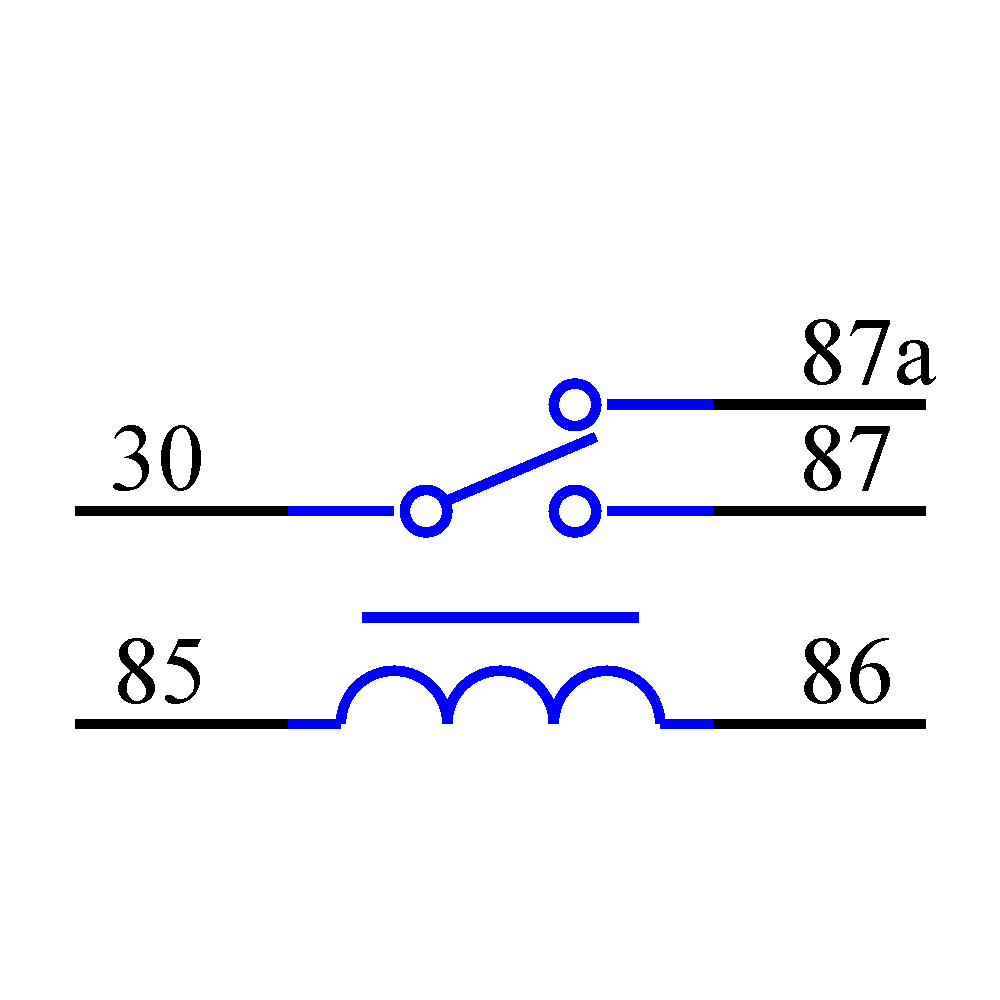

CB1-P-12V - Panasonic
PANASONIC - CB1-P-12V - Automotive Relay, 12 VDC, 40 A, SPDT, Through Hole, Solder, CB Series
Technical Details
| Ambient Temperature Range High | 85°C |
| China RoHS | Compliant |
| Coil Current | 117mA |
| Coil Power | 1.4W |
| Coil Resistance | 103Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 7V |
| Contact Current Rating | 3A |
| Contact Material | Cadmium, Gold, Silver |
| Current Rating | 40A |
| Depth | 22mm |
| Electrical Life | 50kcycles |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 26mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 14V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Number of Terminals | 5 |
| Operate Time | 15ms |
| Packaging | Box |
| Power Consumption | 1.4W |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | Automotive |
| Release Time | 15ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Sealable | EPOXY RESIN SEALED |
| Switching Current | 40A |
| Switching Voltage | 16V |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (DC) | 14V |
| Weight | 33g |
