Electromechanical > Relays > Power Relays

CB1A-P-24V - Panasonic

Relays 24VDC 320Ohm 20A SPST-NO(26mm 22mm 26mm) THT Automotive Relay Automotive

Technical Details

Ambient Temperature Range High	85°C
Coil Current	75mA
Coil Power	1.8W
Coil Resistance	320Ω
Coil Type	Non-Latching
Coil Voltage (DC)	14V
Contact Current Rating	20A
Contact Material	Cadmium, Silver
Contact Resistance	15mΩ
Current Rating	20A
Depth	22mm
Export Control Classification Number (ECCN) Code	EAR99
Electrical Life	50kcycles
Height	25mm
Harmonized Tariff Schedule (HTS) Code	8536.41.00.05
Insulation Resistance	20MΩ
Introduction Date	2006-10-25
Lead Free	Lead Free
Length	26mm
Lifecycle Status	Production
Max Current Rating	1A
Max Operating Temperature	85°C
Max Voltage Rating (DC)	24V
Min Operating Temperature	-40°C
Mount	Through Hole
Number of Contacts	1
Number of Pins	4
Number of Terminals	5
Operate Time	15ms
Packaging	Box
Power Consumption	1.8W
REACH SVHC	Yes
Relay Type	Automotive
Release Time	15ms
Response Time	15ms
RoHS	Compliant
Switching Current	20A
Termination	PC Pin
Throw Configuration	SPST
Weight	33g

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

Panasonic CB1A-P-24V | Farnell

Farnell

Datasheets

Onlinecomponents.com

Lifecycle Status Indicator

Production

Symbol

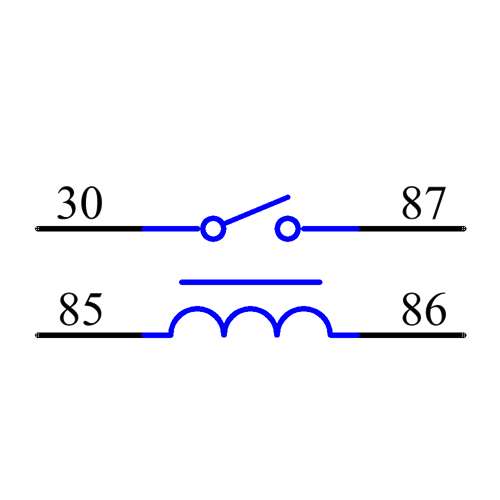

CB1A-P-24V Symbol - Panasonic

CB1A-P-24V Symbol - Panasonic

CB1A-P-24V Symbol - Panasonic

CB1A-P-24V Symbol - Panasonic

‹ ›

Footprint

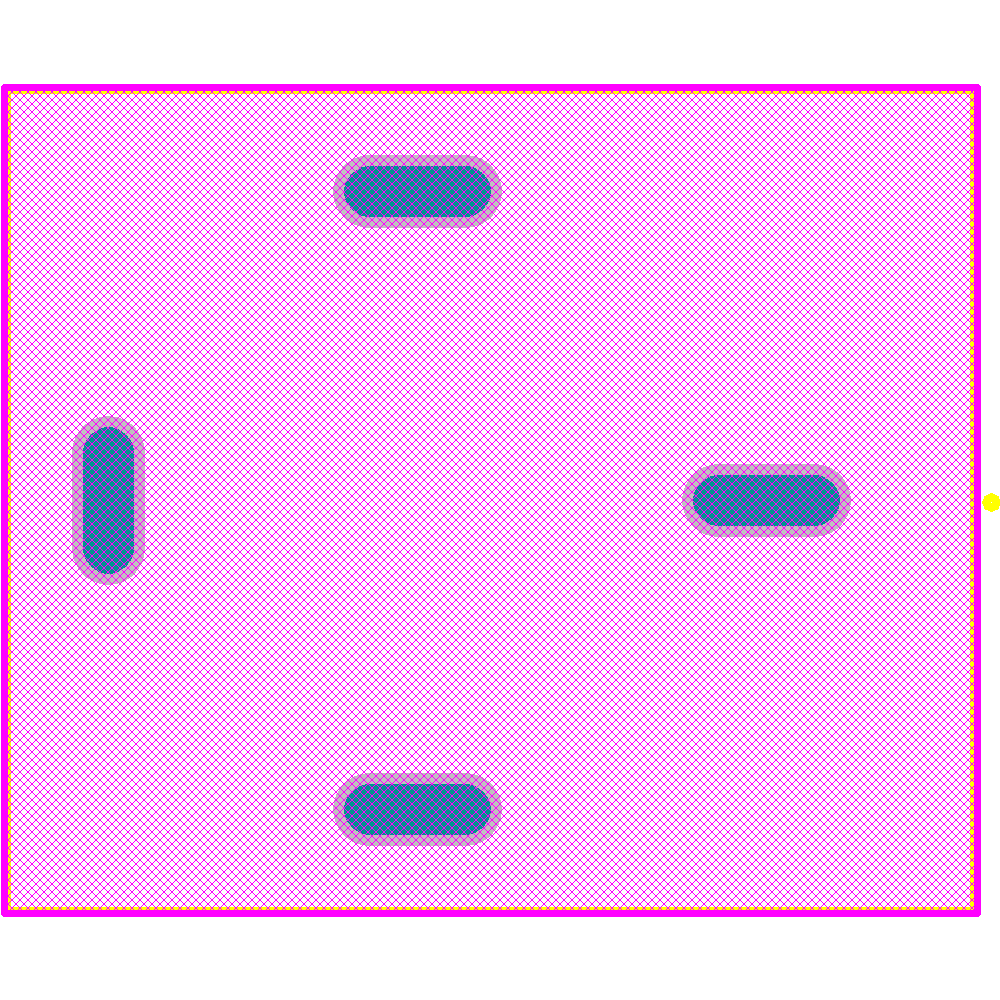

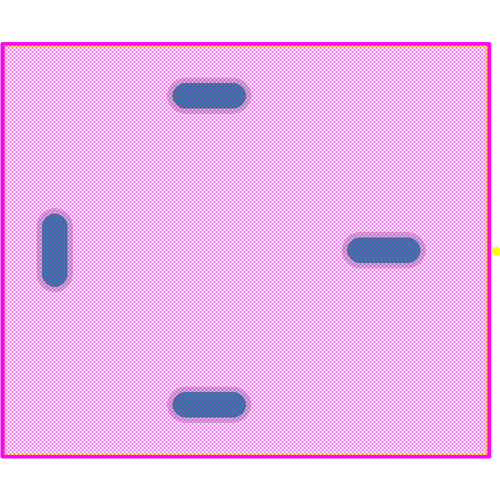

CB1A-P-24V Footprint - Panasonic

CB1A-P-24V Footprint - Panasonic

CB1A-P-24V Footprint - Panasonic

CB1A-P-24V Footprint - Panasonic

‹ ›

Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

Farnell

DE: 52

$

4.6844

4.179

4.0311

4.0311

4.0311

4.0311

TME

PL: 126

$

6.1637

6.1637

6.1637

6.1637

Onlinecomponents.com

US: 198

$

3.54

3.41

3.03

2.98

LCSC

CN: 8

$

7.637

6.8693

6.4025

6.0341

6.0341

6.0341

Master Electronics

US: 198

$

3.54

3.41

3.03

2.98

Jameco

US: 126

$

6.25

6.25

6.01

6.01

Verical

US: 126

$

4.04

4.04

4.04

4.04

Verical

US: 50

$

4.1647

4.1647

4.1647

4.1647

Verical

US: 32

$

3.53

3.53

3.53

3.53

Verical

US: 14

$

4.76

4.76

4.76

4.76

4.76

Arrow Electronics

US: 32

$

3.53

3.53

3.53

3.53

DigiKey

DE: 637

$

4.6351

4.1272

3.8067

3.6762

3.2733

3.2733

Mouser

US: 1

$

4.39

3.91

3.57

3.48

3.36

3.36

Abacus Technologies

US: 280

$

TTI

US: 0

$

3.46

3.41

3.33

3.33

Sager Electronics

US: 0

$

4.23

4.04

3.67

3.67

TTI Europe

DE: 400

$

4.3393

4.1913

4.0804

4.0804

Avnet

US: 0

$

3.5714

3.4788

3.2738

3.2738

Future Electronics

CA: 0

$

4.08

4.08

3.94

3.89

Newark

US: 52

$

5.81

5.61

5.09

4.89

4.78

4.78

element14 APAC

SG: 52

$

4.8262

4.295

4.2419

4.2419

4.2419

4.2419

Non-Authorized Distributors

Distributor

SKU

Stock

USD

1

10

50

100

1000

10000

Buy

GreenTree Electronics

IL: 266

$

Cytech Systems

CN: 5000

$

6.132

5.7641

5.7641

5.4575

5.1509

4.8443

Fly-Wing Technology

HK: 1859

$

4.0392

3.7902

3.7902

3.3686

3.0319

3.0319

Bettlink

HK: 639

$

3.6876

3.2347

3.2347

2.9407

2.5927

2.446

Ansinor

CN: 634

$

3.7794

3.7794

3.0638

2.7491

2.7491

ODG (Origin Data Global)

CN: 10

$

5.9343

4.7474

4.7474

4.7474

4.7474

ComSIT Distribution GmbH

DE: 800

$

Sourcengine

US: 126

$

NAC Semi

US: 261

$

20.53

18.67

18.67
