CB1AH-R-M-12V - Panasonic
Electromechanical Relay SPST-NO 40A 12VDC 89.5Ohm Bracket Mount
Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 168mA |
| Coil Power | 2W |
| Coil Resistance | 71.6Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 70A |
| Contact Material | Cadmium, Silver |
| Depth | 22mm |
| Height | 25mm |
| Lead Free | Lead Free |
| Length | 26mm |
| Lifecycle Status | Production |
| Max Current Rating | 40A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 14V |
| Min Operating Temperature | -40°C |
| Mount | Brackets, Chassis Mount, PCB |
| Number of Contacts | 1 |
| Number of Pins | 4 |
| Operate Time | 15ms |
| Packaging | Bulk |
| Power Consumption | 1.8W |
| Relay Type | Automotive |
| Release Time | 15ms |
| RoHS | Compliant |
| Termination | Quick Connect |
| Throw Configuration | SPST |
Compliance
RoHS : Unconfirmed

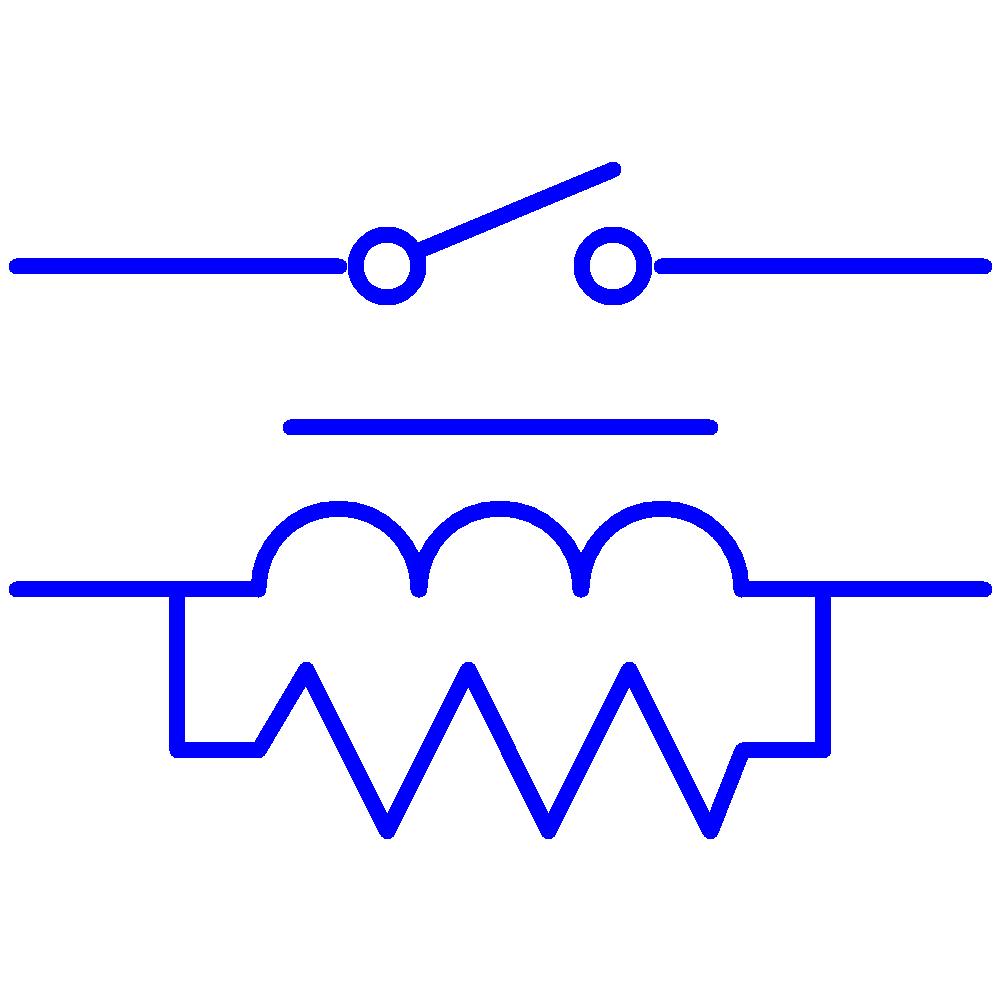

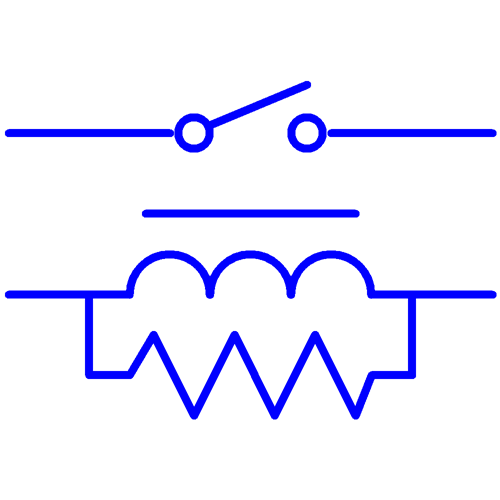

Images
