DE2A12D - Panasonic
Relay, 2 Form A (n/o), 12 V (DC), 720 Ω, 8 A, 230 V (DC), 440 V (AC), Monostable, DE2A12D
Technical Details
| Coil Current | 17mA |
| Coil Power | 200mW |
| Coil Resistance | 720Ω |
| Coil Voltage (DC) | 8.4V |
| Contact Current Rating | 8A |
| Contact Material | Silver, Tin |
| Contact Resistance | 30mΩ |
| Contact Voltage Rating (AC) | 250V |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 12.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2022-04-19 |
| Lead Free | Lead Free |
| Length | 25mm |
| Lifecycle Status | Production |
| Max Current Rating | 8A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Number of Pins | 6 |
| Number of Terminals | 6 |
| Power Rating | 200mW |
| Ratings | IP67 |
| Release Time | 5ms |
| Response Time | 10ms |
| RoHS | Compliant |
| Switching Capacity | 2kW |
| Switching Current | 8A |
| Throw Configuration | DPST |
Compliance
RoHS : Unconfirmed

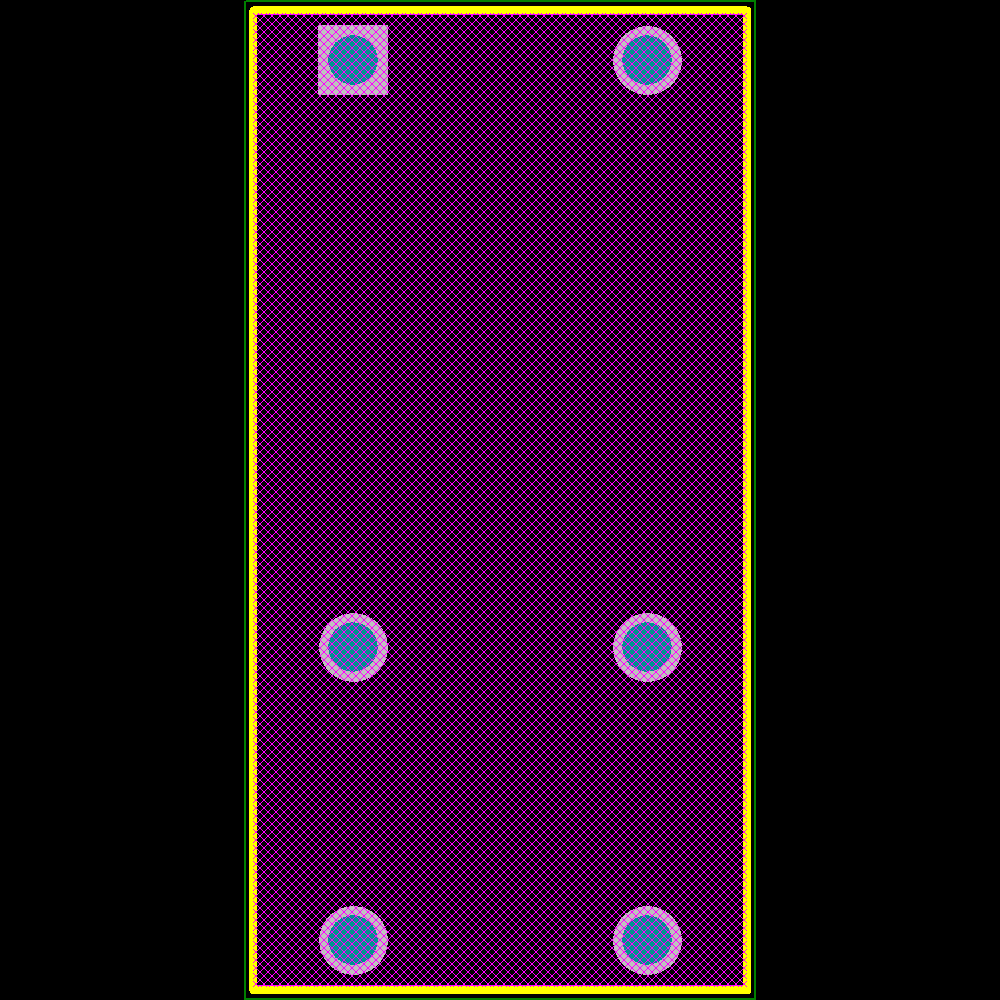

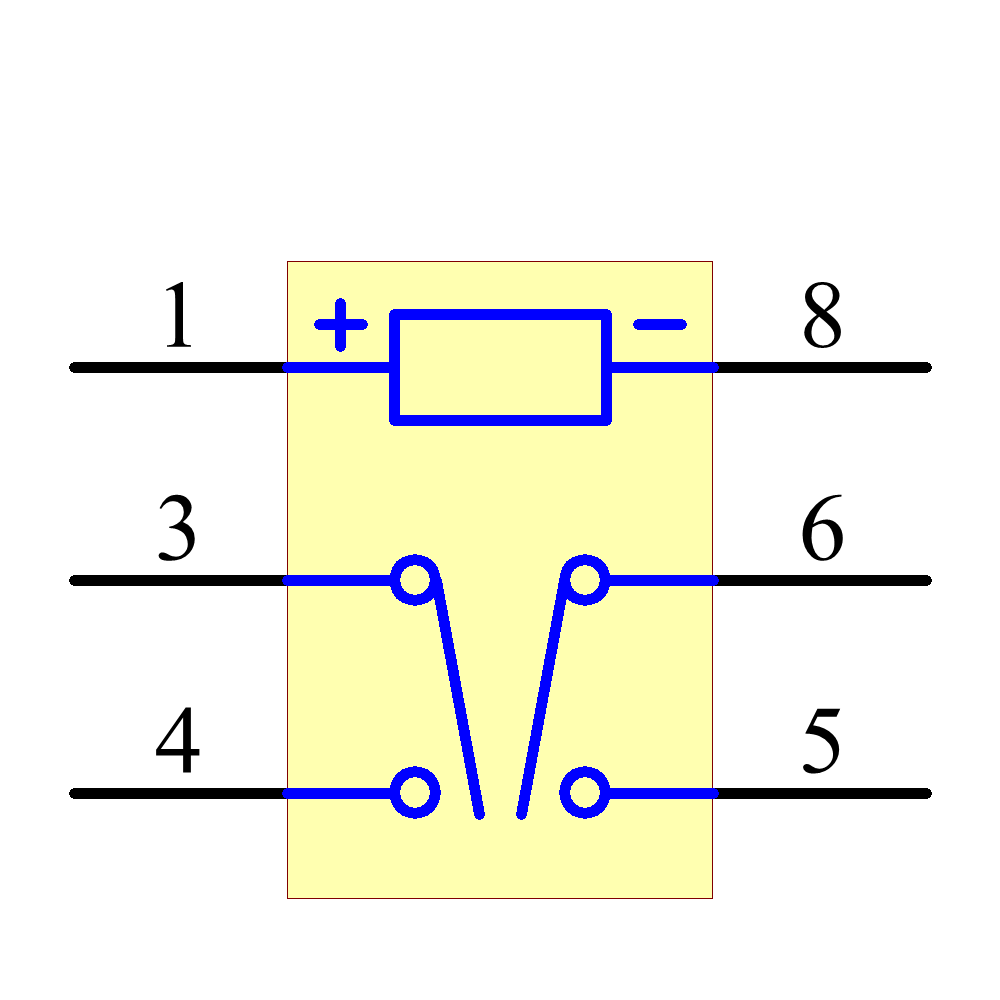

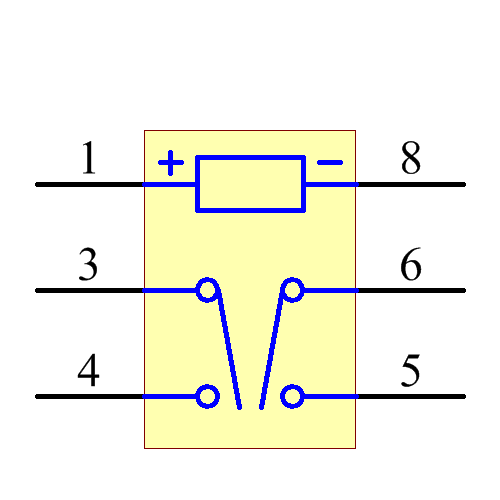

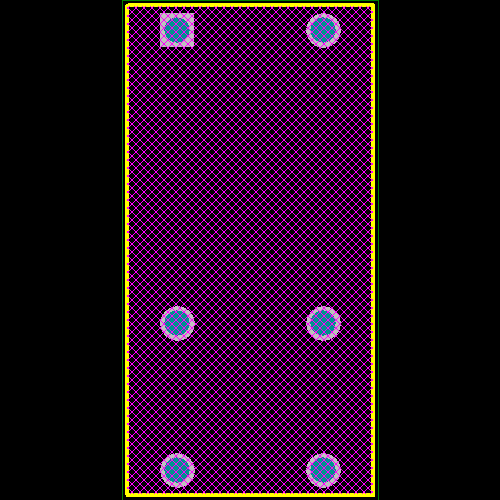

Images
