DSP1A-L2-DC24V - Panasonic
DSP Series 8 A SPST 24 VDC Through Hole Miniature 2 Coil Latching Power Relay
Technical Details
| Coil Current | 13mA |
| Coil Power | 300mW |
| Coil Resistance | 1.92kΩ |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 19.2V |
| Contact Current Rating | 8A |
| Contact Material | Gold, Silver, Tin |
| Contact Voltage Rating (AC) | 380V |
| Depth | 11mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 10.5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.49.00.50 |
| Introduction Date | 2005-10-17 |
| Lead Free | Lead Free |
| Length | 20.2mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Min Operating Temperature | -40°C |
| Number of Pins | 6 |
| Operate Time | 10ms |
| Packaging | Box |
| Power Consumption | 300mW |
| Power Rating | 300mW |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 10ms |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| Weight | 4.5g |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

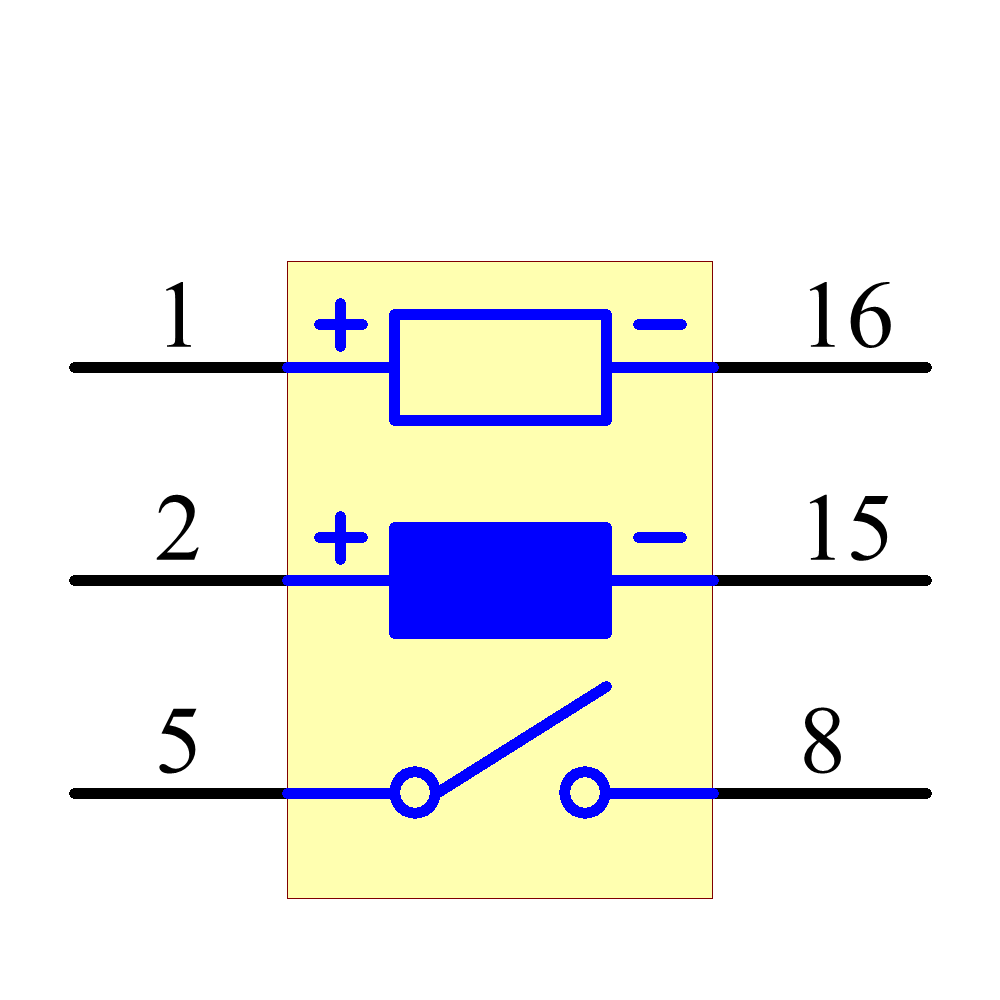

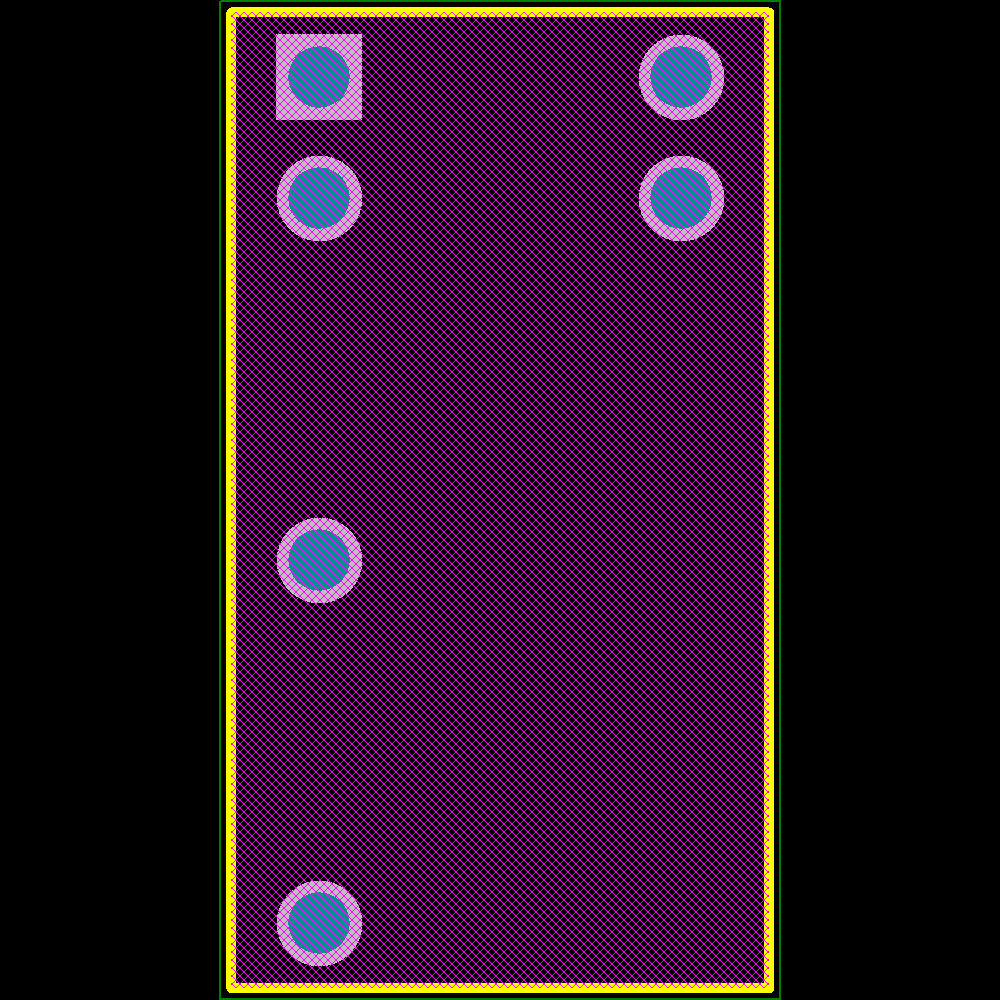

Images
