DSP2A-L2-DC5V - Panasonic
RELAY GENERAL PURPOSE DPST 5A 5V | Panasonic Electronic Components DSP2A-L2-DC5V
Technical Details
| Case/Package | DIP |
| Coil Current | 60mA |
| Coil Power | 300mW |
| Coil Resistance | 83Ω |
| Coil Type | Latching, Dual Coil |
| Coil Voltage (DC) | 4V |
| Contact Current Rating | 5A |
| Contact Material | Gold, Silver, Tin |
| Contact Voltage Rating (AC) | 380V |
| Depth | 11mm |
| Electrical Life | 100kcycles |
| Height | 10.5mm |
| Lead Free | Lead Free |
| Length | 20.2mm |
| Lifecycle Status | Production |
| Max Current Rating | 5A |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 125V |
| Min Operating Temperature | -40°C |
| Number of Pins | 8 |
| Operate Time | 10ms |
| Packaging | Box |
| Power Consumption | 300mW |
| Power Rating | 300mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 10ms |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Termination | PC Pin |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 30V |
| Weight | 4.5g |
| Width | 11mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

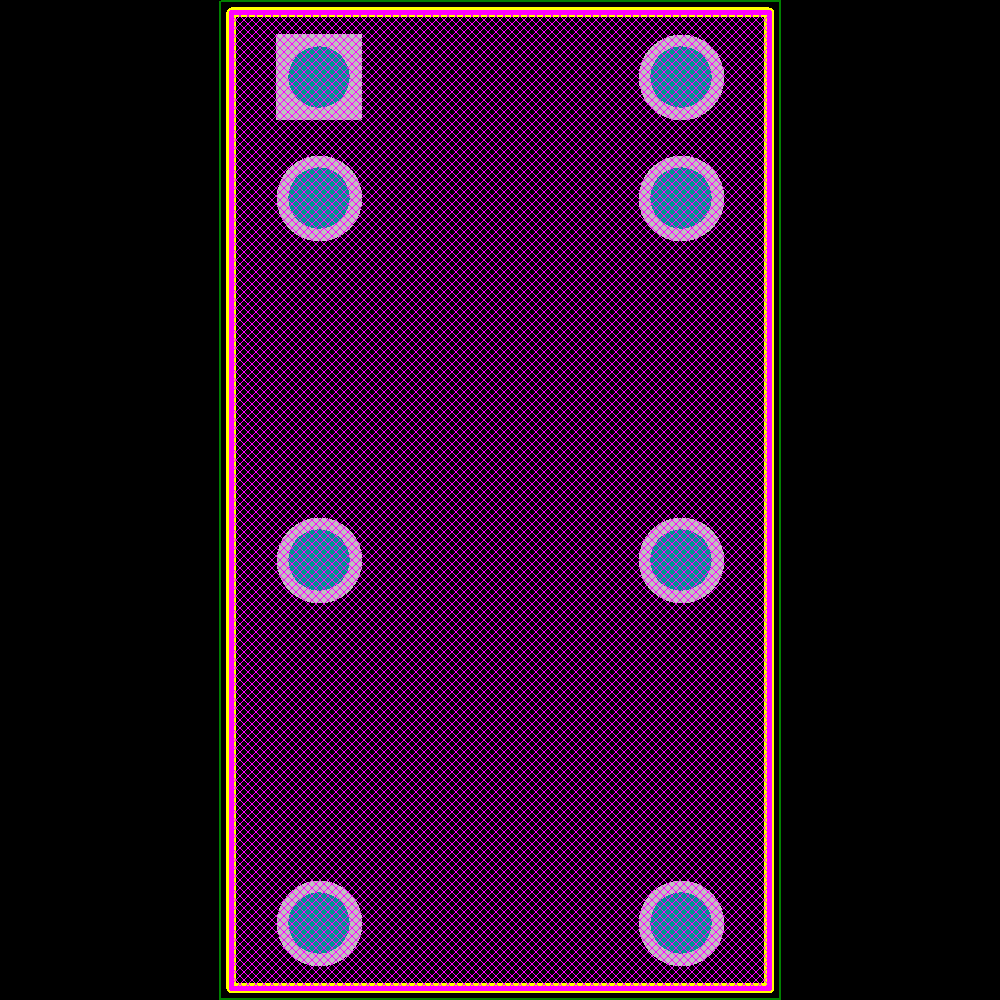

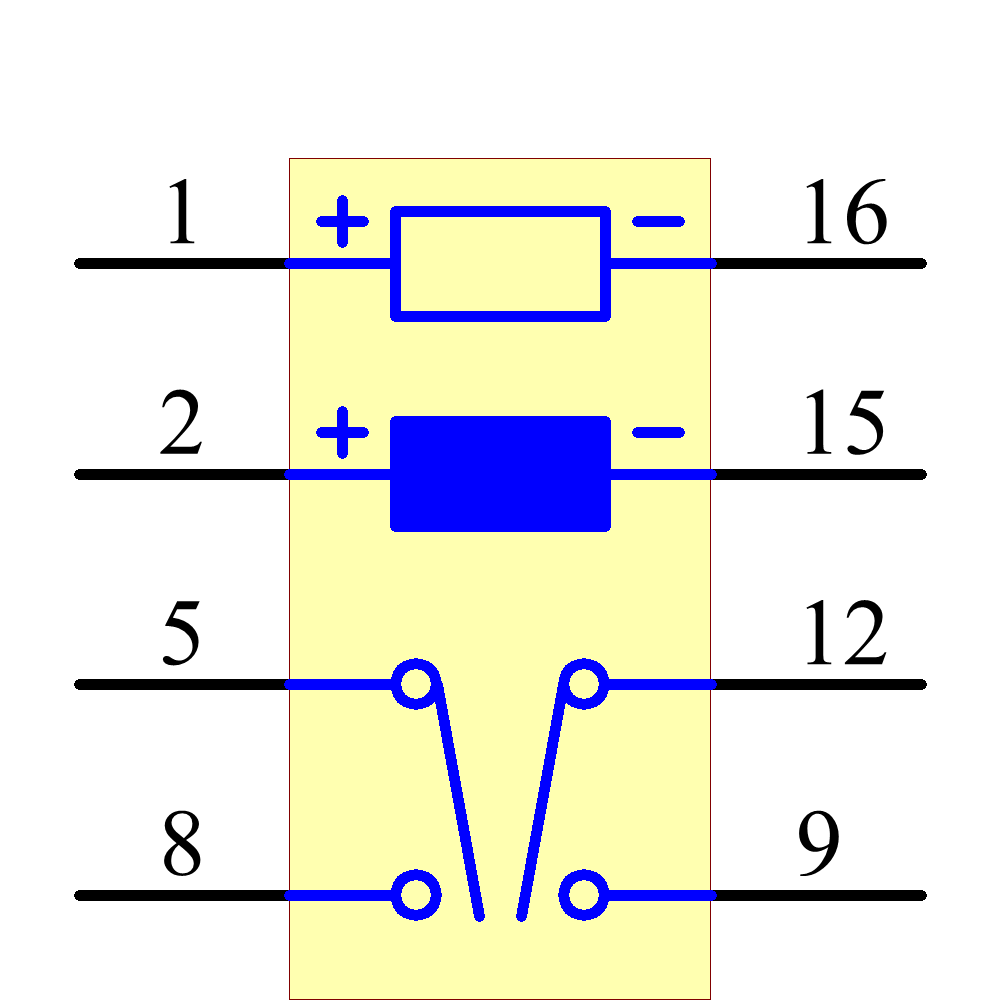

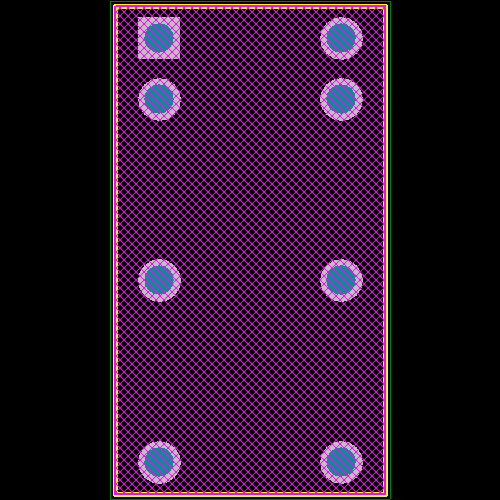

Images
