JW1FSN-B-DC24V - Panasonic
RELAY GEN PURPOSE SPDT 10A 24V | Panasonic Electronic Components JW1FSN-B-DC24V
Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 22mA |
| Coil Power | 530mW |
| Coil Resistance | 1.1kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 16.8V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Tin |
| Contact Plating | Silver |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 10A |
| Depth | 12.8mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 20.4mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.41.00.20 |
| Introduction Date | 2010-04-09 |
| Lead Free | Lead Free |
| Length | 28.6mm |
| Lifecycle Status | Production |
| Max Current Rating | 10A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 1 |
| Number of Pins | 5 |
| Operate Time | 15ms |
| Packaging | Box |
| Power Consumption | 530mW |
| Power Rating | 530mW |
| Radiation Hardening | No |
| REACH SVHC | Yes |
| Relay Type | General Purpose |
| Release Time | 5ms |
| Response Time | 15ms |
| RoHS | Compliant |
| Switching Current | 10A |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| Voltage Rating (DC) | 30V |
| Weight | 13g |
| Width | 12.8mm |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

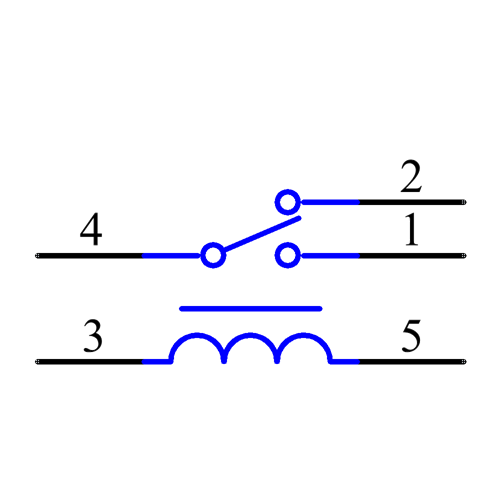

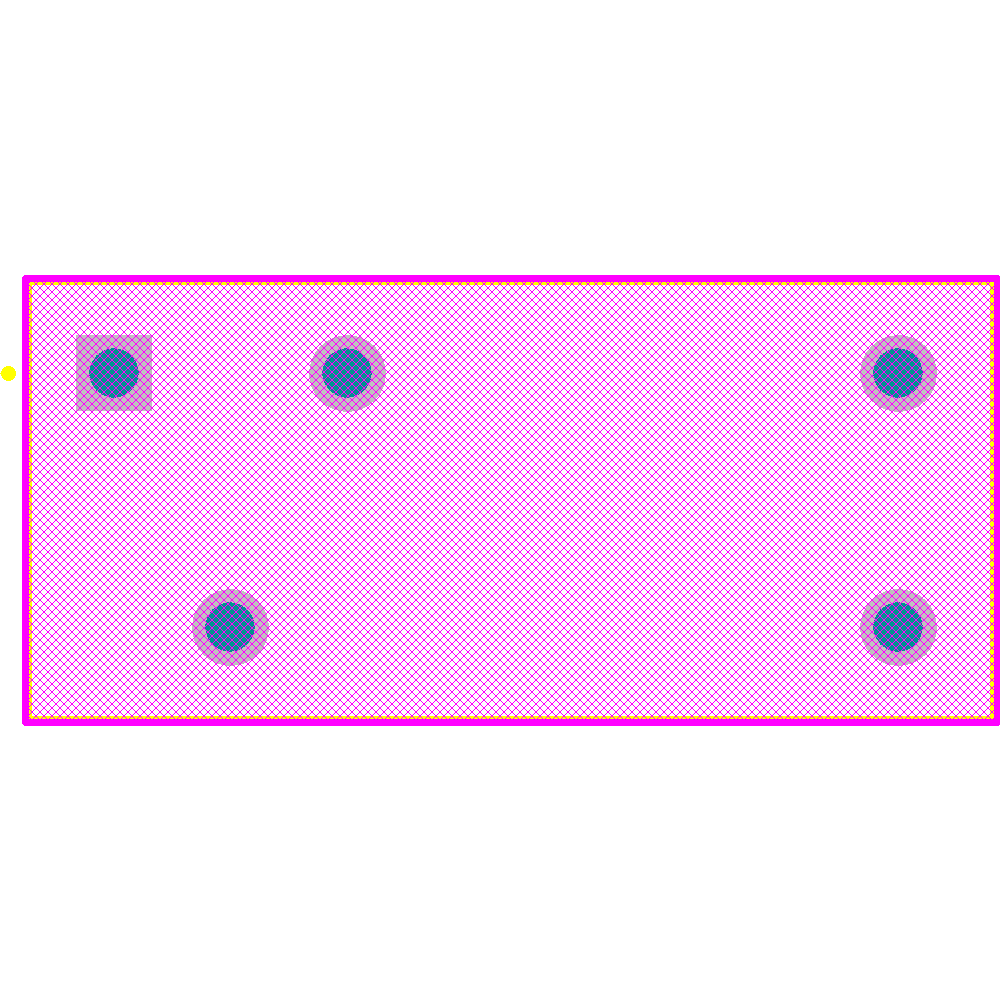

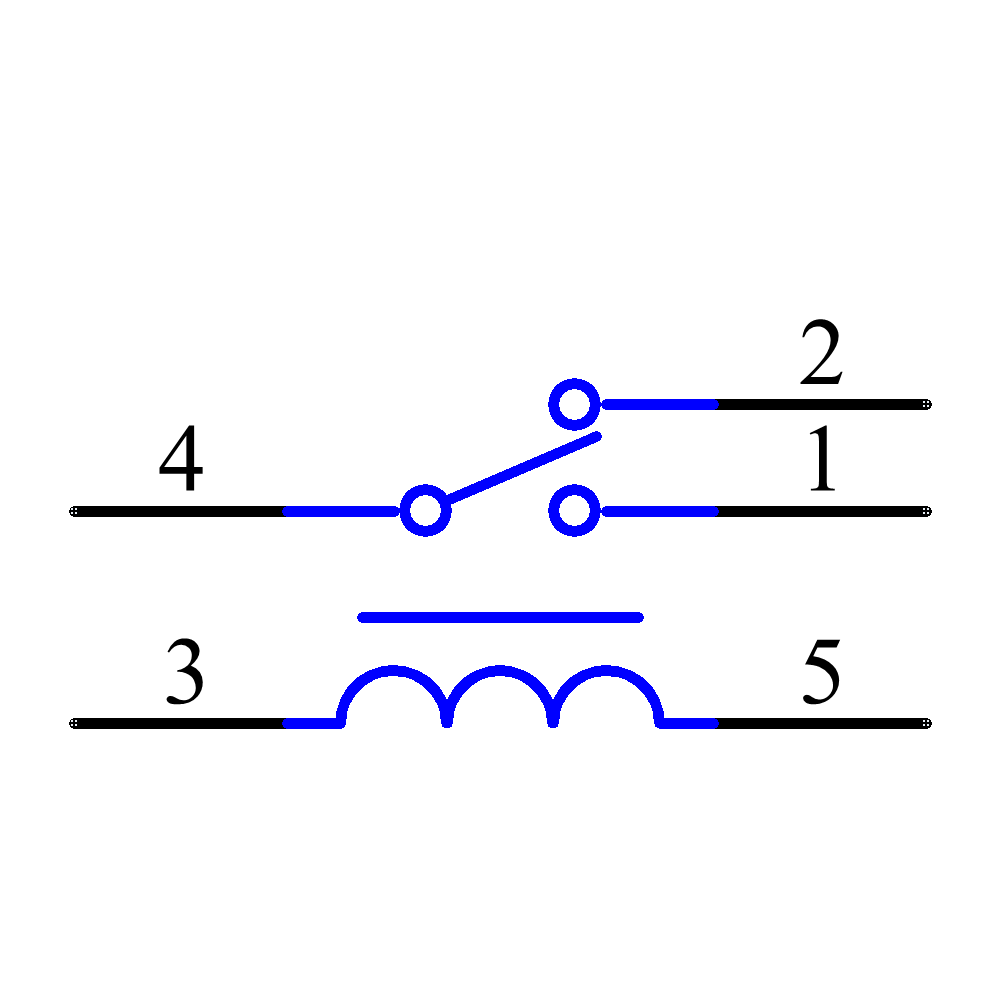

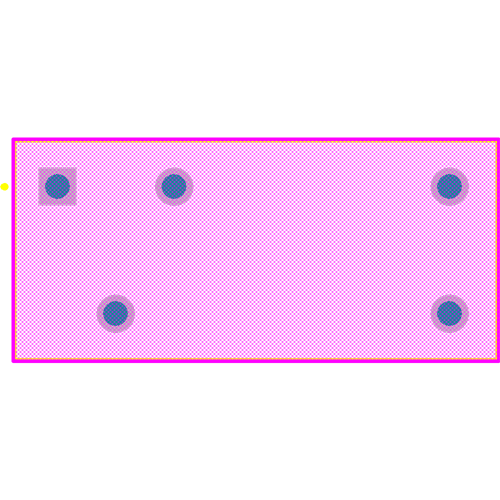

Images
