SFY3-DC5V - Panasonic
Electromechanical Relay 5VDC 38Ohm 6A 3PST-NO/SPST-NC (31x28.6x14.5)mm THT Compact Relay
Technical Details
| Ambient Temperature Range High | 70°C |
| Coil Current | 134mA |
| Coil Power | 670mW |
| Coil Resistance | 38Ω |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 3.75V |
| Contact Current Rating | 6A |
| Contact Material | Gold, Silver |
| Contact Voltage Rating (AC) | 250V |
| Current Rating | 6A |
| Depth | 28.6mm |
| Electrical Life | 100kcycles |
| Height | 14.5mm |
| Length | 31mm |
| Lifecycle Status | Production |
| Max Current Rating | 6A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Pins | 10 |
| Number of Poles | 4 |
| Operate Time | 20ms |
| Power Consumption | 670mW |
| REACH SVHC | Yes |
| Relay Type | Safety |
| Release Time | 10ms |
| Response Time | 20ms |
| RoHS | Compliant |
| Sealable | RT3 |
| Switching Current | 6A |
| Termination | PC Pin |
| Throw Configuration | 4PST |
| Voltage Rating (AC) | 250V |
| Weight | 19g |
| Width | 28.6mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes

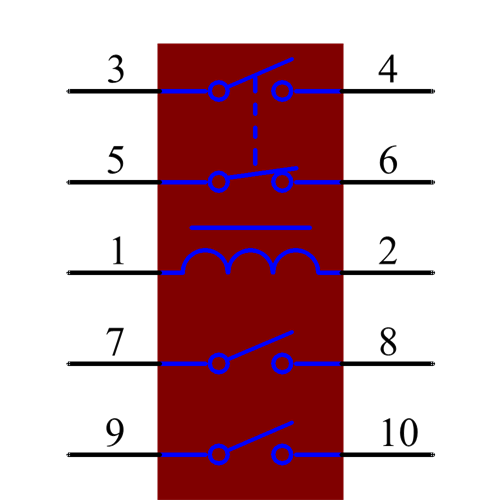

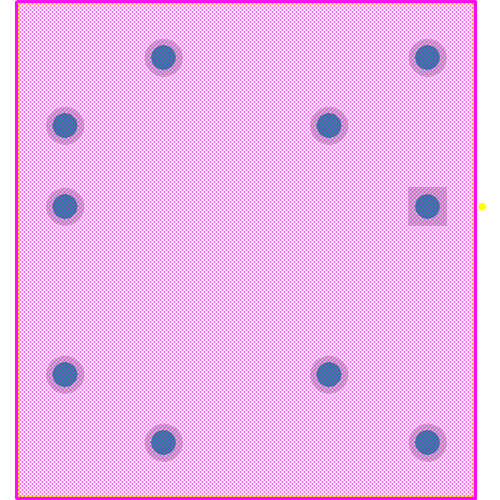

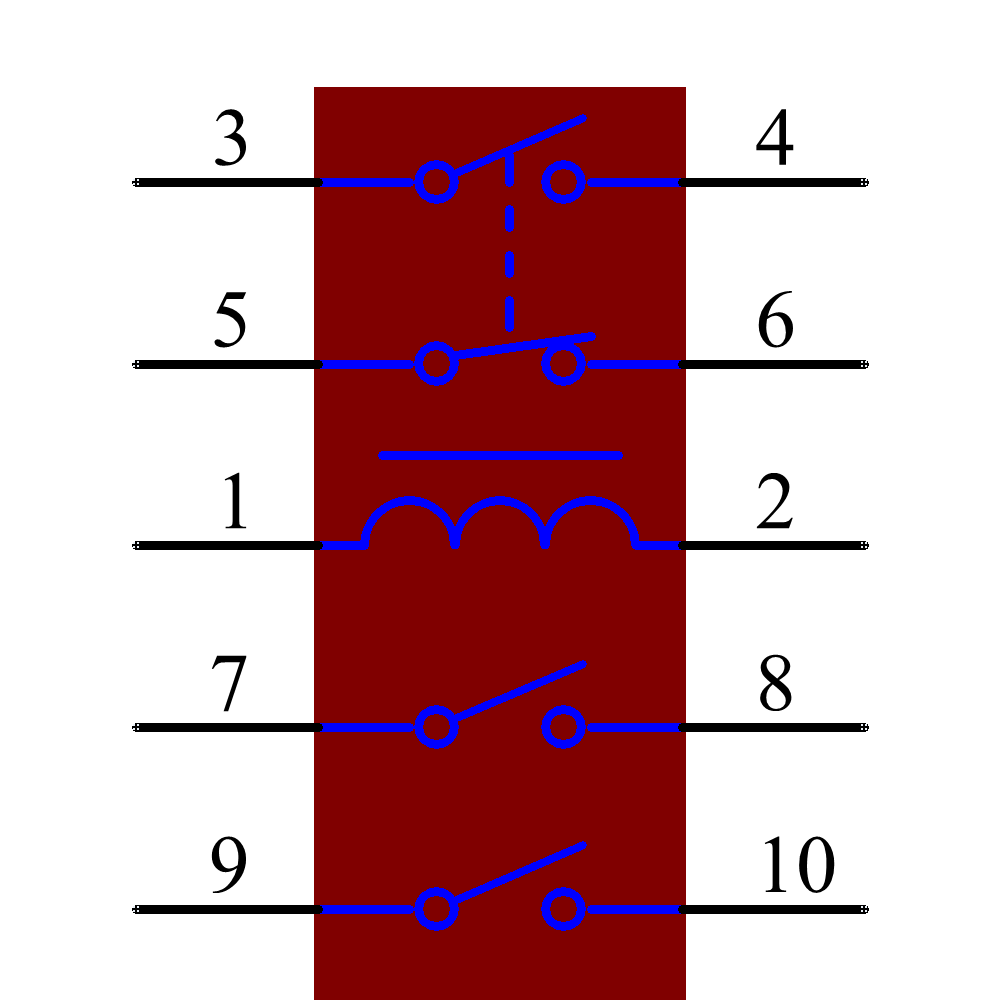

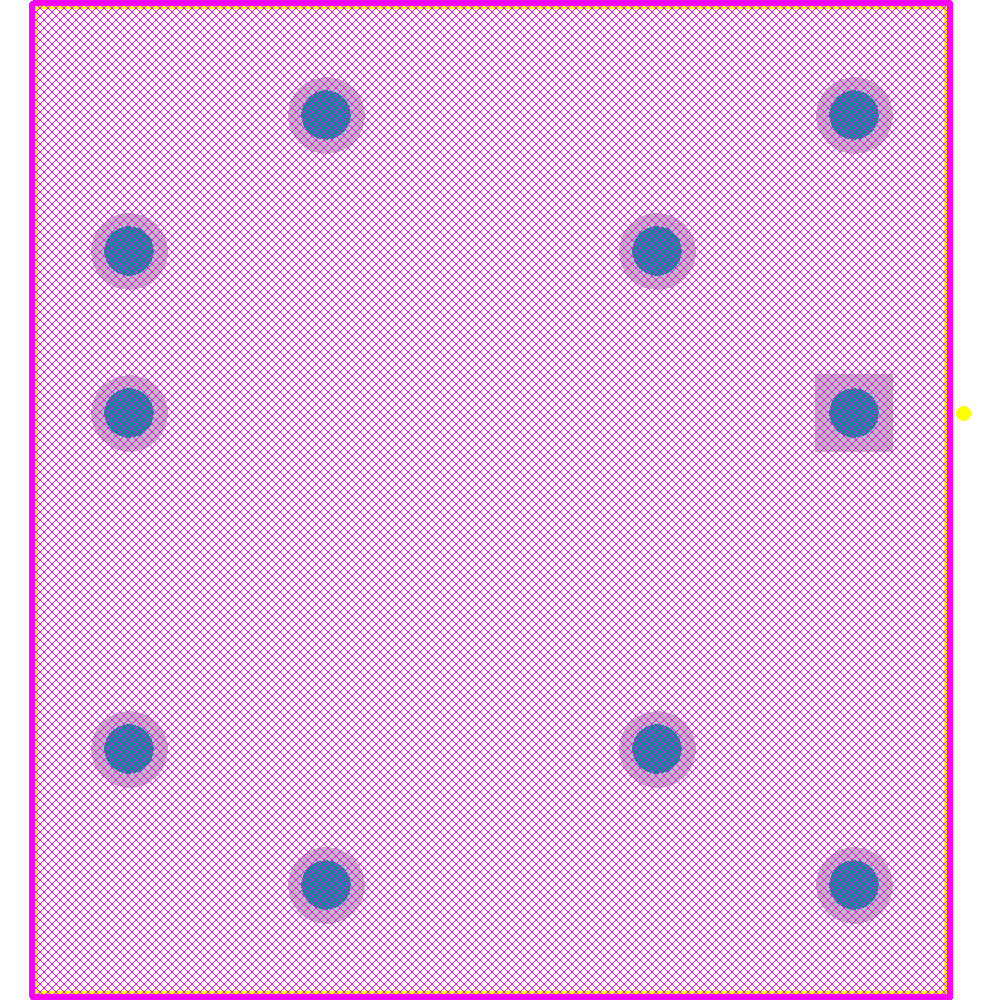

Images
