Panasonic - ST1-DC5V-F

ST1-DC5V-F - Panasonic

Power Relay 5VDC 8A SPST-NO/SPST-NC (( 31mm 14mm 11.3mm)) Through Hole

 Datasheets

Technical Details

Ambient Temperature Range High 60°C
Approvals CSA, UL, VDE
Coil Current 47mA
Coil Power 240mW
Coil Resistance 105Ω
Coil Type Non-Latching
Coil Voltage (DC) 4V
Contact Current Rating 8A
Contact Material Gold, Silver, Tin
Contact Plating Gold
Contact Resistance 30mΩ
Contact Voltage Rating (AC) 380V
Current Rating 8A
Depth 14mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 11.3mm
Harmonized Tariff Schedule (HTS) Code 8536.49.00.50
Insulation Resistance 1GΩ
Introduction Date 2006-09-14
Lead Free Lead Free
Length 31mm
Lifecycle Status Production
Max Current Rating 8A
Max Operating Temperature 60°C
Max Voltage Rating (AC) 380V
Max Voltage Rating (DC) 250V
Min Operating Temperature -40°C
Mount PCB, Through Hole
Number of Contacts 2
Number of Pins 6
Number of Terminals 8
Operate Time 15ms
Packaging Bulk
Power Consumption 240mW
Power Rating 240mW
REACH SVHC Yes
Relay Type General Purpose
Release Time 10ms
Response Time 15ms
RoHS Compliant
Switching Current 8A
Termination PC Pin
Throw Configuration DPST
Voltage Rating (AC) 380V
Weight 10g
Width 14mm

Compliance

   RoHS : Unconfirmed
   REACH SVHC : Yes

Images

Panasonic ST1-DC5V-F | TME

TME

Datasheets

 RS
 RS
 Verical

Lifecycle Status Indicator

   Production
Symbol

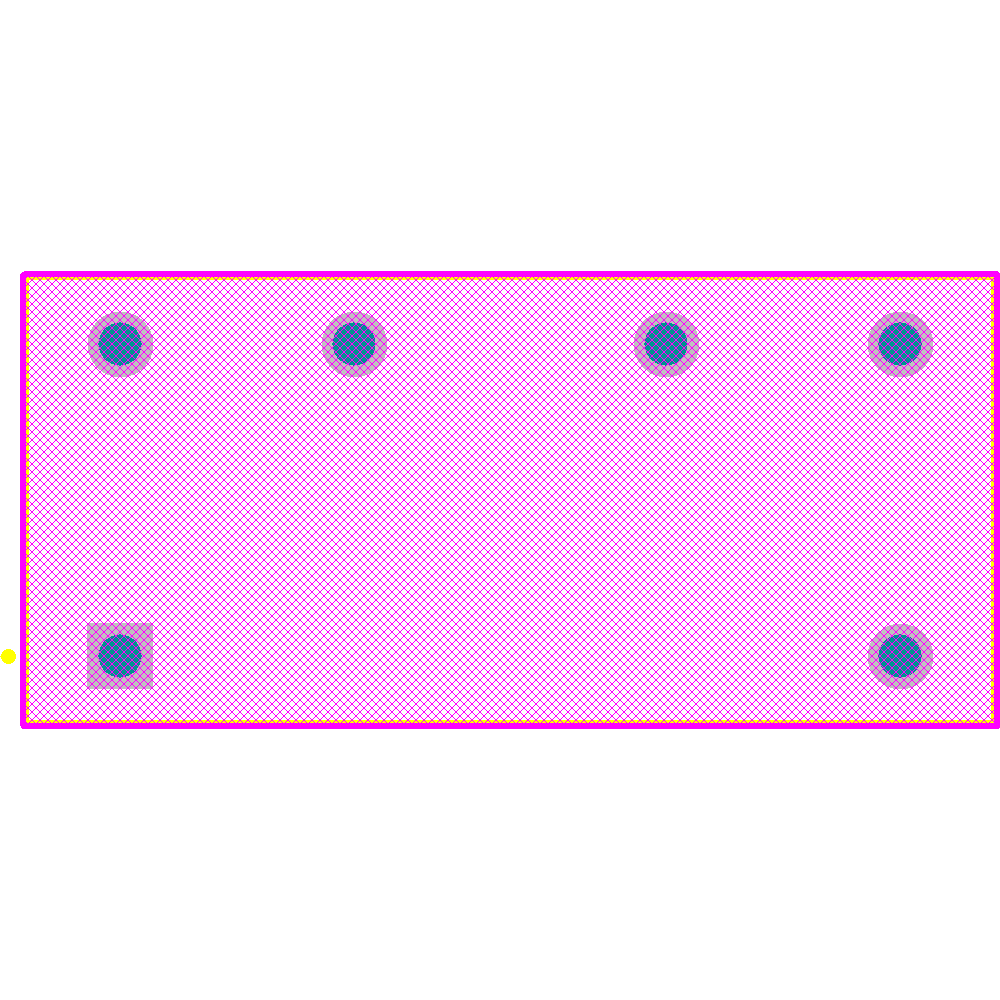

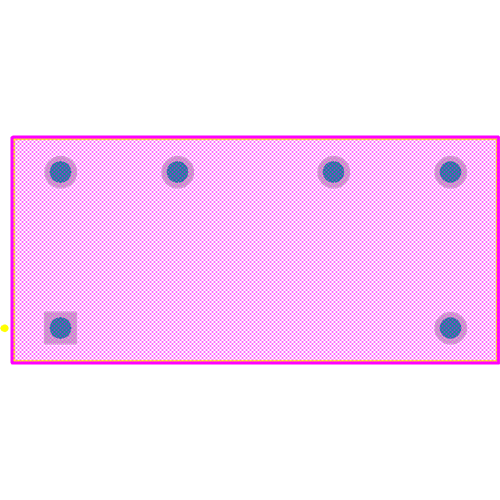

Footprint
