TQ2-12V - Panasonic
Electromechanical Relay 12VDC 1.028KOhm 1A DPDT (14x9x5)mm THT General Purpose Relay
Technical Details
| Approvals | CSA, UL |
| Case/Package | DIP |
| Coil Current | 12mA |
| Coil Power | 140mW |
| Coil Resistance | 1.028kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 75mΩ |
| Contact Voltage Rating (AC) | 125V |
| Country of Origin | Japan |
| Current Rating | 1A |
| Depth | 9mm |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 5mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.49.00.50 |
| Insertion Loss (dB) | 0.6dB |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2005-10-25 |
| Lead Free | Lead Free |
| Length | 14mm |
| Lifecycle Status | Production |
| Max Current Rating | 2A |
| Max Operating Temperature | 70°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 220V |
| Min Operating Temperature | -40°C |
| Mount | PCB, Through Hole |
| Number of Pins | 8 |
| Number of Terminals | 10 |
| Operate Time | 3ms |
| Power Consumption | 140mW |
| Power Rating | 140mW |
| Radiation Hardening | No |
| Ratings | IP67 |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 4ms |
| Response Time | 4ms |
| RoHS | Compliant |
| Switching Current | 1A |
| Switching Voltage | 125V |
| Termination | PC Pin |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Voltage Rating (DC) | 110V |
| Weight | 1.5g |
Compliance
RoHS : Unconfirmed
Radiation Hardening : No
REACH SVHC : Yes

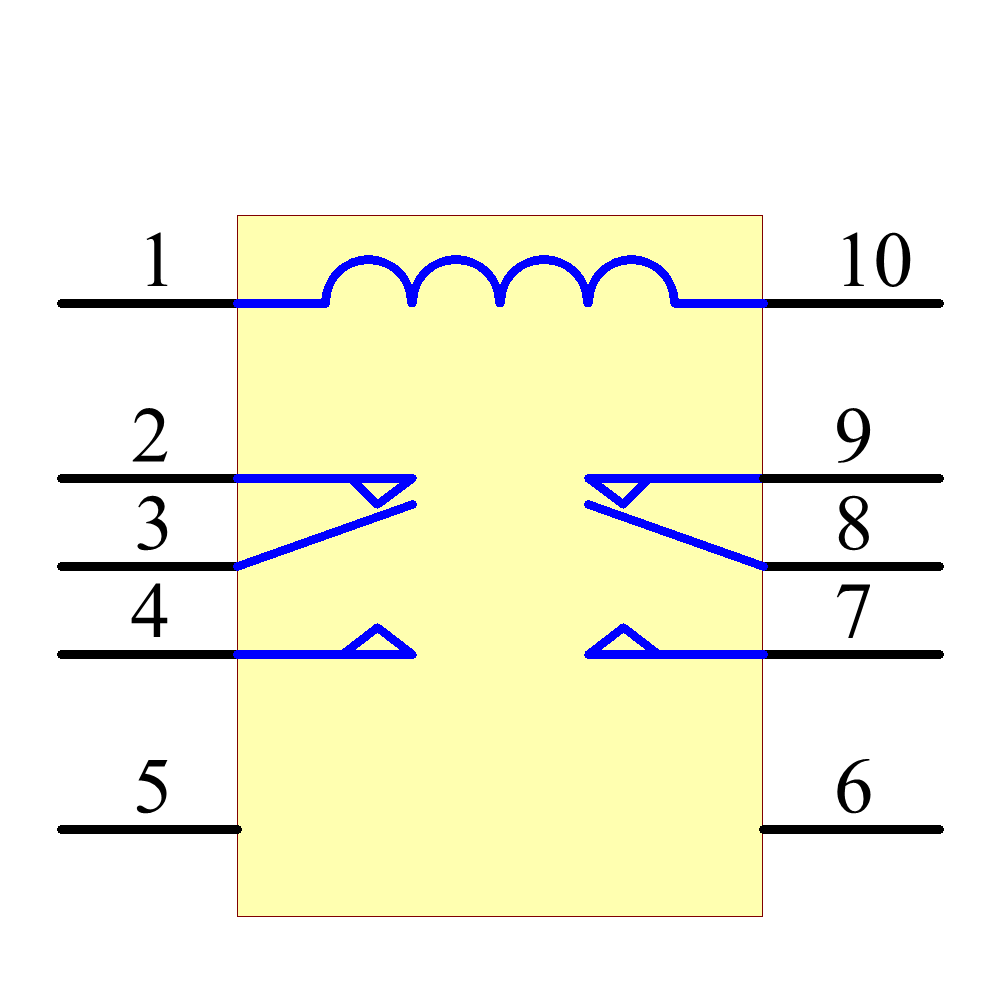

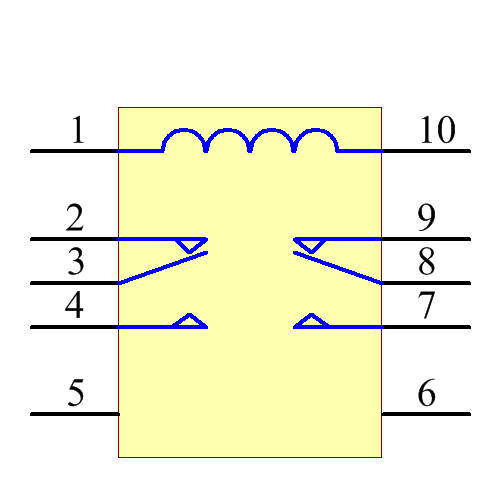

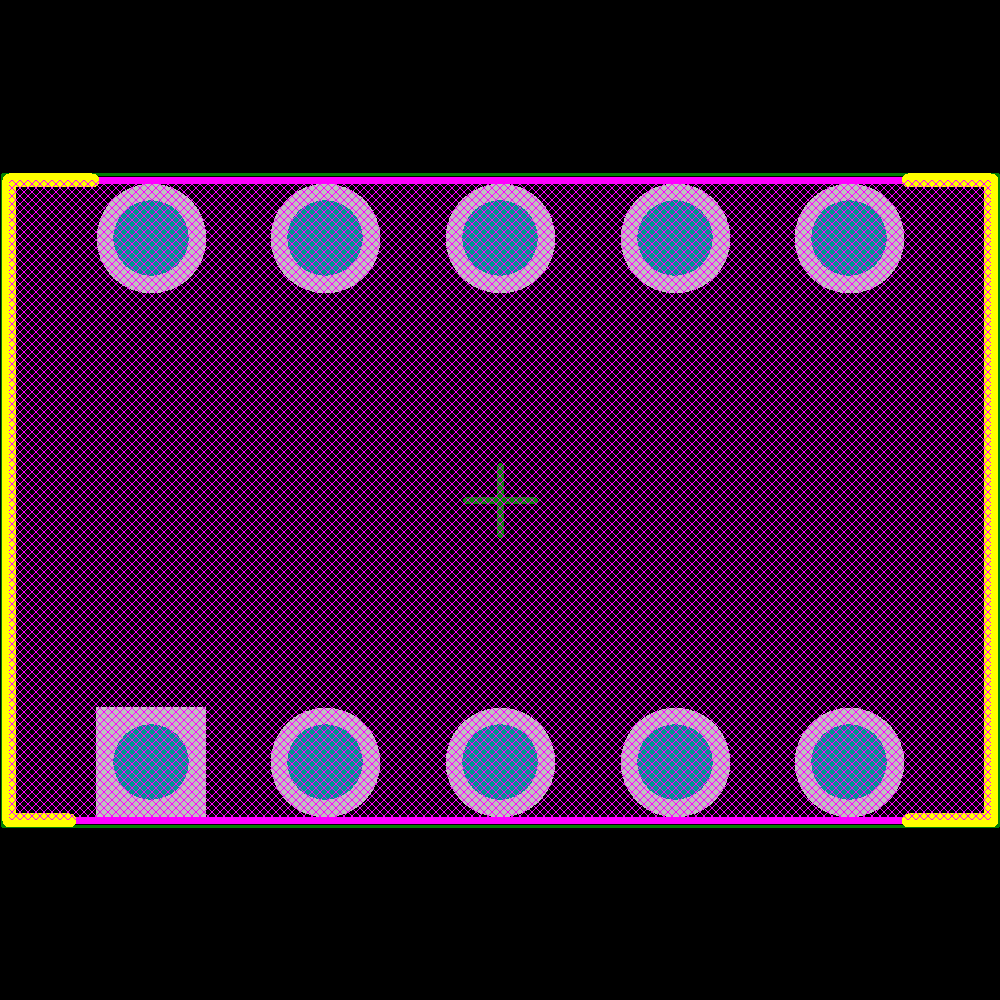

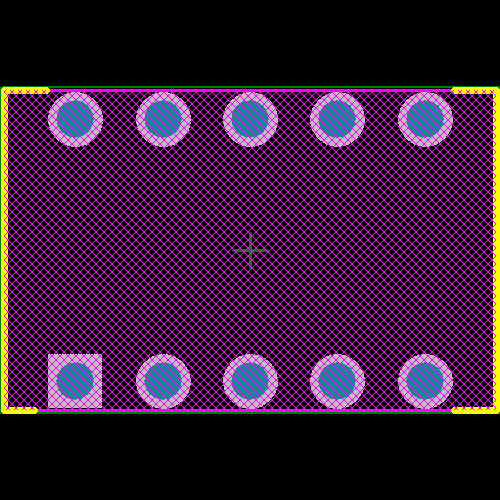

Images
