Panasonic - TX2-4.5V

TX2-4.5V - Panasonic

Relay; 2 A @ 30 VDC; High Capacity; 1000 Megohms (Min.) @ 500 VDC; PCB; 60 W

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
Approvals CSA, UL
Case/Package DIP
Coil Current 31mA
Coil Power 140mW
Coil Resistance 145Ω
Coil Type Non-Latching
Coil Voltage (DC) 3.38V
Contact Current Rating 2A
Contact Material Silver
Contact Plating Gold
Contact Resistance 100mΩ
Current Rating 2A
Depth 7.4mm
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 100kcycles
Height 8.2mm
Harmonized Tariff Schedule (HTS) Code 8536.49.00.50
Insertion Loss (dB) 0.8dB
Insulation Resistance 1GΩ
Introduction Date 2005-10-25
Lead Free Lead Free
Length 15mm
Lifecycle Status Production
Max Current Rating 2A
Max Operating Temperature 85°C
Max Voltage Rating (DC) 220V
Min Operating Temperature -40°C
Mount PCB, Through Hole
Number of Contacts 2
Number of Pins 8
Number of Poles 2
Number of Terminals 8
Operate Time 4ms
Packaging Bulk
Power Consumption 140mW
Power Rating 60W
Radiation Hardening No
REACH SVHC Yes
Relay Type Telecom
Release Time 4ms
Response Time 4ms
RoHS Compliant
Sealable WATER PROOF
Switching Current 2A
Termination PC Pin
Throw Configuration DPDT
Type Electromechanical
Voltage Rating (DC) 220V
Weight 2g

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Panasonic TX2-4.5V | Future Electronics

Future Electronics

Datasheets

 Farnell
 Onlinecomponents.com
 Master Electronics

Lifecycle Status Indicator

   Production
Symbol

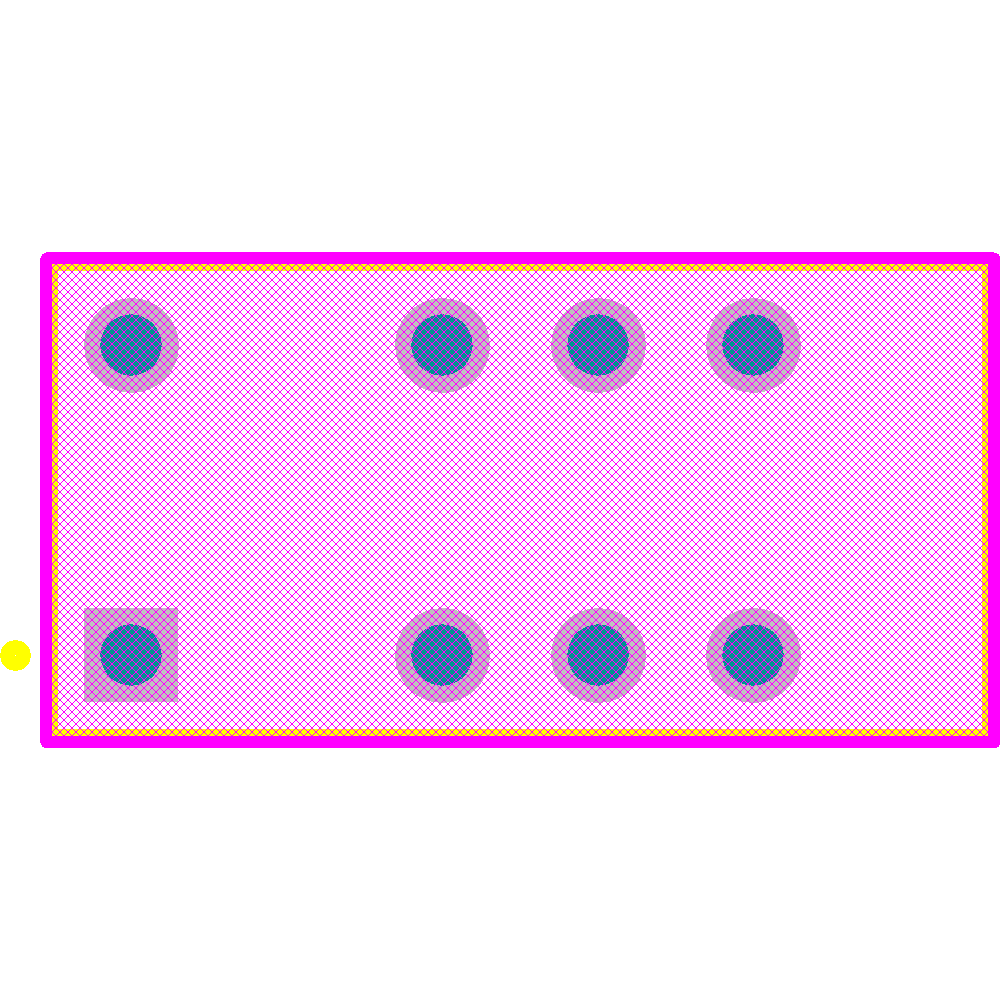

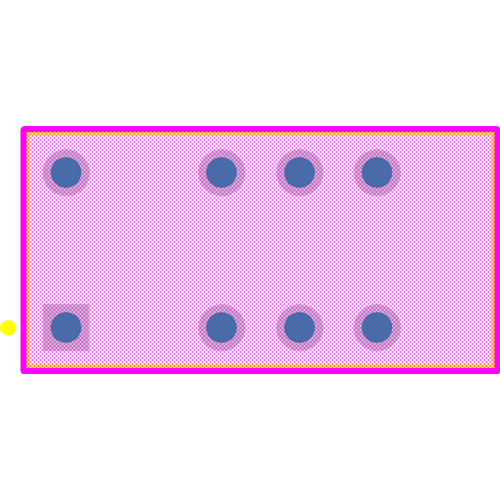

Footprint
