TX2SS-12V-Z - Panasonic
TX Series High Sensitivity 2 A DPDT 12 VDC Surface Mount Signal Relay

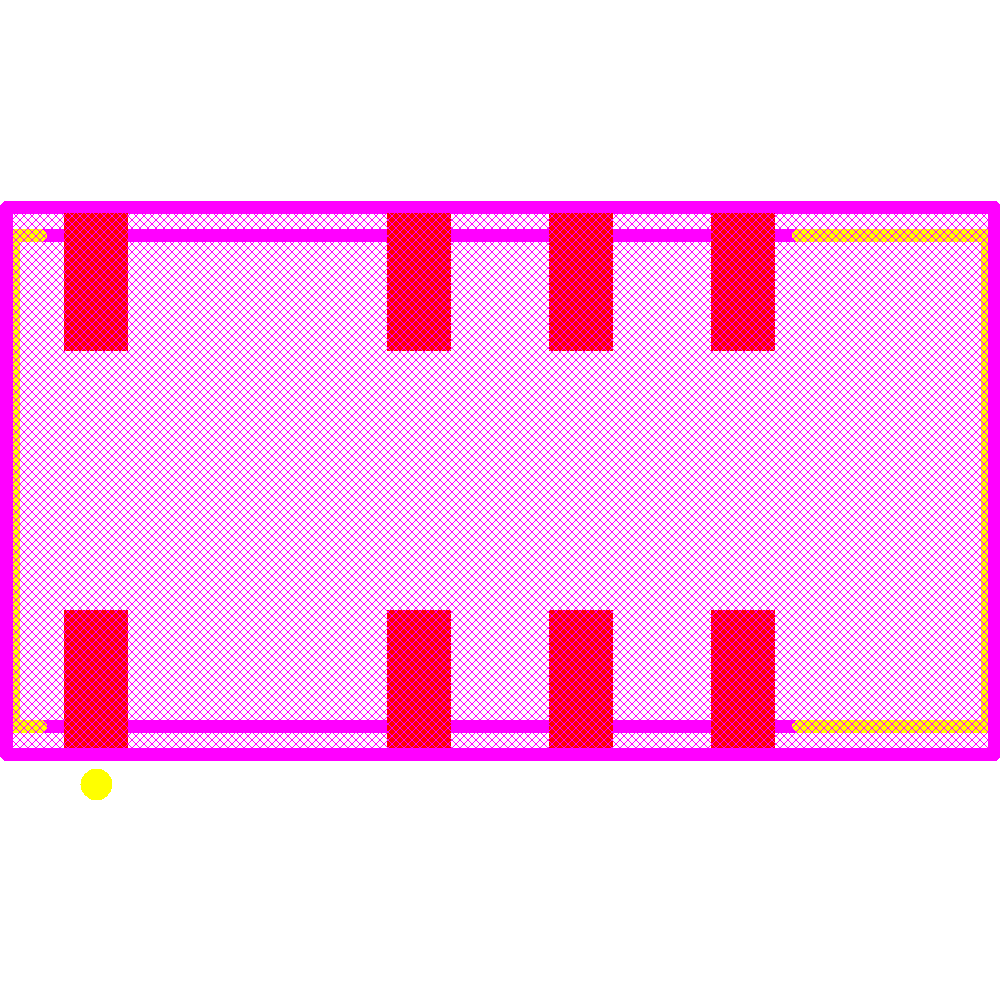

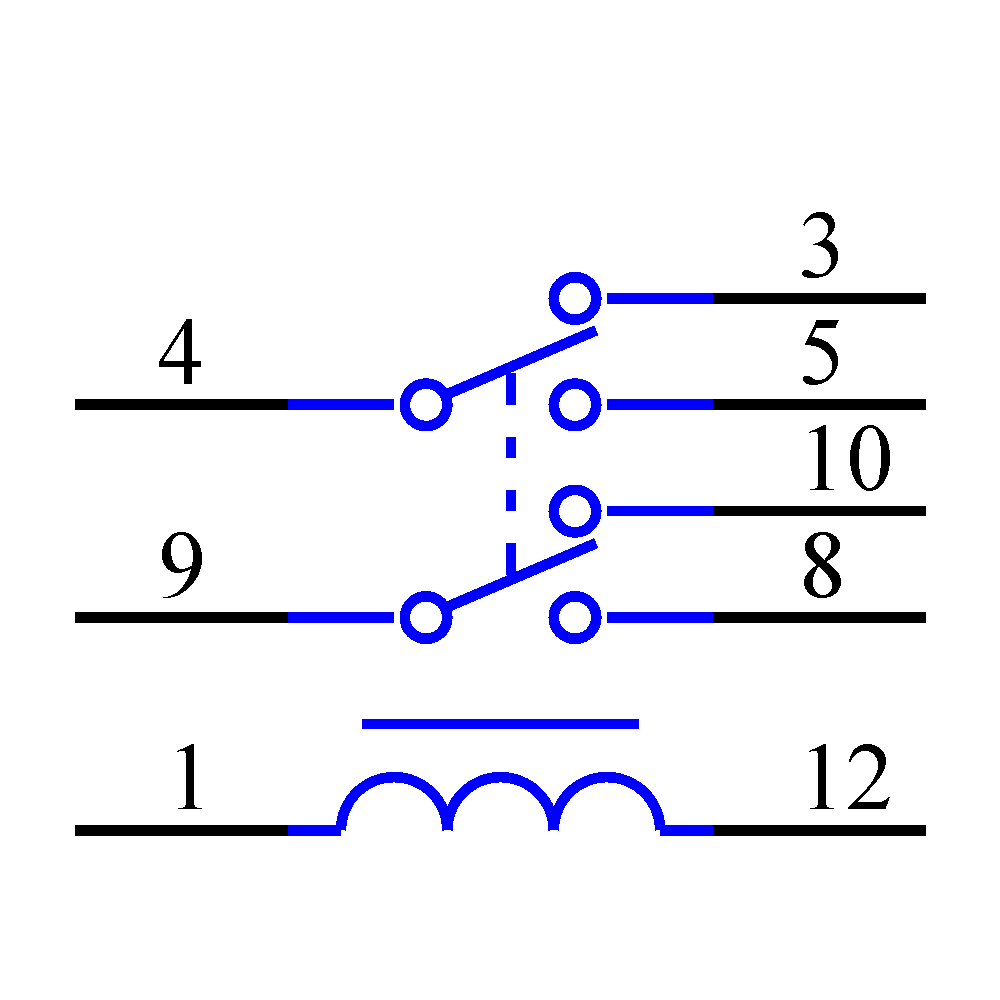

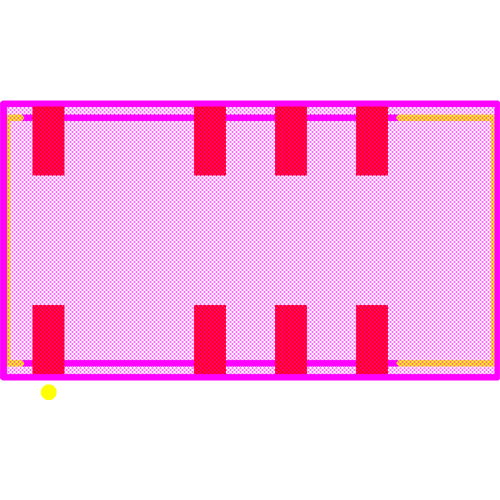

Technical Details
| Ambient Temperature Range High | 85°C |
| Coil Current | 12mA |
| Coil Power | 140mW |
| Coil Resistance | 1.028kΩ |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 9V |
| Contact Current Rating | 2A |
| Contact Material | Silver |
| Contact Plating | Gold |
| Contact Resistance | 100mΩ |
| Current Rating | 2A |
| Export Control Classification Number (ECCN) Code | EAR99 |
| Electrical Life | 100kcycles |
| Height | 8.2mm |
| Harmonized Tariff Schedule (HTS) Code | 8536.49.00.50 |
| Insertion Loss (dB) | 0.8dB |
| Insulation Resistance | 1GΩ |
| Introduction Date | 2005-10-25 |
| Lead Free | Lead Free |
| Length | 15mm |
| Lifecycle Status | Production |
| Max Current Rating | 2A |
| Max Operating Temperature | 85°C |
| Max Voltage Rating (DC) | 220V |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Contacts | 2 |
| Number of Pins | 8 |
| Number of Terminals | 8 |
| Operate Time | 4ms |
| Packaging | Tape and Reel |
| Power Consumption | 140mW |
| REACH SVHC | Yes |
| Relay Type | Telecom |
| Release Time | 4ms |
| Response Time | 4ms |
| RoHS | Compliant |
| Sealable | WATER PROOF |
| Switching Current | 2A |
| Termination | Gull Wing |
| Throw Configuration | DPDT |
| Width | 7.4mm |
Compliance
RoHS : Unconfirmed
REACH SVHC : Yes
