Panasonic - TXS2-12V

TXS2-12V - Panasonic

Electromechanical Relay 12VDC 2.88KOhm 1A DPDT (15x7.4x8.2)mm THT Ultra High Sensitivity Relay

 Datasheets

Technical Details

Ambient Temperature Range High 70°C
Approvals CSA, UL
Case/Package DIP
Coil Current 4mA
Coil Power 50mW
Coil Resistance 2.88kΩ
Coil Type Non-Latching
Coil Voltage (DC) 9.6V
Contact Current Rating 1A
Contact Material Silver
Contact Plating Gold
Contact Resistance 100mΩ
Current Rating 1A
Depth 7.4mm
Electrical Life 200kcycles
Height 8.2mm
Insertion Loss (dB) 0.8dB
Insulation Resistance 1GΩ
Lead Free Lead Free
Length 15mm
Lifecycle Status Production
Max Current Rating 1A
Max Operating Temperature 70°C
Max Voltage Rating (DC) 110V
Min Operating Temperature -40°C
Mount PCB, Through Hole
Number of Contacts 2
Number of Pins 8
Number of Terminals 8
Operate Time 5ms
Power Consumption 50mW
Power Rating 30W
Radiation Hardening No
REACH SVHC Yes
Relay Type General Purpose
Release Time 5ms
Response Time 5ms
RoHS Compliant
Switching Current 1A
Termination PC Pin
Throw Configuration DPDT
Type Electromechanical
Voltage Rating (DC) 110V
Weight 2g

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

Panasonic TXS2-12V | Future Electronics

Future Electronics

Datasheets

 Farnell
 Future Electronics
 RS

Lifecycle Status Indicator

   Production

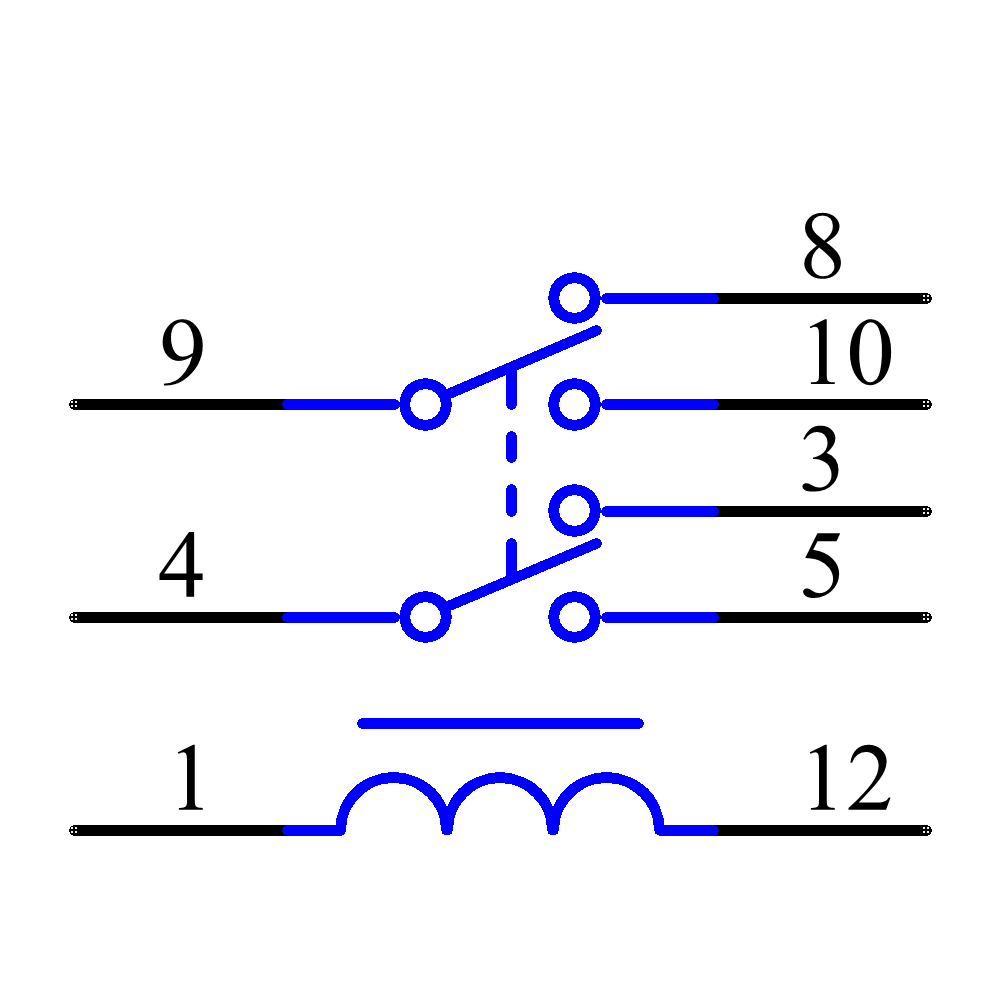

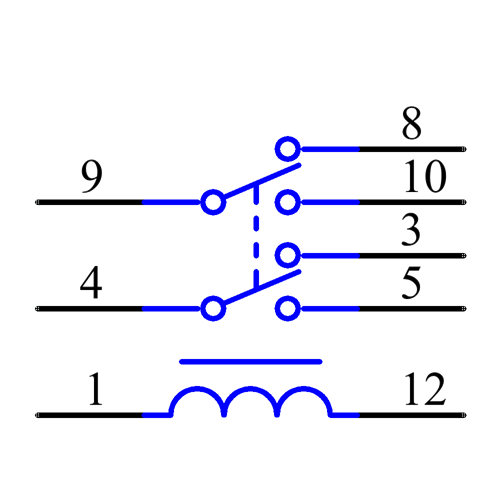

Symbol

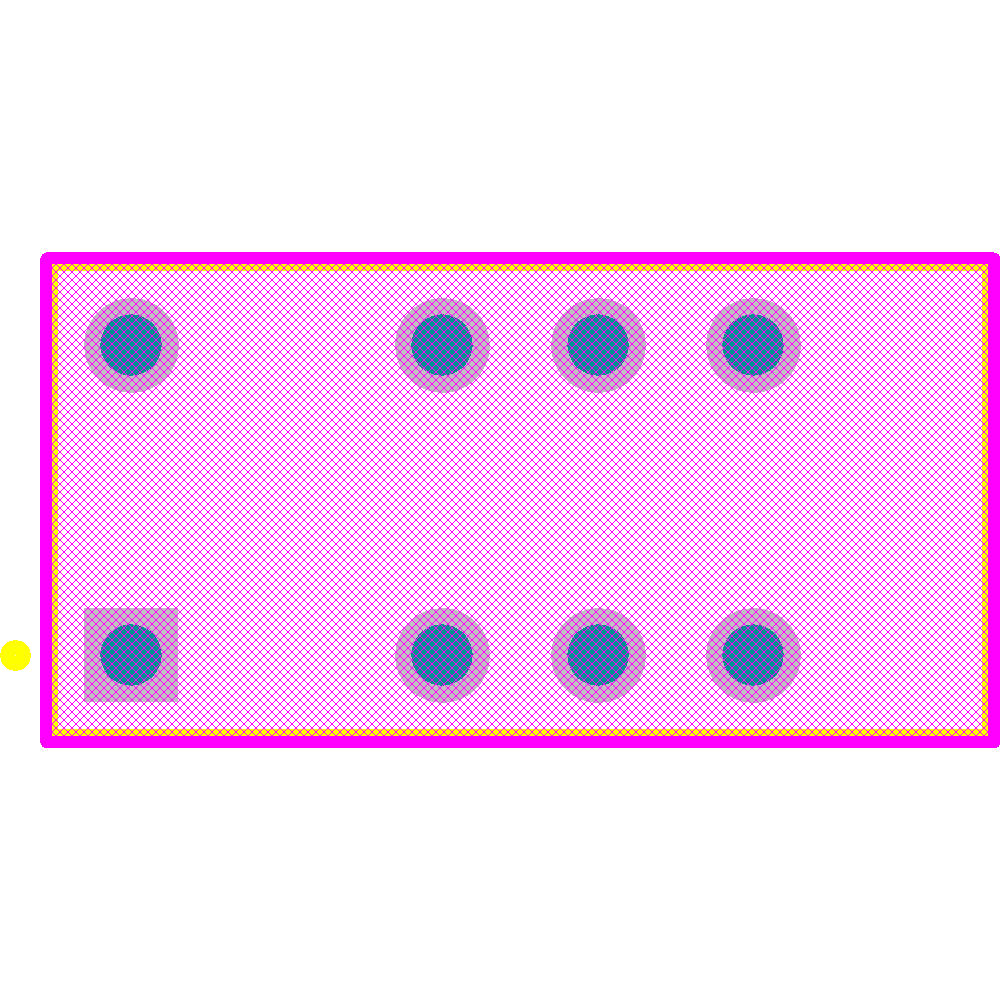

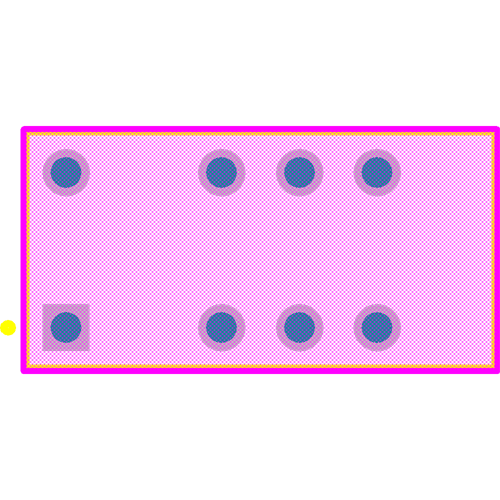

Footprint
