Sensors > Motion Sensors > Accelerometers

IIS328DQTR - STMicroelectronics

High Performance Low power 3 axis accelerometer for industrial applications

Technical Details

Axis	X, Y, Z
Bandwidth	500Hz
Case/Package	QFN
China RoHS	Compliant
Country of Origin	South Korea
Export Control Classification Number (ECCN) Code	EAR99
Height	1.85mm
Height - Seated (Max)	1.85mm
Introduction Date	2015-04-21
Lead Free	Lead Free
Length	4mm
Lifecycle Status	Production
Max Operating Temperature	105°C
Max Supply Voltage	3.6V
Min Operating Temperature	-40°C
Min Supply Voltage	2.16V
Mount	Surface Mount
Number of Circuits	1
Number of Pins	24
Number of Terminals	24
Operating Supply Current	250µA
Operating Supply Voltage	3.3V
Output Type	Digital
REACH SVHC	Yes
RoHS	Compliant
Schedule B	8542390000, 8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|8542390000\|85
Temperature Grade	Industrial
Terminal Pitch	500µm
Width	4mm

Compliance

RoHS : Unconfirmed

REACH SVHC : Yes

Images

STMicroelectronics IIS328DQTR | Newark

Newark

Datasheets

Lifecycle Status Indicator

Production

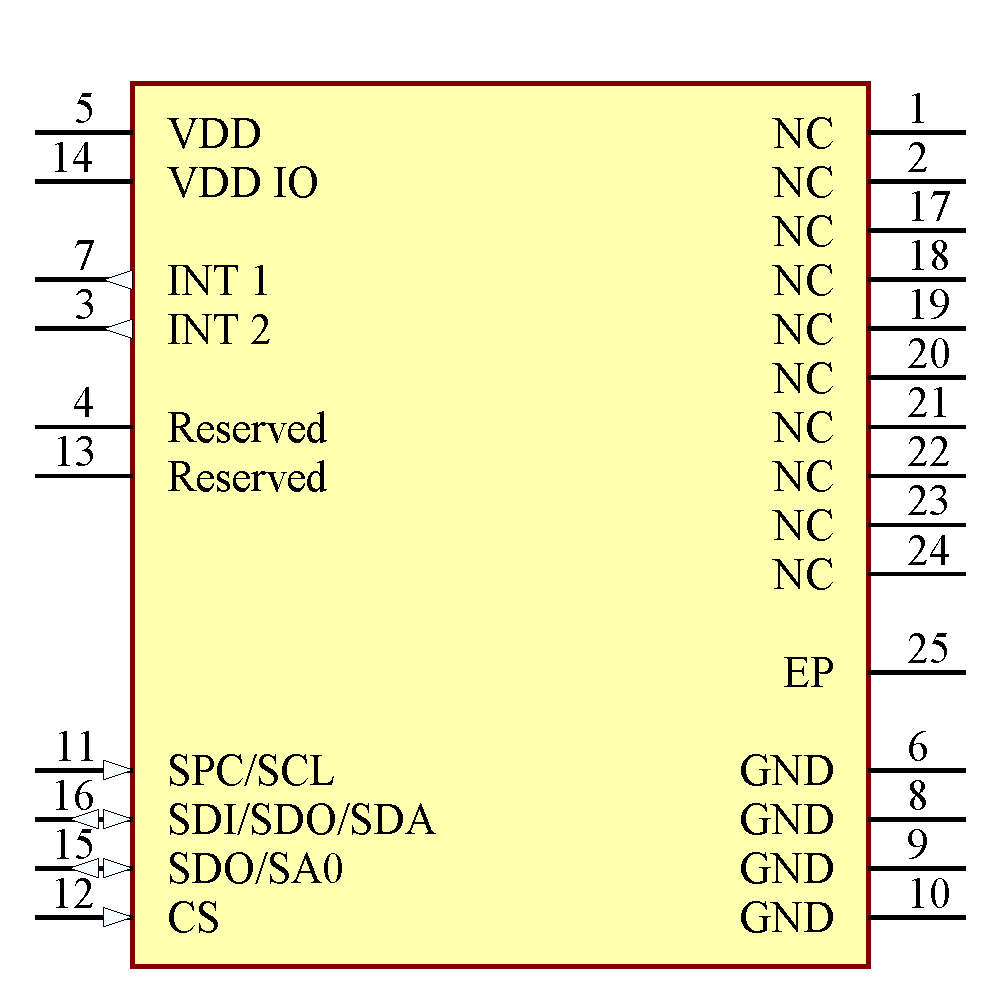

Symbol

IIS328DQTR Symbol - STMicroelectronics

IIS328DQTR Symbol - STMicroelectronics

IIS328DQTR Symbol - STMicroelectronics

IIS328DQTR Symbol - STMicroelectronics

‹ ›

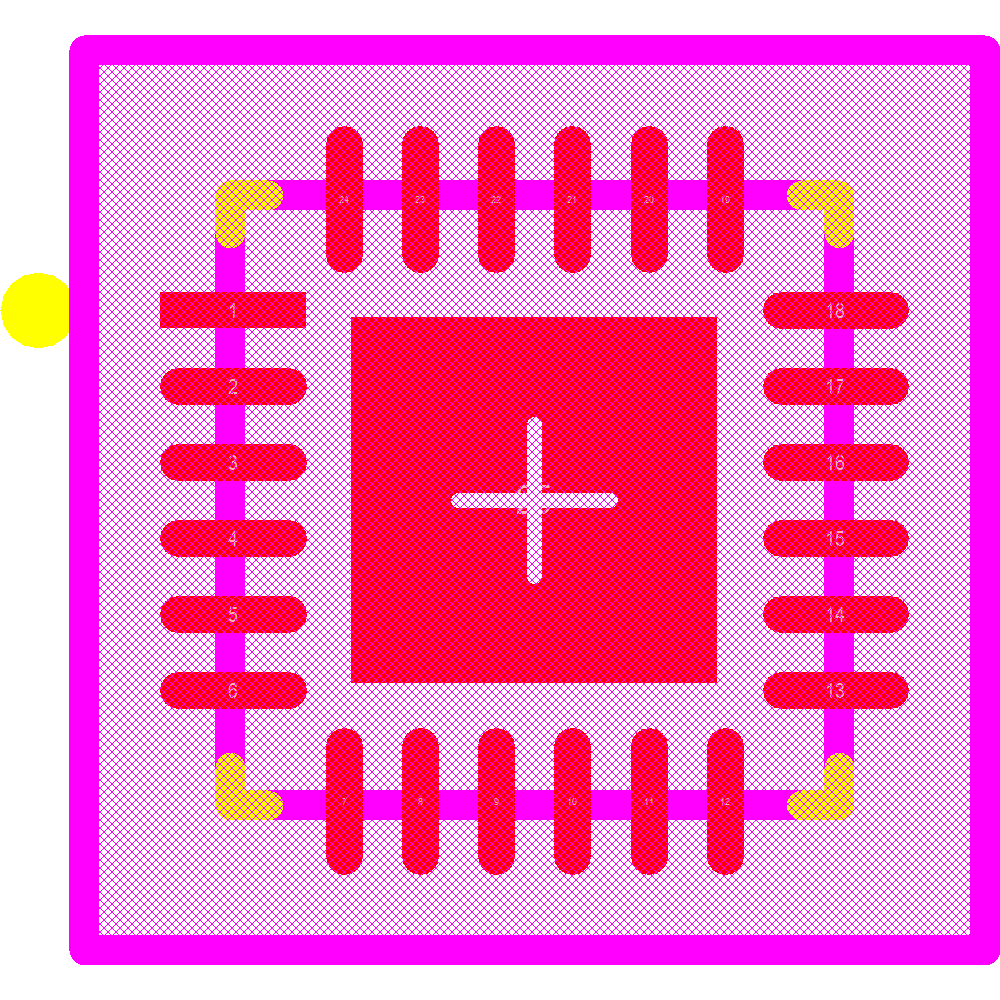

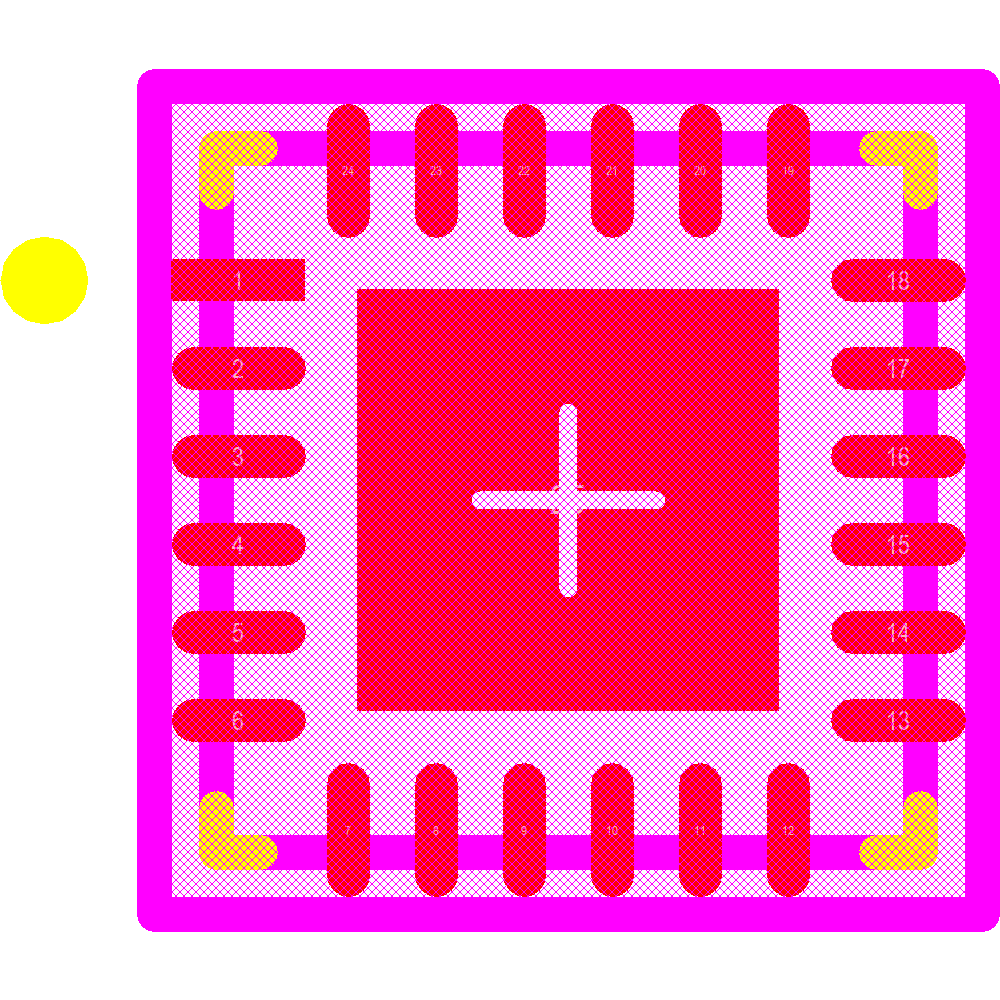

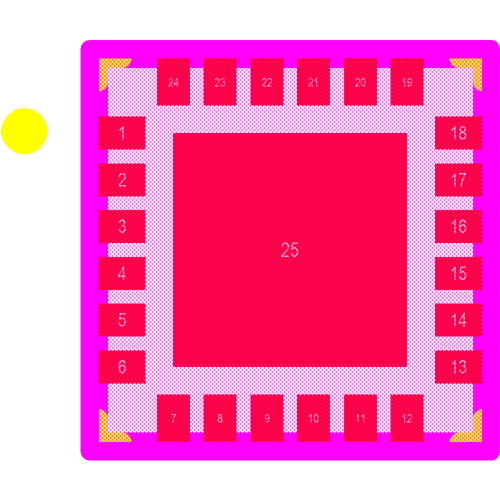

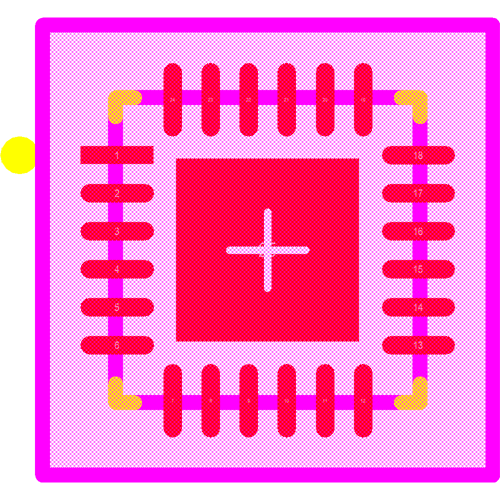

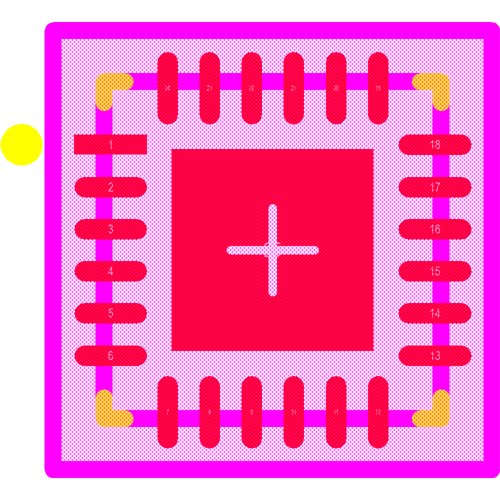

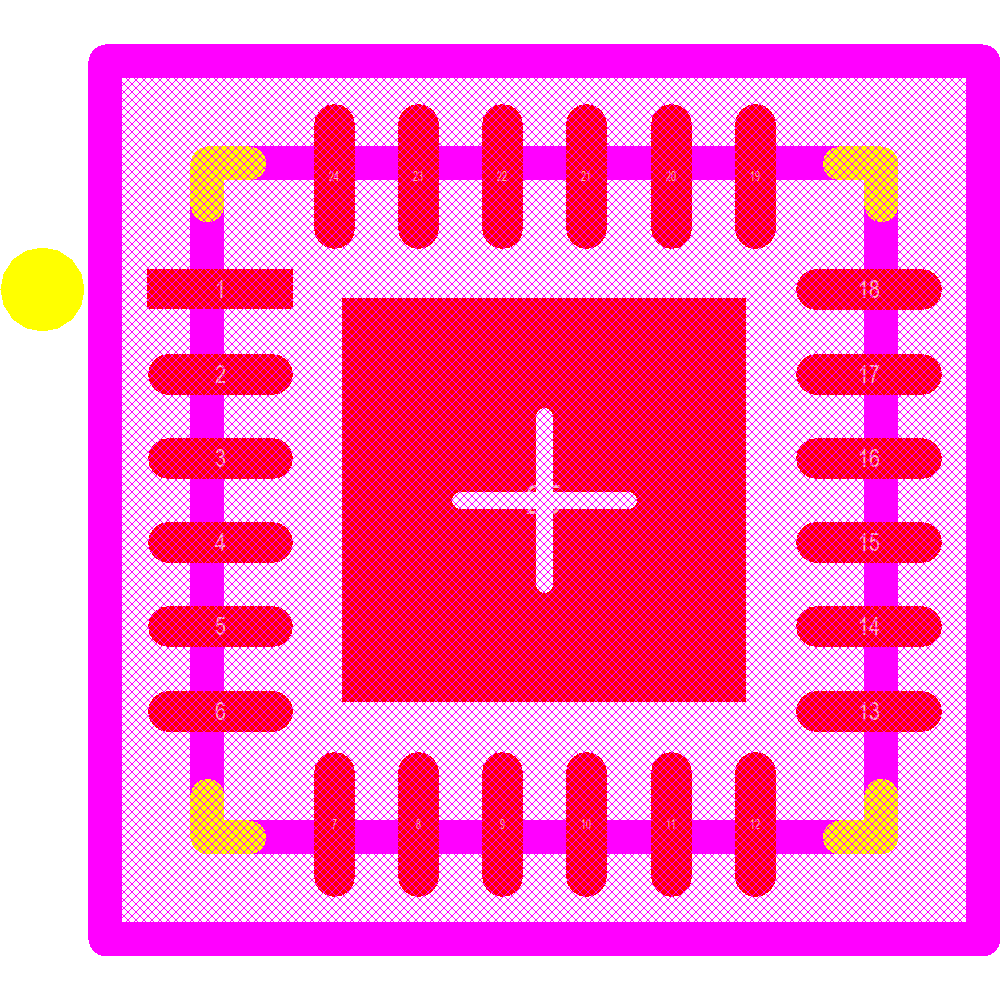

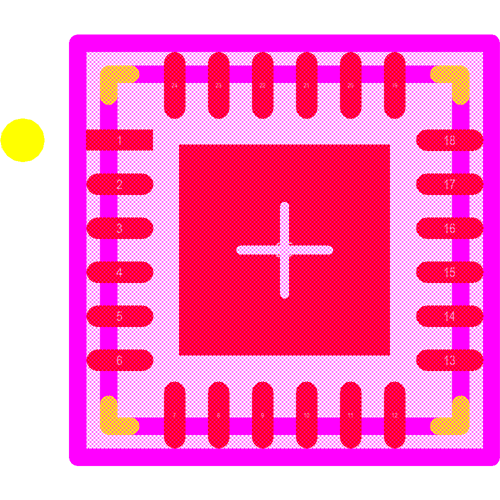

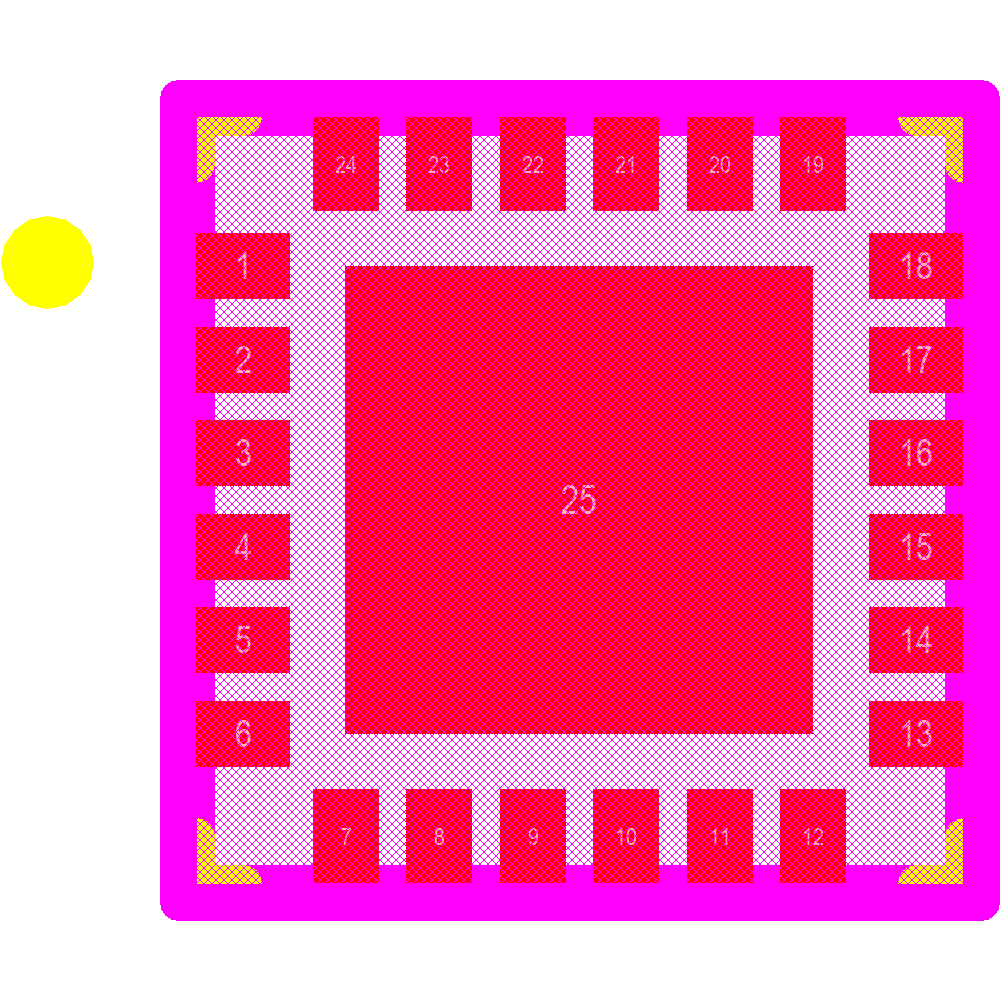

Footprint

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

IIS328DQTR Footprint - STMicroelectronics

‹ ›

Alternatives (Possible Substitutes)

Manufacturer	Manufacturer Part No.	Lifecycle Status Indicator	Confidence
STMicroelectronics	AIS328DQ	Obsolete
STMicroelectronics	AIS328DQTR	Production
STMicroelectronics	IIS328DQ	Obsolete
