Electromechanical  >  Relays  >  Power Relays

TE Connectivity - 1-1393239-3

1-1393239-3 - TE Connectivity

Electromechanical Relay SPDT 12A 24VDC 1.44KOhm Through Hole

 Datasheets

Technical Details

Ambient Temperature Range High 85°C
China RoHS Compliant
Coil Current 17mA
Coil Power 400mW
Coil Resistance 1.44kΩ
Coil Type Non-Latching
Coil Voltage (DC) 16.8V
Contact Current Rating 12A
Contact Material Silver
Contact Voltage Rating (AC) 400V
Current Rating 12A
Depth 12.7mm
Dropout Voltage 2.4V
Export Control Classification Number (ECCN) Code EAR99
Electrical Life 6kcycles
ELV Compliant
Height 15.7mm
Harmonized Tariff Schedule (HTS) Code 8536.41.00.50
Introduction Date 2005-06-08
Lead Free Lead Free
Length 29mm
Lifecycle Status Production
Manufacturer Lifecycle Status ACTIVE
Max Current Rating 12A
Max Operating Temperature 85°C
Max Voltage Rating (AC) 400V
Max Voltage Rating (DC) 30V
Min Operating Temperature -40°C
Mount Through Hole
Number of Contacts 1
Number of Pins 5
Number of Terminals 5
Operate Time 8ms
Packaging Carton
Radiation Hardening No
Ratings IP54
REACH SVHC Yes
Release Time 6ms
Response Time 8ms
RoHS Compliant
Sealable RT2
Switching Capacity 3kW
Switching Current 12A
Termination PC Pin
Throw Configuration SPDT
Weight 14g

Compliance

   RoHS : Unconfirmed
   Radiation Hardening : No
   REACH SVHC : Yes

Images

TE Connectivity 1-1393239-3 | Onlinecomponents.com

Onlinecomponents.com

Datasheets

 Master Electronics
 Master Electronics
 Onlinecomponents.com

Lifecycle Status Indicator

   Production
Symbol

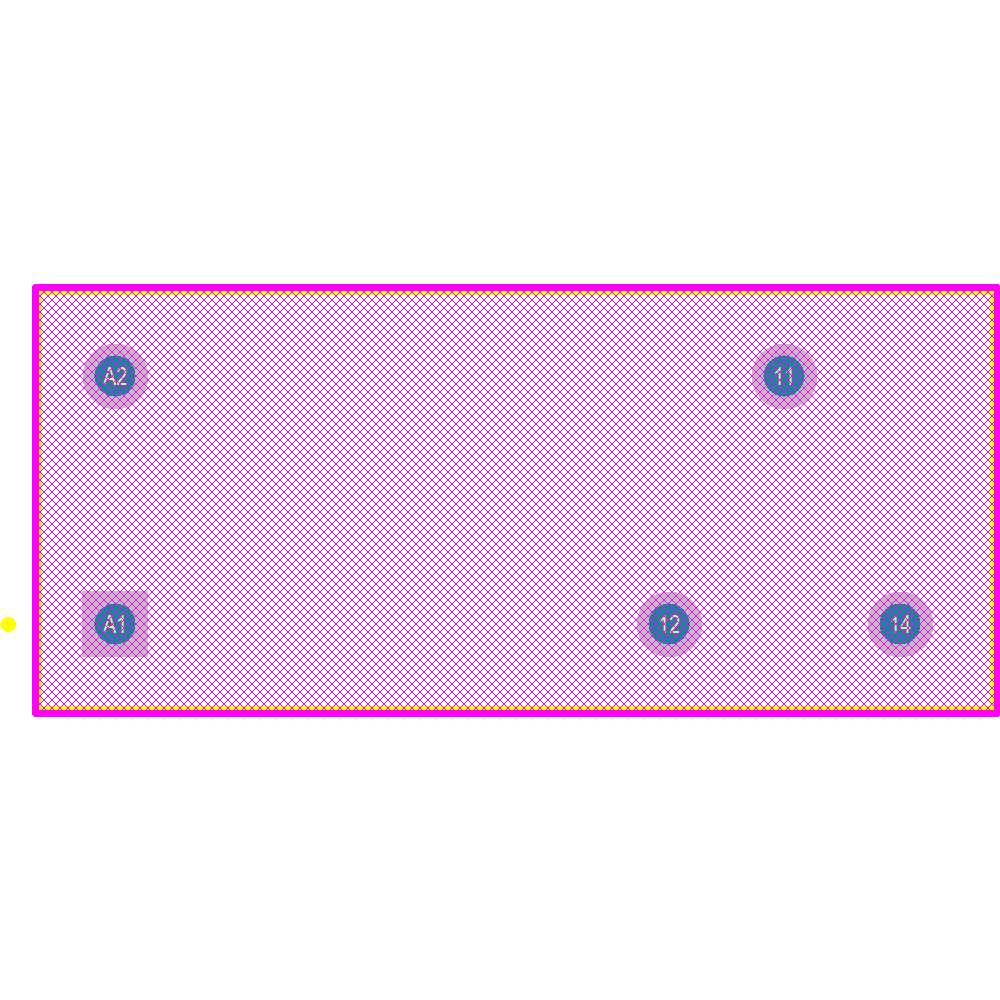

Footprint

Alternatives (Possible Substitutes)

Manufacturer Manufacturer Part No. Lifecycle Status Indicator Confidence
TE Connectivity / AMP
1393239-9
Production
TE Connectivity
7-1393239-6
Production
TE Connectivity
7-1393239-5
Production
TE Connectivity
5-1393239-4
Production
TE Connectivity
1415539-4
Production
TE Connectivity / AMP
2-1393239-1
Production
TE Connectivity
6-1393238-9
Production
TE Connectivity / AMP
5-1833002-0
Obsolete
TE Connectivity
7-1415538-6
Production
TE Connectivity
1649328-4
Production

See more alternatives See less alternatives
